Accessories for Left Cylinder Head of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

Lamborghini Diablo VT (1993-1998) - Accessories for Left Cylinder Head

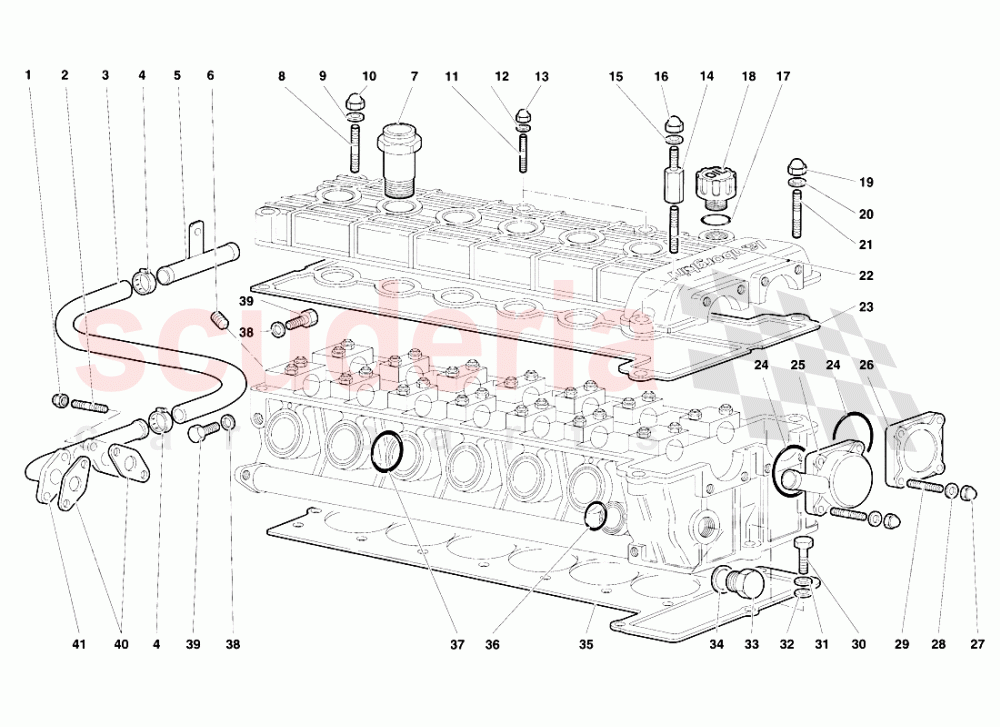

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	4
002	8300610	STUD BOLT	8300610 STUD BOLT PRIGIONIERO	$24.62 MSRP: ~~25.65~~ (4% off)	4
003	410819370	Sleeve for Auxiliary Water Pump	410819370 Sleeve for Auxiliary Water Pump TUBO IN GOMMA	$64.90	1
004	8832003	CLAMP IN STOCK	8832003 CLAMP FASCETTA IN STOCK	$44.10	2
005	1730064	CONNECTION	1730064 CONNECTION GIUNZIONE INTERMEDIA	$23.61 MSRP: ~~23.90~~ (1.2% off)	1
006	8700852	SCREW	8700852 SCREW GRAND	$0.46 MSRP: ~~7.31~~ (93.7% off)	1
007	1120857	UNION (until car 12957)	1120857 UNION (until car 12957) BOCCHETTONE (fino alia 12957)	$152.63	6
008	8300650	STUD BOLT	8300650 STUD BOLT PRIGIONIERO	$12.05 MSRP: ~~12.55~~ (4% off)	1
009	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	1
010	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	1
011	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	$4.96 MSRP: ~~5.10~~ (2.7% off)	2
012	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	2
013	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	1
014	1128397	STUD	1128397 STUD COLONNETTA	$35.30	1
015	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	1
016	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	1
017	8602801	SEAL IN STOCK	8602801 SEAL ANELLO TENUTA IN STOCK	$3.85	1
018	1128555	PLUG	1128555 PLUG TAPPO	-	1	Enquire
019	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	1
020	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	1
021	8300651	STUD BOLT	8300651 STUD BOLT PRIGIONIERO	$11.87 MSRP: ~~12.30~~ (3.5% off)	1
022	8300637	STUD BOLT	8300637 STUD BOLT PRIGIONIERO	$14.35 MSRP: ~~15.00~~ (4.3% off)	1
023	1120813	GASKET	1120813 GASKET GUARNIZIONE	$83.01	1
024	8606205	O-Ring	8606205 O-Ring ANELLO TENUTA	$4.29	2
025	1133383	VENT PIPE	1133383 VENT PIPE TUBO Dl SFIATO	$173.68 MSRP: ~~176.00~~ (1.3% off)	1
026	1114502	COVER	1114502 COVER COPERCHIO	$189.21	1
027	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	8
028	8400620	WASHER	8400620 WASHER RONDELLA	$1.50 MSRP: ~~7.38~~ (79.7% off)	8
029	8300601	STUD BOLT	8300601 STUD BOLT PRIGIONIERO	$8.56	8
030	8100807	SCREW	8100807 SCREW VITE	$0.83 MSRP: ~~7.27~~ (88.6% off)	1
031	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.40	1
032	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.47 MSRP: ~~7.15~~ (79.4% off)	1
033	7M103035	PLUG	7M103035 PLUG	$62.89	1
034	8402609	WASHER	8402609 WASHER RONDELLA	-	1	Enquire
035	11000988	Gasket IN STOCK	11000988 Gasket GUARNIZIONE TESTA IN STOCK	$405.18	1
036	8603503	SEAL RING IN STOCK	8603503 SEAL RING ANELLO TENUTA IN STOCK	$4.16	2
037	8604703	SEAL RING	8604703 SEAL RING ANELLO TENUTA	$8.17 MSRP: ~~8.45~~ (3.3% off)	6
038	8400802	WASHER	8400802 WASHER RONDELLA	$1.50 MSRP: ~~7.27~~ (79.4% off)	2
039	8100839	SCREW	8100839 SCREW VITE	$0.46 MSRP: ~~7.31~~ (93.7% off)	2
040	1121254	GASKET	1121254 GASKET GUARNIZIONE	$9.33	2
041	1734153	PIPE	1734153 PIPE TUBO	$742.57	1
