Bumpers of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

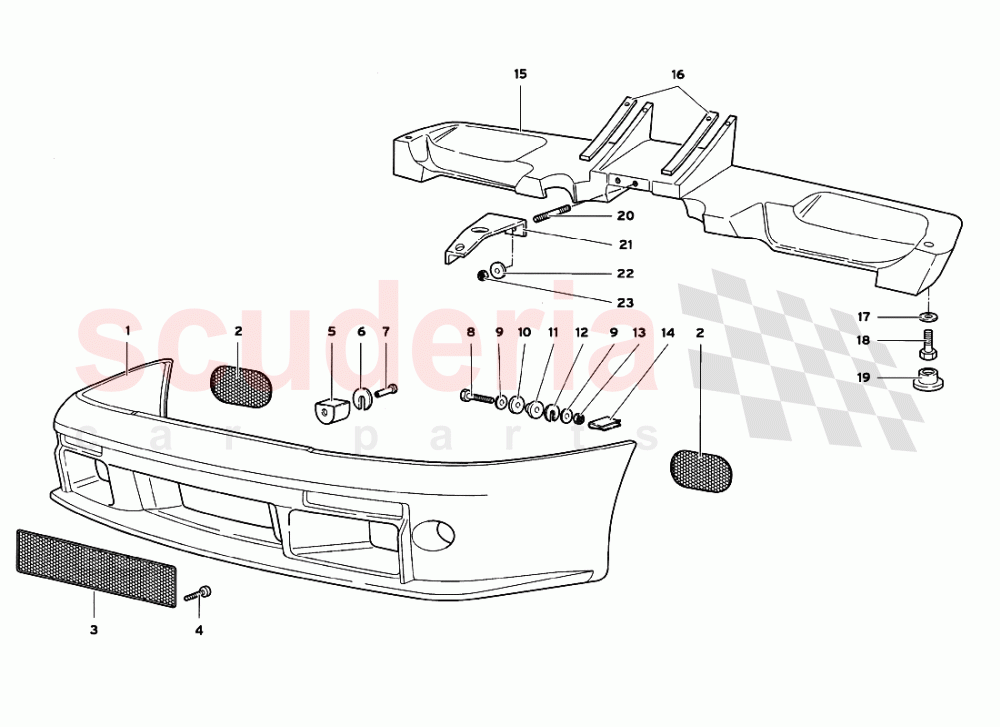

Lamborghini Diablo GT (1999-2000) - Bumpers

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	93004623	FRONT BUMPER ASSY	93004623 FRONT BUMPER ASSY	-	1	Enquire
002	93004855	FRONT GRILL	93004855 FRONT GRILL	-	2	Enquire
003	93004856	FRONT BUMPER NET	93004856 FRONT BUMPER NET RETE PARAURTI ANT.	-	1	Enquire
004	8700334	SCREW	8700334 SCREW VITE	-	4	Enquire
005	9963122	RUBBER PAD	9963122 RUBBER PAD TAMPONE COMMA	-	2	Enquire
006	9463115	SHIM	9463115 SHIM SPESSORE	-	1	Enquire
006	7063145	SHIM	7063145 SHIM use : 410807567	-	10	Enquire
007	9463117	SCREW	9463117 SCREW VITE	-	4	Enquire
008	8100807	SCREW	8100807 SCREW VITE	-	2	Enquire
009	WHT001942	WASHER	WHT001942 WASHER RONDELLA	-	4	Enquire
010	7063142	WASHER	7063142 WASHER RONDELLA	-	2	Enquire
011	9463109	WASHER	9463109 WASHER RONDELLA	-	2	Enquire
012	9463110	SPACER	9463110 SPACER DISTANZIALE	-	2	Enquire
012	9463111	SPACER	9463111 SPACER DISTANZIALE	-	2	Enquire
013	8200804	NUT M8	8200804 NUT M8 DADO	-	2	Enquire
014	8220506	CLIP	8220506 CLIP MOLLETTA	-	14	Enquire
015	93004622	REAR BUMPER ASSY	93004622 REAR BUMPER ASSY	-	1	Enquire
016	93006473	GASKET	93006473 GASKET GUARNIZIONE	-	2	Enquire
017	N90840802	WASHER	N90840802 WASHER RONDELLA	-	2	Enquire
018	8100821	SCREW	8100821 SCREW VITE	-	2	Enquire
019	8933804	PLUG	8933804 PLUG TAPPO	-	2	Enquire
020	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	-	2	Enquire
021	93006215	SUPPORT - SUPPORTO	93006215 SUPPORT - SUPPORTO O	-	1	Enquire
022	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5 RONDELLA	-	2	Enquire
023	8200804	NUT M8	8200804 NUT M8 DADO	-	2	Enquire
