Lights of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

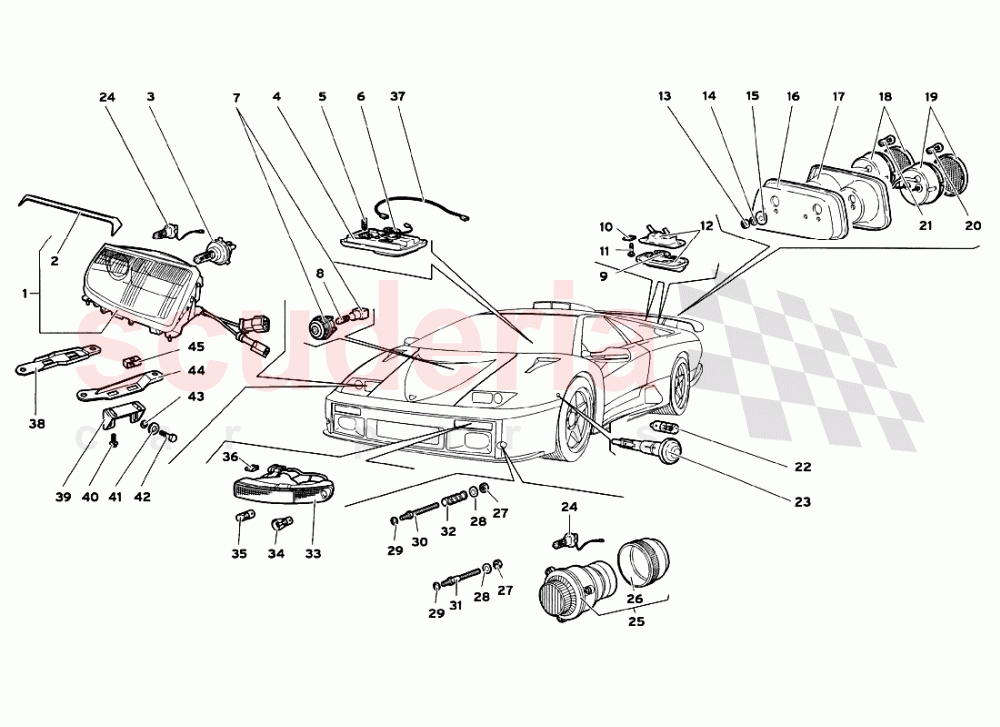

Lamborghini Diablo GT (1999-2000) - Lights

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	63004644	HEADLAMP	63004644 HEADLAMP FANALE DX	-	1	Enquire
001	63004645	HEADLAMP	63004645 HEADLAMP FANALE SX	-	1	Enquire
002	63005073	LH TRIM	63005073 LH TRIM COPERTURA SX	-	1	Enquire
002	63005072	RHTRIM	63005072 RHTRIM COPERTURA DX	-	1	Enquire
003	6329450	BULB	6329450 BULB LAMPADA	-	2	Enquire
004	6334454	CEILING LAMP	6334454 CEILING LAMP PLAFONIERA	-	1	Enquire
005	6329694	BULB	6329694 BULB LAMPADA	-	1	Enquire
006	6617095	LAMP SV8,5-8 5W	6617095 LAMP SV8,5-8 5W LAMPADA	-	1	Enquire
007	6337066	LAMP	6337066 LAMP PLAFONIERA BAULE	-	1	Enquire
008	N0177522	LAMP 12V/3W	N0177522 LAMP 12V/3W LAMPADA	-	1	Enquire
009	6617095	LAMP SV8,5-8 5W	6617095 LAMP SV8,5-8 5W LAMPADA	-	2	Enquire
010	WHT003424	CLIP	WHT003424 CLIP MOLLETTA	-	4	Enquire
011	8700445	SCREW	8700445 SCREW VITE	-	4	Enquire
012	6328344	LICENCE PLATE LAMP	6328344 LICENCE PLATE LAMP FANALE TARGA	-	2	Enquire
013	N01100632	NUT M6	N01100632 NUT M6 DADO	-	8	Enquire
014	8410611	WASHER	8410611 WASHER RONDELLA	-	8	Enquire
015	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	8	Enquire
016	76004579	LEFT PANEL	76004579 LEFT PANEL PANNELLO SX	-	1	Enquire
016	76004578	RIGHT PANEL	76004578 RIGHT PANEL PANNELLO DX	-	1	Enquire
017	76004577	LEFT FRAME	76004577 LEFT FRAME CORNICE SX	-	1	Enquire
017	76004576	RIGHT FRAME	76004576 RIGHT FRAME CORNICE DX	-	1	Enquire
018	63004502	TAIL LAMP/BRAKE L	63004502 TAIL LAMP/BRAKE L FANALE POST. (POSIZIONE E STOP)	-	2	Enquire
019	63004504	TAIL LAMP/BRAKE L.	63004504 TAIL LAMP/BRAKE L. FANALE POST. RETROMARCIA (DX)	-	1	Enquire
019	63004503	TAIL LAMP/BRAKE L.	63004503 TAIL LAMP/BRAKE L. FANALE POST. RETRONEBBIA (SX)	-	1	Enquire
020	6617094	LAMP BA 15S 21W	6617094 LAMP BA 15S 21W LAMPADA	-	4	Enquire
021	6617091	LAMP 15D 32220 5/21W	6617091 LAMP 15D 32220 5/21W LAMPADA	-	2	Enquire
022	6329897	BULB	6329897 BULB LAMPADA	-	2	Enquire
023	R1050004	KIT 2 DIRECTION INDICATORS	R1050004 KIT 2 DIRECTION INDICATORS use (0R1050004 - sets of 2 pieces)	-	2	Enquire
024	6329695	BULB	6329695 BULB LAMPADA	-	4	Enquire
025	6338269	FOG LAMP	6338269 FOG LAMP PROIETTORE	-	2	Enquire
026	6338270	RUBBER CAP	6338270 RUBBER CAP CALOTTA IN COMMA	-	2	Enquire
027	N0211963	NUT	N0211963 NUT DADO	-	6	Enquire
028	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	-	6	Enquire
029	8410508	WASHER	8410508 WASHER RONDELLA	-	6	Enquire
030	6337297	STUD	6337297 STUD COLONNETTA Dl REGOLAZIONE	-	4	Enquire
031	6337296	STUD	6337296 STUD COLONNETTA Dl FISSAGGIO	-	2	Enquire
032	2403369	SPRING	2403369 SPRING MOLLA	-	4	Enquire
033	63005048	RH HEADLIGHT	63005048 RH HEADLIGHT FANALE ANT. DX	-	1	Enquire
033	63005047	LH HEADLIGHT	63005047 LH HEADLIGHT FANALE ANT. SX	-	1	Enquire
034	6617094	LAMP BA 15S 21W	6617094 LAMP BA 15S 21W LAMPADA	-	2	Enquire
035	6329696	BULB	6329696 BULB LAMPADA	-	2	Enquire
036	7009217	FASTENING CLIP	7009217 FASTENING CLIP MOLLETTA Dl FISSAGGIO	-	4	Enquire
037	61002135	PASSENGER COMPARTMENT WIRING	61002135 PASSENGER COMPARTMENT WIRING CABLAGGIO PLAFONIERA	-	1	Enquire
038	41003907	BRACKET	41003907 BRACKET STAFFA	-	2	Enquire
039	41003904	BRACKET	41003904 BRACKET STAFFA	-	4	Enquire
040	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	-	8	Enquire
041	WHT000771	WASHER	WHT000771 WASHER RONDELLA	-	8	Enquire
042	8100830	SCREW	8100830 SCREW VITE	-	8	Enquire
043	N90840802	WASHER	N90840802 WASHER RONDELLA	-	8	Enquire
044	41003906	RH BRACKET	41003906 RH BRACKET STAFFA DX	-	1	Enquire
044	41003905	LH BRACKET	41003905 LH BRACKET STAFFA SX	-	1	Enquire
045	WHT003673	CLIP	WHT003673 CLIP replaces: 008220606	-	8	Enquire
045	8220606	FASTENING CLIP	8220606 FASTENING CLIP not as spare part - use part number: WHT 003673	-	8	Enquire
