Front Body Elements Front Body Elements of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

Lamborghini Diablo GT (1999-2000) - Front Body Elements Front Body Elements

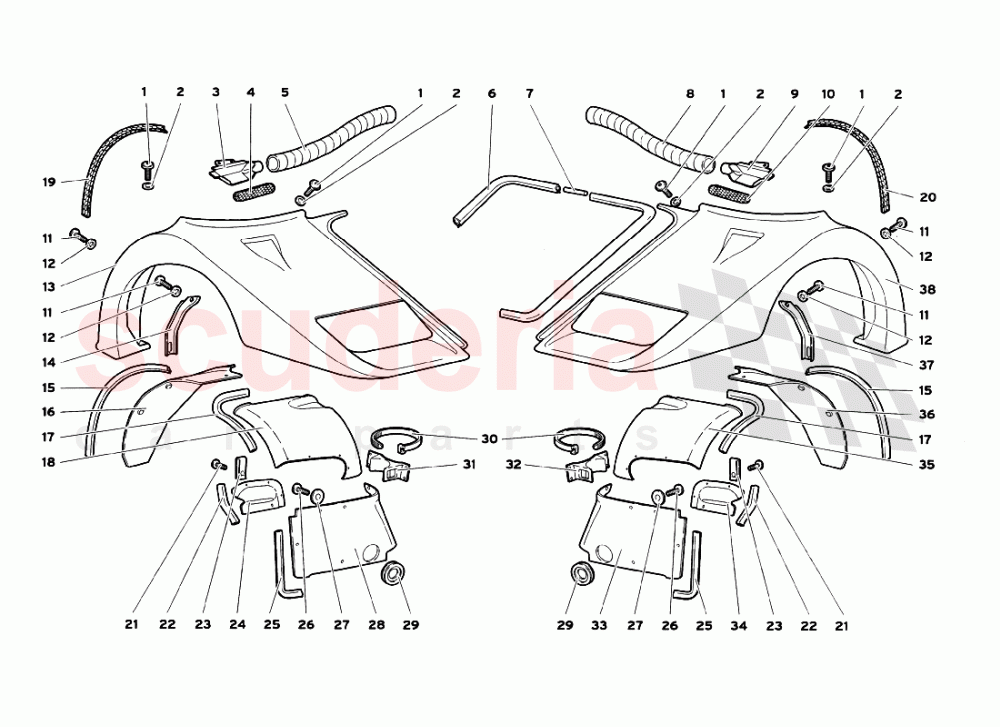

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8700692	SCREW	8700692 SCREW VITE	$0.21 MSRP: ~~7.36~~ (97.1% off)	14
002	8400629	WASHER	8400629 WASHER RONDELLA	$1.44 MSRP: ~~7.11~~ (79.7% off)	14
003	74004716	RIGHT AIR INTAKE	74004716 RIGHT AIR INTAKE PRESA D'ARIA DX	$166.88	1
004	74004718	RIGHT NET	74004718 RIGHT NET RETE DX	$85.98	1
005	74005416	RIGHT PIPE	74005416 RIGHT PIPE TUBO DX	$107.94	1
006	9490111	GASKET	9490111 GASKET GUARNIZIONE	$44.74	1
007	9490112	UNION	9490112 UNION ELEMENTO COLLEGAMENTO	$23.50 MSRP: ~~23.80~~ (1.3% off)	1
008	74005417	LEFT PIPE	74005417 LEFT PIPE TUBO SX	$107.94	1
009	74004717	LEFT AIR INTAKE	74004717 LEFT AIR INTAKE PRESA D'ARIA SX	$166.88	1
010	74004719	LEFT NET	74004719 LEFT NET RETE SX	-	1	Enquire
011	8100601	SCREW	8100601 SCREW VITE	$0.27	10
012	N01152427	WASHER	N01152427 WASHER RONDELLA	$0.28	10
013	66004662	R. FR.MUDGU./FEN.	66004662 R. FR.MUDGU./FEN. PARAFANGO ANT. DX	$11,275.81	1
014	9410109	RIGHT BRACKET	9410109 RIGHT BRACKET STAFFA DX	$259.13	1
015	68006620	GASKET	68006620 GASKET GUARNIZIONE	$86.34	2
016	68006563	FR. WHEELBOX	68006563 FR. WHEELBOX PASSARUOTA	$731.00	1
017	68003623	GASKET	68003623 GASKET GUARNIZIONE	$23.71	2
018	68004700	FR. WHEELBOX	68004700 FR. WHEELBOX PASSARUOTA ANT. DX SUP.	$290.33	1
019	74005376	RIGHT NET	74005376 RIGHT NET RETE DX	$203.49	1
020	74005377	LEFT NET	74005377 LEFT NET RETE SX	$277.31	1
021	WHT003066	SCREW	WHT003066 SCREW	$13.97	6
022	68003622	GASKET	68003622 GASKET GUARNIZIONE	$9.79	2
023	WHT000916A	CLIP	WHT000916A CLIP MOLLETTA	$15.41	8
024	68004704	RIGHT LID INSPECTION	68004704 RIGHT LID INSPECTION SPORTELLO ISPEZIONE DX	$216.41	1
025	9411408	GASKET	9411408 GASKET GUARNIZIONE	$16.57 MSRP: ~~16.80~~ (1.4% off)	2
026	WHT003066	SCREW	WHT003066 SCREW	$13.97	16
027	N91115501	WASHER	N91115501 WASHER RONDELLA	$1.25 MSRP: ~~7.33~~ (82.9% off)	18
028	68004698	RIGHT FR. WHEELBOX	68004698 RIGHT FR. WHEELBOX PASSARUOTA ANT. DX	$431.35	1
029	9411418	GASKET	9411418 GASKET GUARNIZIONE	$34.02	2
030	8830306	CLAMP	8830306 CLAMP FASCETTA	$3.25	2
031	410805890	RIGHT SUPPORT	410805890 RIGHT SUPPORT CAVALLOTTO DX	$327.29	1
032	9411422	LEFT RETAINER	9411422 LEFT RETAINER CAVALLOTTO SX	-	1	Enquire
033	68004699	LEFT FR. WHEELBOX	68004699 LEFT FR. WHEELBOX PASSARUOTA ANT. SX	$290.33	1
034	68004705	LEFT LID INSPECTION	68004705 LEFT LID INSPECTION SPORTELLO ISPEZIONE SX	$259.32	1
035	68004701	FR. WHEELBOX	68004701 FR. WHEELBOX PASSARUOTA ANT. SX SUP.	$533.50	1
036	68006564	FR. WHEELBOX	68006564 FR. WHEELBOX PASSARUOTA	$731.00	1
037	9410110	LEFT BRACKET	9410110 LEFT BRACKET STAFFA SX	$259.13	1
038	66004663	LEFT FR.MUDGU./FEN.	66004663 LEFT FR.MUDGU./FEN. PARAFANGO ANT. SX	$11,275.81	1
