Front Hood of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

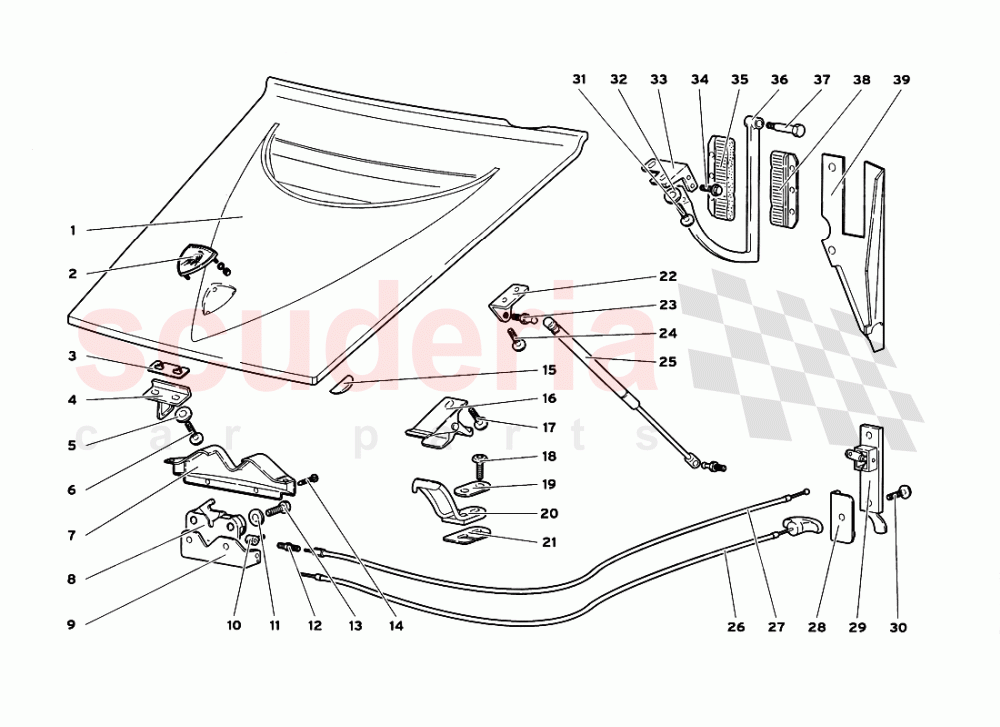

Lamborghini Diablo GT (1999-2000) - Front Hood

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	79004667	FRONT BONNET	79004667 FRONT BONNET COFANO ANTERIORE	-	1	Enquire
002	6127985	ORNAMENT	6127985 ORNAMENT SCUDO LAMBORGHINI	-	1	Enquire
003	9459228	SHIM	9459228 SHIM SPESSORE	-	2	Enquire
004	79005096	LOCK STRIKER	79005096 LOCK STRIKER RISCONTRO	-	1	Enquire
005	8400627	WASHER	8400627 WASHER RONDELLA	-	2	Enquire
006	8740685	SCREW	8740685 SCREW VITE	-	2	Enquire
007	9459230	COVERING	9459230 COVERING RIVESTIMENTO	-	1	Enquire
008	9459216	LOCK	9459216 LOCK SERRATURA	-	1	Enquire
009	9459213	SPACER	9459213 SPACER DISTANZIALE	-	1	Enquire
010	9459217	CLAMP	9459217 CLAMP MORSETTO	-	1	Enquire
011	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	2	Enquire
012	9460213	ADJ/SCREW	9460213 ADJ/SCREW VITE REGISTRO	-	1	Enquire
013	8100623	SCREW	8100623 SCREW VITE	-	2	Enquire
014	WHT003065	SCREW (2,9X16)	WHT003065 SCREW (2,9X16) VITE	-	2	Enquire
015	9459108	RIGHT ELASTIC PAD	9459108 RIGHT ELASTIC PAD TASSELLO DX	-	1	Enquire
015	9459109	LEFT ELASTIC PAD	9459109 LEFT ELASTIC PAD TASSELLO SX	-	1	Enquire
016	9459208	HOOK	9459208 HOOK GANCIO	-	1	Enquire
017	8740685	SCREW	8740685 SCREW VITE	-	1	Enquire
018	8700665	SCREW	8700665 SCREW VITE	-	2	Enquire
019	9459226	PLATE	9459226 PLATE PIASTRINA	-	1	Enquire
020	9459224	LOCK STRIKER	9459224 LOCK STRIKER RISCONTRO	-	1	Enquire
021	9459225	SHIM	9459225 SHIM SPESSORE Dl REGISTRO 1 MM	-	1	Enquire
021	9459235	SHIM	9459235 SHIM SPESSORE Dl REGISTRO 2 MM	-	1	Enquire
022	9459309	BRACKET	9459309 BRACKET STAFFA	-	2	Enquire
023	9459305	BALL PIN	9459305 BALL PIN PERNO	-	4	Enquire
024	8740685	SCREW	8740685 SCREW VITE	-	4	Enquire
025	79004387	SHOCK ABSORBER	79004387 SHOCK ABSORBER MARTINETTO (ARGENTO)	-	2	Enquire
026	9459003	CABLE	9459003 CABLE CAVO EMERGENZA	-	1	Enquire
027	9459001	CABLE	9459001 CABLE CAVO APERTURA COFANO	-	1	Enquire
028	9459223	PLATE	9459223 PLATE PIASTRINA	-	1	Enquire
029	9459200	HANDLE	9459200 HANDLE MANIGLIA APERTURA COFANO	-	1	Enquire
030	8700544	SCREW	8700544 SCREW VITE	-	2	Enquire
031	8740685	SCREW	8740685 SCREW VITE	-	4	Enquire
032	8400627	WASHER	8400627 WASHER RONDELLA	-	4	Enquire
033	9459321	RIGHT SUPPORT	9459321 RIGHT SUPPORT SUPPORTO DX	-	1	Enquire
033	9459322	LEFT SUPPORT	9459322 LEFT SUPPORT SUPPORTO SX	-	1	Enquire
034	8700674	SCREW	8700674 SCREW VITE	-	4	Enquire
035	79001335	BRUSH	79001335 BRUSH SPAZZOLA	-	2	Enquire
036	79001734	RIGHT HINGE	79001734 RIGHT HINGE CERNIERA DX	-	1	Enquire
036	79001733	LEFT HINGE	79001733 LEFT HINGE CERNIERASX	-	1	Enquire
037	9459323	PIN	9459323 PIN PERNO	-	2	Enquire
038	79001336	BRUSH	79001336 BRUSH SPAZZOLA	-	2	Enquire
039	79001337	RIGHT PLATE	79001337 RIGHT PLATE PIASTRA DX	-	1	Enquire
039	79001338	LEFT PLATE	79001338 LEFT PLATE PIASTRA SX	-	1	Enquire
