Door Mechanism of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

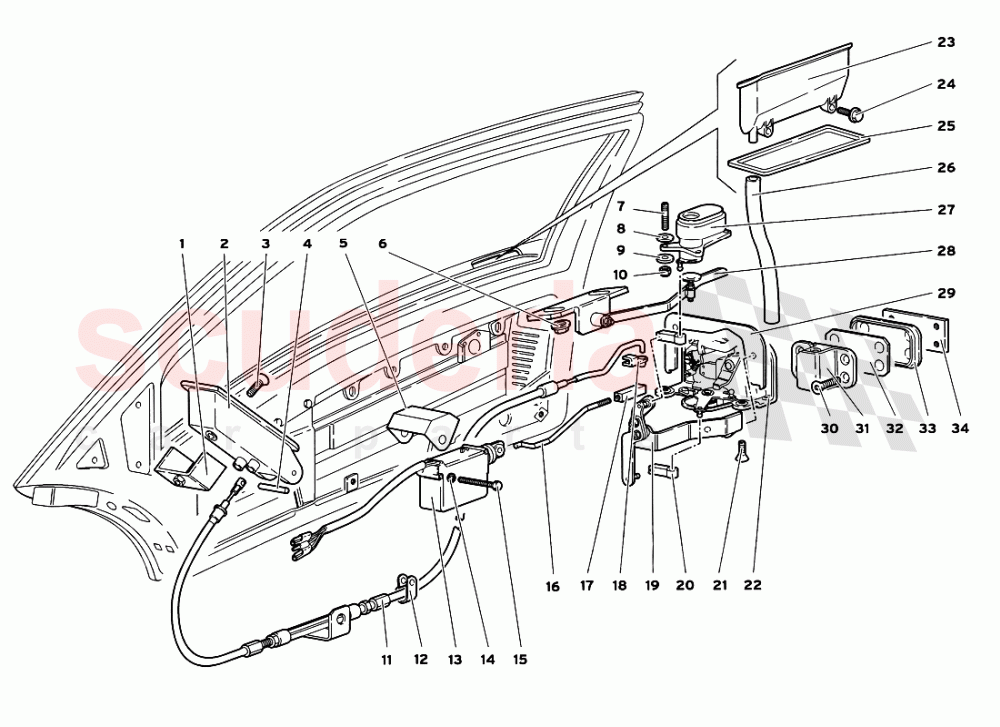

Lamborghini Diablo GT (1999-2000) - Door Mechanism

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9421274	BRACKET	9421274 BRACKET CAVALLOTTO	-	2	Enquire
002	72004757	HANDLE	72004757 HANDLE MANIGLIA	-	2	Enquire
003	8700539	SCREW	8700539 SCREW VITE	-	2	Enquire
004	8900305	PIN - SPINA	8900305 PIN - SPINA PERNO	-	2	Enquire
005	9921113	LEFT SHIELD	9921113 LEFT SHIELD PROTEZIONE SX	-	1	Enquire
005	9921112	RIGHT SHIELD	9921112 RIGHT SHIELD PROTEZIONE DX	-	1	Enquire
006	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT DADO	-	4	Enquire
007	9921221	STUD	9921221 STUD PRIGIONIERO (L=18 MM)	-	2	Enquire
007	8300403	STUD	8300403 STUD PRIGIONIERO (L=21 MM)	-	4	Enquire
008	8400401	WASHER	8400401 WASHER RONDELLA (DISTANZIALE)	-	1	Enquire
009	8400401	WASHER	8400401 WASHER RONDELLA	-	6	Enquire
010	WHT002959	CLAMPING NUT	WHT002959 CLAMPING NUT DADO	-	6	Enquire
011	9421051	LEFT CABLE	9421051 LEFT CABLE CAVO SX	-	1	Enquire
011	9421052	RIGHT CABLE	9421052 RIGHT CABLE CAVO DX	-	1	Enquire
012	8830907	STRAP	8830907 STRAP FASCETTA	-	6	Enquire
013	R1320007	LHS door actuator	R1320007 LHS door actuator	-	1	Enquire
013	R1320008	RHS door actuator	R1320008 RHS door actuator	-	1	Enquire
014	8400401	WASHER	8400401 WASHER RONDELLA	-	4	Enquire
015	8100404	SCREW	8100404 SCREW VITE	-	4	Enquire
016	9921211	LEFT TIE ROD	9921211 LEFT TIE ROD TIRANTE SX	-	1	Enquire
016	9921204	RIGHT TIE ROD	9921204 RIGHT TIE ROD TIRANTE DX	-	1	Enquire
017	7021016	PAWL	7021016 PAWL NOTTOLINO	-	2	Enquire
018	9421251	CLIP	9421251 CLIP MOLLETTA Dl AGGANCIO	-	2	Enquire
019	9921225	RIGHT IDLE LEVER	9921225 RIGHT IDLE LEVER RINVIO A LEVA DX	-	1	Enquire
019	9921226	LEFT IDLE LEVER	9921226 LEFT IDLE LEVER RINVIO A LEVA SX	-	1	Enquire
020	9421214	COUPLING	9421214 COUPLING TESTINA	-	4	Enquire
021	8700638	SCREW M6X16	8700638 SCREW M6X16 VITE	-	8	Enquire
022	410837016	RIGHT LOCK	410837016 RIGHT LOCK SERRATURA SX	-	1	Enquire
022	410837015	LEFT LOCK	410837015 LEFT LOCK SERRATURA DX	-	1	Enquire
023	9421200	RIGHT HANDLE	9421200 RIGHT HANDLE MANIGLIA DX	-	1	Enquire
023	9421201	LEFT HANDLE	9421201 LEFT HANDLE MANIGLIA SX	-	1	Enquire
024	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	-	4	Enquire
025	9421713	LEFT GASKET	9421713 LEFT GASKET GUARNIZIONESX	-	1	Enquire
025	9421712	RIGHT GASKET	9421712 RIGHT GASKET GUARNIZIONE DX	-	1	Enquire
026	9421245	PIPE	9421245 PIPE TUBO	-	2	Enquire
027	72005036	LH & RH DOOR BUTTONS	72005036 LH & RH DOOR BUTTONS	-	1	Enquire
028	9921224	LEFT IDLE LEVER	9921224 LEFT IDLE LEVER RINVIO A LEVA SX	-	1	Enquire
028	9921223	RIGHT IDLE LEVER	9921223 RIGHT IDLE LEVER RINVIO A LEVA DX	-	1	Enquire
029	9421272	LEFT GASKET	9421272 LEFT GASKET GUARNIZIONE SX	-	1	Enquire
029	9421273	RIGHT GASKET	9421273 RIGHT GASKET GUARNIZIONE DX	-	1	Enquire
030	8700610	SCREW	8700610 SCREW VITE	-	8	Enquire
031	410831407A	Hinge Half Left Hand	410831407A Hinge Half Left Hand RISCONTRO SX	-	1	Enquire
031	410831408A	Hinge Half Right hand	410831408A Hinge Half Right hand RISCONTRO DX	-	1	Enquire
032	410837963	SPACER	410837963 SPACER DISTANZIALE	-	4	Enquire
032	410837964	SPACER	410837964 SPACER DISTANZIALE	-	4	Enquire
033	410837899	ORNAMENT	410837899 ORNAMENT	-	2	Enquire
034	7021253	PLATE	7021253 PLATE PIASTRA	-	2	Enquire
