Windscreen Wiper of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

Lamborghini Diablo GT (1999-2000) - Windscreen Wiper

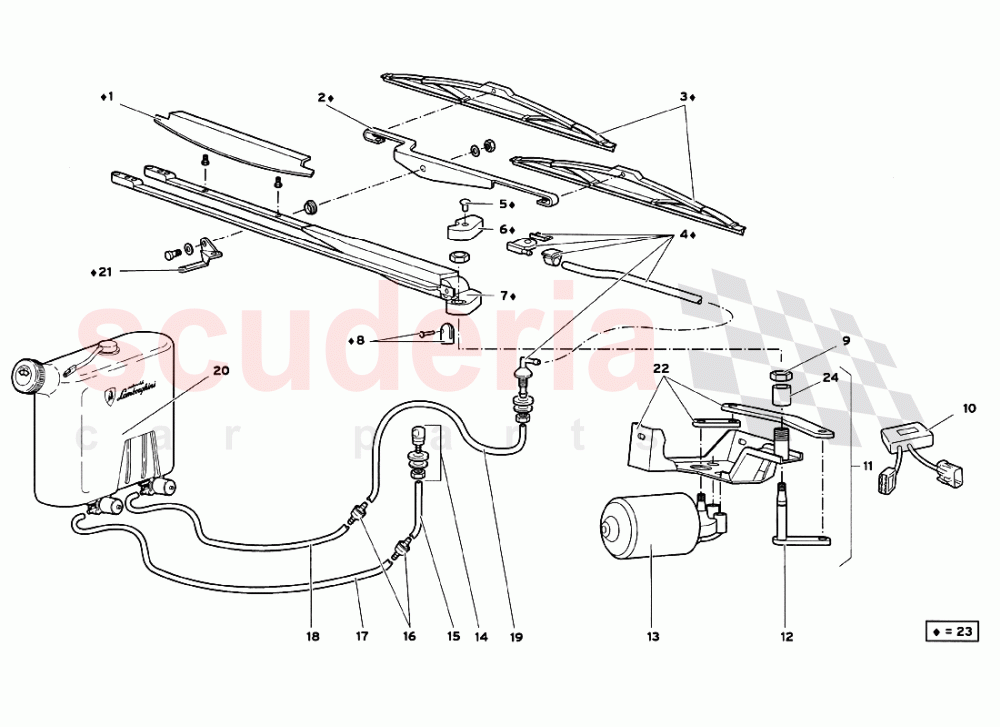

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	71003279	FIN	71003279 FIN ALETTA	$36.03	1
002	71003213	FORK	71003213 FORK FORCELLA	-	1	Enquire
003	71003278	WIPER BRUSH	71003278 WIPER BRUSH SPAZZOLA TERGICRISTALLO	$34.89	2
004	418955215	WINDSCREEN WASHER	418955215 WINDSCREEN WASHER LAVAPARABREZZA	$137.10	1
005	WHT003302	SCREW M4X6	WHT003302 SCREW M4X6	$1.81 MSRP: ~~7.10~~ (74.5% off)	1
006	9420137	SHIELD	9420137 SHIELD PROTEZIONE	-	1	Enquire
007	71003277	WIPER ARM	71003277 WIPER ARM BRACCIO TERGITORE	$1,075.47	1
008	71003938	COUPLING	71003938 COUPLING TESTA SNODATA	-	1	Enquire
009	8200828	NUT	8200828 NUT DADO	-	1	Enquire
010	6138108	INTERMITTENCE	6138108 INTERMITTENCE INTERMITTENZA	$799.00 MSRP: ~~835.00~~ (4.3% off)	1
011	71003921	WIPER GEAR MOTOR	71003921 WIPER GEAR MOTOR MOTORIDUTTORE TERGI COMPL.	$570.73 MSRP: ~~577.00~~ (1.1% off)	1
012	71003920	PIN	71003920 PIN PERNO	-	1	Enquire
013	9420112	ELECT MOTOR	9420112 ELECT MOTOR MOTORING TERGI	$602.99 MSRP: ~~629.00~~ (4.1% off)	1
014	400955985	NOZZLE	400955985 NOZZLE UGELLO	$5.79	1
015	17002439	PIPE	17002439 PIPE TUBO	-	1	Enquire
016	9420210	VALVE	9420210 VALVE VALVOLA	$6.45	2
017	9420201	PIPE	9420201 PIPE TUBO	$13.40 MSRP: ~~13.60~~ (1.5% off)	1
018	9420201	PIPE	9420201 PIPE TUBO	$13.40 MSRP: ~~13.60~~ (1.5% off)	1
019	9420211	PIPE	9420211 PIPE TUBO	$7.31	1
020	9420219	WATER RESERVOIR	9420219 WATER RESERVOIR SERBATOIO LAVACRISTALLO	$822.56	1
021	71003164	BRACKET	71003164 BRACKET STAFFA	-	1	Enquire
022	71003919	LEVER	71003919 LEVER GRUPPO LEVE	-	1	Enquire
023	71003276	WIND SCREEN WIPER KIT	71003276 WIND SCREEN WIPER KIT KIT TERGICRISTALLO	$1,491.93	1
024	71003937	SPACER	71003937 SPACER DISTANZIALE	-	1	Enquire
