Frame Floor Panels of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

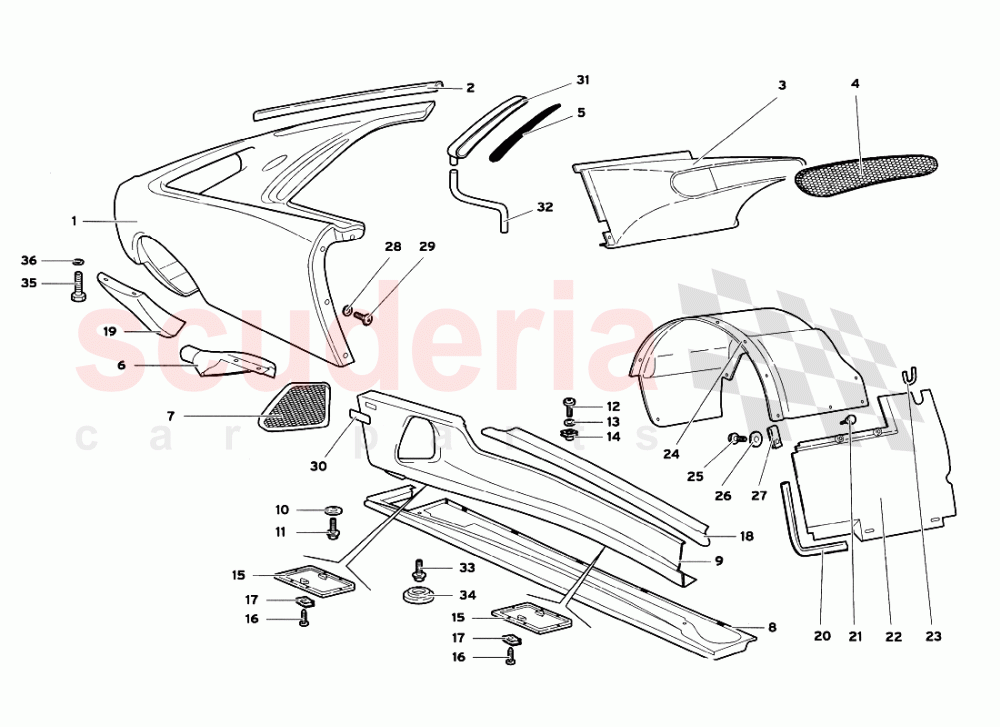

Lamborghini Diablo GT (1999-2000) - Frame Floor Panels

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	66007288	REAR MUDG. FENDER	66007288 REAR MUDG. FENDER PARAFANGO POST.	$13,275.41	1
002	9490113	GASKET	9490113 GASKET GUARNIZIONE	$34.02	1
003	74004725	CONVEYOR	74004725 CONVEYOR CONVOGLIATORE	$1,935.47	1
004	66005378	NET	66005378 NET RETE	$172.97	1
005	66005380	NET	66005380 NET RETE	$228.30	1
006	9953104	CONVEYOR	9953104 CONVEYOR CONVOGLIATORE	$605.47	1
007	66005382	NET	66005382 NET RETE	$523.99	1
008	66004620	RH SIDE SPOILER	66004620 RH SIDE SPOILER MINIGONNA LATO DX	$6,098.01	1
009	66004664	PANEL	66004664 PANEL BRANCARDO	$10,217.10	1
010	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.42	3
011	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	$0.95	9
012	87400685	SCREW	87400685 SCREW VITE	-	3	Enquire
013	8400624	WASHER	8400624 WASHER RONDELLA	$4.78	3
014	N90327506	SPEED NUT IN STOCK	N90327506 SPEED NUT IN STOCK	$0.94	6
015	9410306	INSPECTION LID	9410306 INSPECTION LID SPORTELLO ISPEZIONE	$67.50 MSRP: ~~70.60~~ (4.4% off)	2
016	WHT003114	SCREW	WHT003114 SCREW VITE	$5.45	12
017	WHT003424	CLIP IN STOCK	WHT003424 CLIP MOLLETTA IN STOCK	$0.89 MSRP: ~~7.25~~ (87.7% off)	12
018	78004670	DOORSILL MOULDING	78004670 DOORSILL MOULDING BATTICALCAGNO	$1,377.16	1
019	66005204	RH TRIANGLE	66005204 RH TRIANGLE TRIANGOLO DX	$3,213.40	1
020	9411511	GASKET	9411511 GASKET GUARNIZIONE	$109.81	1
021	9421408	RUBBER BUMPER	9421408 RUBBER BUMPER PARACOLPI COMMA	$22.52	2
022	9911502	PROTECTION	9911502 PROTECTION PARASASSI	$508.06	1
023	9411513	GASKET	9411513 GASKET GUARNIZIONE	$183.12	1
024	9911500	REAR WHEELBOX	9911500 REAR WHEELBOX PASSARUOTA POST.	$420.61	1
025	8700449	SCREW IN STOCK	8700449 SCREW VITE IN STOCK	$2.99 MSRP: ~~7.37~~ (59.4% off)	17
026	N91109201	WASHER IN STOCK	N91109201 WASHER RONDELLA IN STOCK	$1.55 MSRP: ~~5.85~~ (73.5% off)	17
027	WHT000916A	CLIP	WHT000916A CLIP MOLLETTA	$15.41	17
028	8400624	WASHER	8400624 WASHER RONDELLA	$4.78	9
029	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$21.42	9
031	74005121	GRILL COVER	74005121 GRILL COVER COPERCHIOGRIGLIA	$64.41	1
032	9490115	PIPE	9490115 PIPE TUBO SCARICO	$13.40	1
033	N91049601	OVAL HEAD PANEL SCREW (COMBI) IN STOCK	N91049601 OVAL HEAD PANEL SCREW (COMBI) VITE IN STOCK	$0.67 MSRP: ~~7.31~~ (90.8% off)	4
034	8931416	PLUG	8931416 PLUG TAPPO	$0.62 MSRP: ~~7.27~~ (91.5% off)	4
035	N0124032	SCREW	N0124032 SCREW VITE	-	2	Enquire
036	N90840802	WASHER IN STOCK	N90840802 WASHER RONDELLA IN STOCK	$0.40 MSRP: ~~7.33~~ (94.5% off)	2
