Accelerator Cables of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

Lamborghini Diablo GT (1999-2000) - Accelerator Cables

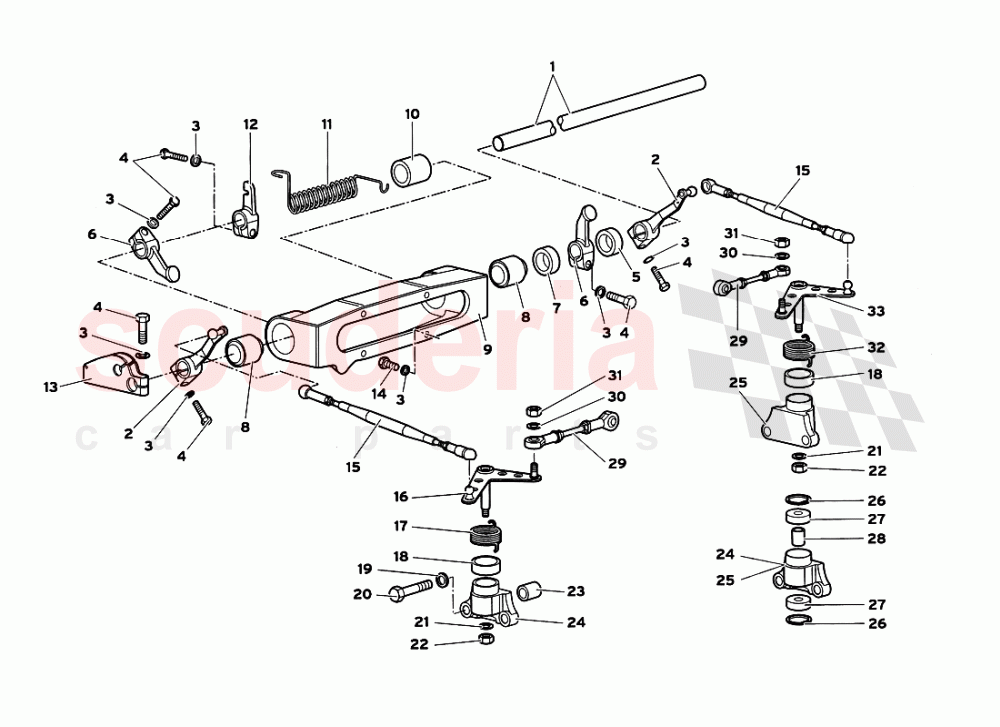

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	13005176	SMALL SHAFT	13005176 SMALL SHAFT ALBERINO	$106.96	1
002	1311580	LEVER	1311580 LEVER LEVA	$331.28	2
003	8410602	WASHER IN STOCK	8410602 WASHER ROSETTA IN STOCK	$44.87	10
004	8100601	SCREW	8100601 SCREW VITE	$0.27	6
005	13005016	SPACER	13005016 SPACER DISTANZIALE	$8.69	1
006	1337826	LEVER	1337826 LEVER PUNTALE	$84.49	2
007	13005412	SPACER	13005412 SPACER DISTANZIALE	$8.69	1
008	1336104	DOWEL	1336104 DOWEL CUSCINETTO	$87.21	2
009	13004892	SUPPORT - SUPPORTO	13004892 SUPPORT - SUPPORTO O	$756.84	1
010	13004882	SPACER	13004882 SPACER DISTANZIALE	$10.86	1
011	13005113	SPRING	13005113 SPRING MOLLA	$33.25	1
012	1331005	LEVER	1331005 LEVER LEVA MOLLA	$38.02	1
013	13005112	LEVER	13005112 LEVER LEVA	$2,177.41	1
014	8700614	SCREW	8700614 SCREW VITE	$0.27	4
015	13004773	TIE ROD	13004773 TIE ROD TIRANTE	$163.77	2
016	13004880	LEFT IDLE LEVER	13004880 LEFT IDLE LEVER LEVA Dl RINVIO SX	$165.65	1
017	13005359	LH SPRING LEVER	13005359 LH SPRING LEVER MOLLA LEVA SX	$20.86	2
018	13005367	BUSHING	13005367 BUSHING BOCCOLA	$25.20	2
019	8410803	WASHER	8410803 WASHER ROSETTA	$0.07	4
020	8700810	SCREW	8700810 SCREW VITE	$0.64 MSRP: ~~7.28~~ (91.2% off)	4
021	8410602	WASHER IN STOCK	8410602 WASHER ROSETTA IN STOCK	$44.87	2
022	N02214812	HEXAGON NUT, SELF-LOCKING	N02214812 HEXAGON NUT, SELF-LOCKING DADO	$1.96 MSRP: ~~7.29~~ (73.1% off)	2
023	13005410	SPACER	13005410 SPACER DISTANZIALE	$12.99	4
024	13005145	LEFT SUPPORT	13005145 LEFT SUPPORT SUPPORTO SX	$423.06	1
025	13005143	RIGHT SUPPORT	13005143 RIGHT SUPPORT SUPPORTO DX	$423.06	1
026	8572201	RETAINER RING IN STOCK	8572201 RETAINER RING SEEGER IN STOCK	$0.07 MSRP: ~~7.38~~ (99.1% off)	4
027	8500801	BEARING	8500801 BEARING CUSCINETTO	$7.58	4
028	13005156	SPACER	13005156 SPACER DISTANZIALE	$23.15	2
029	13005006	TIE ROD	13005006 TIE ROD TIRANTE	$411.92	2
030	13005164	RING	13005164 RING ANELLO	-	4	Enquire
031	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.76	4
032	13005360	RH SPRING LEVER	13005360 RH SPRING LEVER MOLLA LEVA DX	$20.86	1
033	13004883	RIGHT IDLE LEVER	13004883 RIGHT IDLE LEVER LEVA Dl RINVIO DX	$165.65	1
