Timing System 1 of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

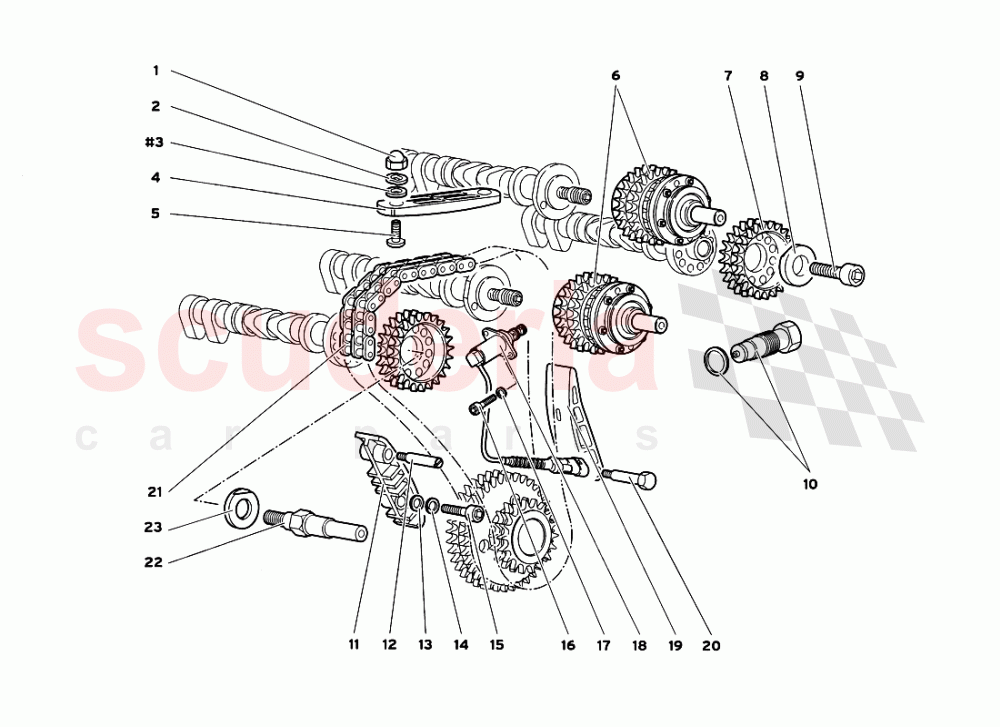

Lamborghini Diablo GT (1999-2000) - Timing System 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	4
002	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	4
003	WHT003041	WASHER IN STOCK	WHT003041 WASHER (Also Included In The Engine Gaskets Kit And Cover Gaskets Kit) RONDELLA IN STOCK	$0.89 MSRP: ~~7.31~~ (87.8% off)	4
004	7M109513	SHOE	7M109513 SHOE PATTING	$767.49	2
005	8700682	SCREW IN STOCK	8700682 SCREW VITE IN STOCK	$0.56 MSRP: ~~7.28~~ (92.3% off)	4
006	12004905	VARIATOR - VARIATORE	12004905 VARIATOR - VARIATORE	$1,233.25	2
007	1232198	GEAR	1232198 GEAR INGRANAGGIO	$589.33 MSRP: ~~596.00~~ (1.1% off)	2
008	1237892	WASHER	1237892 WASHER RONDELLA	$70.99	1
009	8701031	SCREW	8701031 SCREW VITE	$10.18 MSRP: ~~10.55~~ (3.5% off)	1
010	7M109255	Chain Tightener IN STOCK	7M109255 Chain Tightener TENDICATENA IN STOCK	$848.13	2
011	7M109469	SHOE IN STOCK	7M109469 SHOE PATTINO IN STOCK	$49.82	2
012	1232837	PIN	1232837 PIN PERNO	-	2	Enquire
013	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 RONDELLA IN STOCK	$0.33 MSRP: ~~7.35~~ (95.5% off)	2
014	8410820	WASHER	8410820 WASHER RONDELLA	$0.19 MSRP: ~~7.37~~ (97.4% off)	2
015	8700848	SCREW	8700848 SCREW VITE	-	2	Enquire
016	8700605	SCREW	8700605 SCREW VITE	$0.13 MSRP: ~~7.37~~ (98.2% off)	4
017	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	4
018	12001214	ELECTRO-VALVE	12001214 ELECTRO-VALVE ELETTROVALVOLA	$9,676.37	2
019	7M109508	Shoe IN STOCK	7M109508 Shoe PATTINO IN STOCK	$236.56	2
020	1232851	PIN	1232851 PIN PERNO	-	2	Enquire
021	12001138	TIMING CHAIN	12001138 TIMING CHAIN CATENA SUPERIORE DISTRIBUZ.	-	2	Enquire
022	12003892	SMALL SHAFT	12003892 SMALL SHAFT ALBERINO	$196.04	1
023	12003956	WASHER	12003956 WASHER RONDELLA	$20.86	1
