Intake Manifold 1 of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

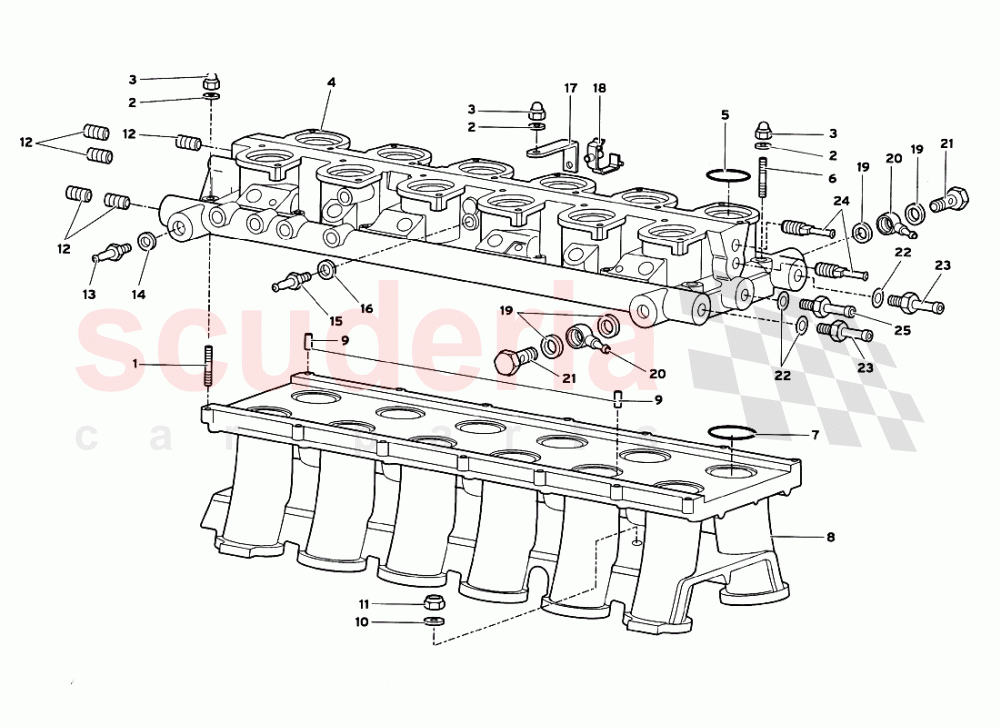

Lamborghini Diablo GT (1999-2000) - Intake Manifold 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8300662	STUD	8300662 STUD PRIGIONIERO	-	2	Enquire
002	8410602	WASHER	8410602 WASHER RONDELLA	-	16	Enquire
003	8200605	NUT	8200605 NUT DADO	-	16	Enquire
004	13004561	UPPER MANIFOLD	13004561 UPPER MANIFOLD COLETTORE SUPERIORE	-	1	Enquire
005	8604801	SEAL	8604801 SEAL ANELLO TENUTA	-	12	Enquire
006	8300621	STUD	8300621 STUD PRIGIONIERO	-	12	Enquire
007	8604801	SEAL	8604801 SEAL ANELLO TENUTA	-	12	Enquire
008	13004583	LOWER MANIFOLD	13004583 LOWER MANIFOLD COLLETTORE INFERIORE	-	1	Enquire
009	8800604	BUSHING	8800604 BUSHING GRAND	-	2	Enquire
010	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5 RONDELLA	-	3	Enquire
011	8200809	NUT	8200809 NUT DADO	-	3	Enquire
012	8931204	PLUG	8931204 PLUG TAPPO	-	5	Enquire
013	13004791	CONNECTION	13004791 CONNECTION RACCORDO	-	1	Enquire
014	8401408	WASHER	8401408 WASHER RONDELLA	-	1	Enquire
015	10033993	CONNECTION	10033993 CONNECTION RACCORDO	-	2	Enquire
016	8400818	WASHER	8400818 WASHER RONDELLA	-	2	Enquire
017	13006187	BRACKET	13006187 BRACKET STAFFA	-	2	Enquire
018	WHT003076	STRAP	WHT003076 STRAP FASCETTA	-	2	Enquire
019	WHT003544	WASHER	WHT003544 WASHER GUARNIZIONE	-	4	Enquire
020	13005158	CONNECTION	13005158 CONNECTION RACCORDO	-	2	Enquire
021	13005160	UNION	13005160 UNION BOCCHETTONE	-	2	Enquire
022	WHT003544	WASHER	WHT003544 WASHER GUARNIZIONE	-	3	Enquire
023	13004785	CONNECTION	13004785 CONNECTION RACCORDO	-	2	Enquire
024	13004789	CONNECTION	13004789 CONNECTION RACCORDO	-	2	Enquire
025	13004784	CONNECTION	13004784 CONNECTION RACCORDO	-	1	Enquire
