Timing System 2 of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

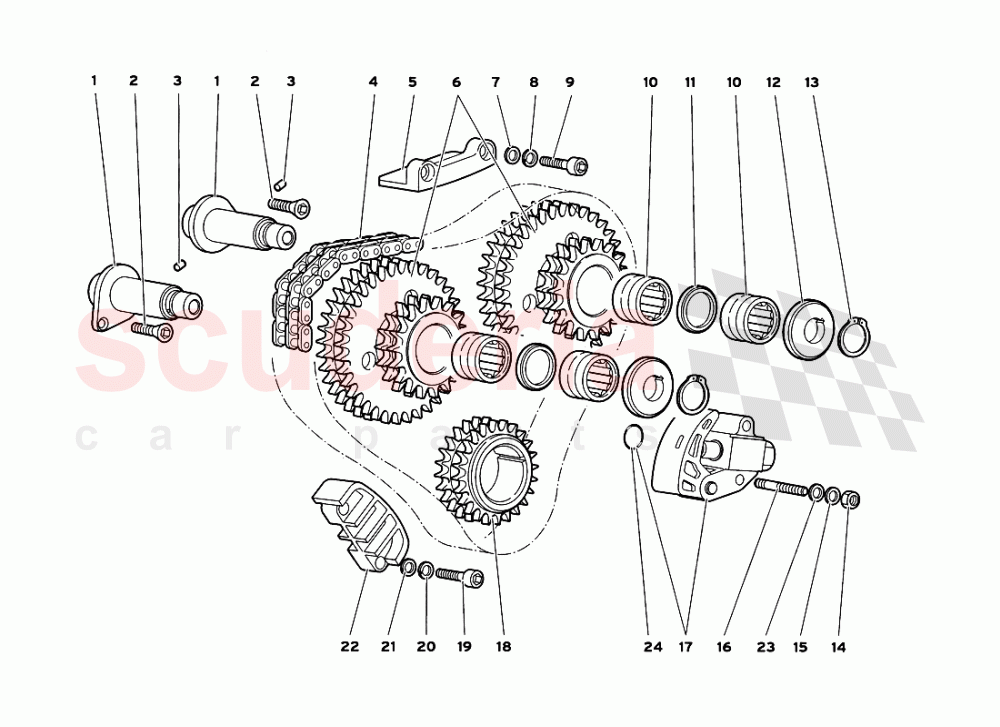

Lamborghini Diablo GT (1999-2000) - Timing System 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1232199	PIN	1232199 PIN PERNO	-	2	Enquire
002	8700638	SCREW M6X16	8700638 SCREW M6X16 VITE	-	2	Enquire
003	8850302	PIN - SPINA	8850302 PIN - SPINA SA	-	2	Enquire
004	12001137	CHAIN	12001137 CHAIN CATENA INFERIORE DISTR.	-	1	Enquire
005	7M109201	Guide	7M109201 Guide GUIDA	-	1	Enquire
006	7M109569	GEAR	7M109569 GEAR INGRANAGGIO	-	2	Enquire
007	1231040	WASHER	1231040 WASHER RONDELLA	-	2	Enquire
008	8410820	WASHER	8410820 WASHER RONDELLA	-	2	Enquire
009	8700850	SCREW	8700850 SCREW VITE	-	2	Enquire
010	8522508	BEARING	8522508 BEARING CUSCINETTO	-	4	Enquire
011	7M109135	SPACER	7M109135 SPACER DISTANZIALE	-	2	Enquire
012	12004032	WASHER	12004032 WASHER RONDELLA Dl RITEGNO	-	2	Enquire
013	WHT002646	RETAINING RING	WHT002646 RETAINING RING ANELLO RITEGNO	-	2	Enquire
014	N01100637	NUT M6	N01100637 NUT M6 DADO	-	2	Enquire
015	8410602	WASHER	8410602 WASHER RONDELLA	-	2	Enquire
016	8300660	STUD BOLT	8300660 STUD BOLT PRIGIONIERO	-	2	Enquire
017	7M109077A	CHAIN TIGHTENER WITH RING	7M109077A CHAIN TIGHTENER WITH RING TENDICATENA	-	1	Enquire
018	1232196	GEAR	1232196 GEAR INGRANAGGIO COMANDO DISTR.	-	1	Enquire
019	8700848	SCREW	8700848 SCREW VITE	-	2	Enquire
020	8410820	WASHER	8410820 WASHER RONDELLA	-	2	Enquire
021	N0122094	WASHER	N0122094 WASHER RONDELLA	-	2	Enquire
022	7M109203	Guide	7M109203 Guide GUIDA	-	1	Enquire
023	8400606	WASHER	8400606 WASHER RONDELLA	-	2	Enquire
024	8601501	SEAL	8601501 SEAL (Also Included In The Engine Gasket Kit) ANELLO Dl TENUTA	-	1	Enquire
