Accessories for Right Cylinder Head of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

Lamborghini Diablo GT (1999-2000) - Accessories for Right Cylinder Head

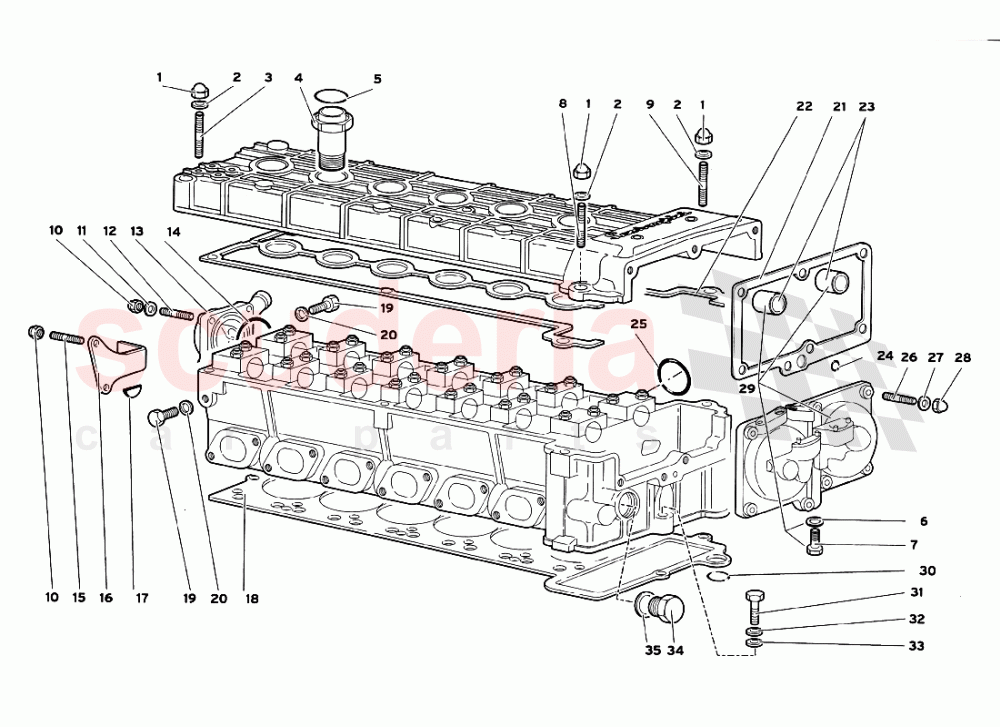

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	3
002	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	3
003	8300649	STUD BOLT	8300649 STUD BOLT PRIGIONIERO	$9.49 MSRP: ~~9.85~~ (3.7% off)	1
004	11004007	UNION	11004007 UNION BOCCHETTONE	$185.48	6

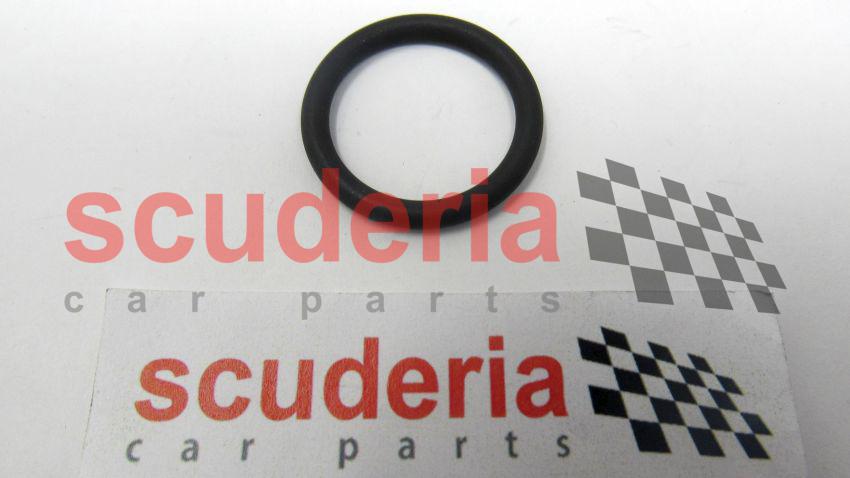

005	8602304	SEAL RING IN STOCK	8602304 SEAL RING ANELLO TENUTA IN STOCK	$10.15	6
006	WHT003041	WASHER IN STOCK	WHT003041 WASHER (Also Included In The Engine Gaskets Kit And Cover Gaskets Kit) RONDELLA IN STOCK	$0.89 MSRP: ~~7.31~~ (87.8% off)	1
007	8100631	SCREW	8100631 SCREW VITE	$0.12 MSRP: ~~7.37~~ (98.4% off)	1
008	8300651	STUD BOLT	8300651 STUD BOLT PRIGIONIERO	$11.87 MSRP: ~~12.30~~ (3.5% off)	1
009	8300637	STUD BOLT	8300637 STUD BOLT PRIGIONIERO	$14.35 MSRP: ~~15.00~~ (4.3% off)	1
010	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	8
011	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	6
012	8300601	STUD BOLT	8300601 STUD BOLT PRIGIONIERO	$8.56	4
013	1133383	VENT PIPE	1133383 VENT PIPE COPERCHIO - SFIATO	$173.68 MSRP: ~~176.00~~ (1.3% off)	1
014	8606205	O-Ring	8606205 O-Ring (Also Included In The Engine Gaskets Kit And Cover Gaskets Kit) ANELLO TENUTA	$4.29	1
015	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	$4.96 MSRP: ~~5.10~~ (2.7% off)	2
016	11005230	SUPPORT	11005230 SUPPORT FERMAGUAINA	$54.47	1
017	11003411	COVER	11003411 COVER (Also Included In The Engine Gaskets Kit And Cover Gaskets Kit) COPERCHIO	-	1	Enquire
018	11000987	GASKET	11000987 GASKET (Also Included In The Engine Gasket Kit) GUARNIZIONE	$392.28	1
019	8100839	SCREW	8100839 SCREW VITE	$0.46 MSRP: ~~7.31~~ (93.7% off)	3
020	8400818	WASHER	8400818 WASHER RONDELLA	-	3	Enquire
021	11003889	GASKET	11003889 GASKET (Also Included In The Engine Gaskets Kit And Cover Gaskets Kit) GUARNIZIONE	$32.36	1
022	7M103484A	CRANKCASE VENT VALVE GASKET IN STOCK	7M103484A CRANKCASE VENT VALVE GASKET (Also Included In The Engine Gaskets Kit And Cover Gaskets Kit) GUARNIZIONE IN STOCK	$717.78	1
023	11000038	BUSHING	11000038 BUSHING BOCCOLA	$55.88	2
024	8600905	SEAL RING	8600905 SEAL RING (Also Included In The Engine Gasket Kit) ANELLO TENUTA	$9.49 MSRP: ~~9.85~~ (3.7% off)	1
025	8604703	SEAL RING	8604703 SEAL RING (Also Included In The Engine Gaskets Kit And Cover Gaskets Kit) ANELLO TENUTA	$8.17 MSRP: ~~8.45~~ (3.3% off)	6
026	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	$22.30	7
027	WHT000771	WASHER IN STOCK	WHT000771 WASHER RONDELLA IN STOCK	$1.19	7
028	8200816	NUT	8200816 NUT DADO	$5.14	7
029	11006603	COVER	11006603 COVER COPERCHIO COMPLETO	-	1	Enquire
030	8601203	SEAL	8601203 SEAL (Also Included In The Engine Gasket Kit) ANELLO TENUTA	$0.88	1
031	8100807	SCREW	8100807 SCREW VITE	$0.83 MSRP: ~~7.27~~ (88.6% off)	1
032	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.40	1
033	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.47 MSRP: ~~7.15~~ (79.4% off)	1
034	7M103035	PLUG	7M103035 PLUG	$62.89	1
035	8402609	WASHER	8402609 WASHER (Also Included In The Engine Gasket Kit) RONDELLA	-	1	Enquire
