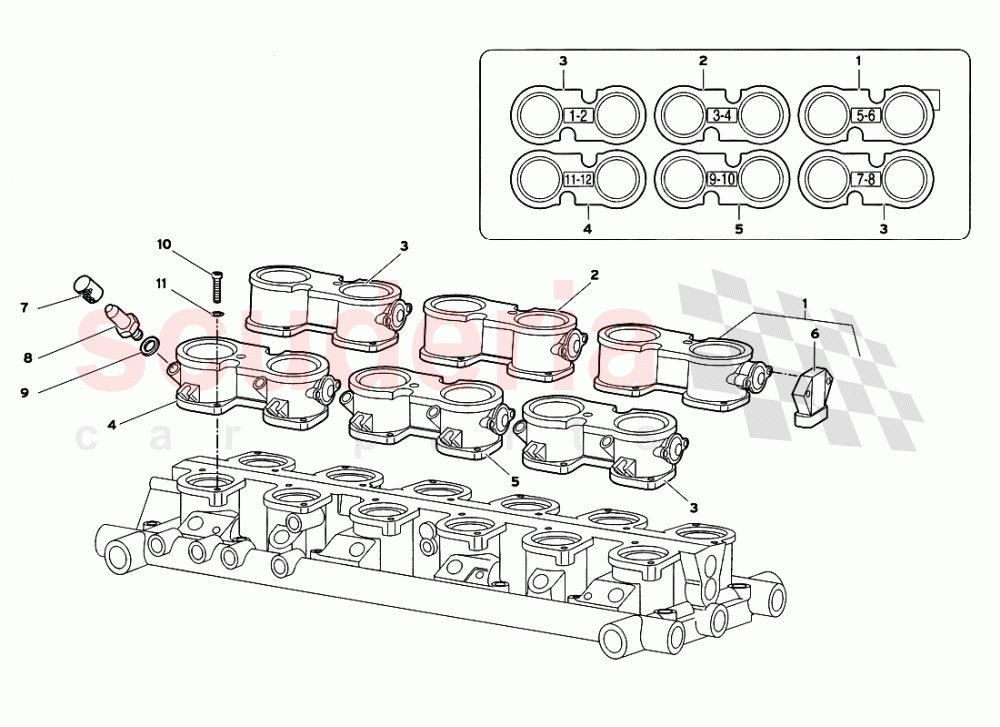

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	13007614	POTENTIOMETER THROTTLE CASIN	13007614 POTENTIOMETER THROTTLE CASIN POTENZIOMETRO CORPO FARFAL (5-6) CPL. Dl	$3,312.65	1
002	13007417	THROTTLE HOLD	13007417 THROTTLE HOLD CORPO FARFALLATO (3-4)	$3,039.70	1
003	13007419	THROTTLE HOLD	13007419 THROTTLE HOLD CORPO FARFALLATO (1-2) - (7-8)	$3,039.70	2
004	13007420	THROTTLE HOLD	13007420 THROTTLE HOLD CORPO FARFALLATO (11-12)	$3,039.70	1
005	13007418	THROTTLE HOLD	13007418 THROTTLE HOLD CORPO FARFALLATO (9-10)	$3,039.70	1
006	13004660	POTENTIOMETER	13004660 POTENTIOMETER POTENZIOMETRO	$347.40	1
007	13005197	PLUG	13005197 PLUG TAPPO	$5.47	12
008	13005194	CONNECTION	13005194 CONNECTION RACCORDO	$25.94	12
009	WHT003041	WASHER IN STOCK	WHT003041 WASHER GUARNIZIONE IN STOCK	$0.89 MSRP: ~~7.31~~ (87.8% off)	12
010	8700547	SCREW IN STOCK	8700547 SCREW VITE IN STOCK	$0.16 MSRP: ~~7.38~~ (97.8% off)	24
011	8400509	WASHER	8400509 WASHER RONDELLA	$0.12 MSRP: ~~7.37~~ (98.4% off)	24
