Engine Gasket Kit of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

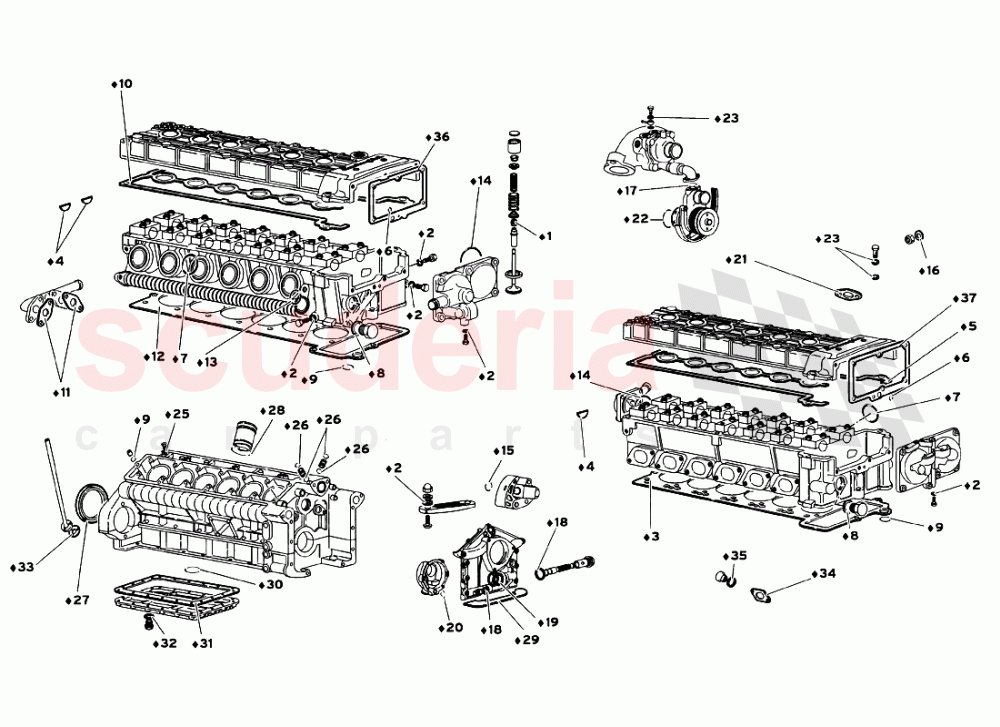

Lamborghini Diablo GT (1999-2000) - Engine Gasket Kit

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	7M109675	SEAL RING	7M109675 SEAL RING	$15.73	48
002	WHT003041	WASHER	WHT003041 WASHER RONDELLA	$0.89 MSRP: ~~7.31~~ (87.8% off)	8
003	11000987	GASKET	11000987 GASKET GUARNIZIONE	$392.28	1
004	11003411	COVER	11003411 COVER COPERCHIO	-	3	Enquire
005	11001011	GASKET	11001011 GASKET GUARNIZIONE	$70.99	1
006	8600905	SEAL RING	8600905 SEAL RING ANELLO TENUTA	$9.49 MSRP: ~~9.85~~ (3.7% off)	2
007	8604703	SEAL RING	8604703 SEAL RING ANELLO TENUTA	$8.17 MSRP: ~~8.45~~ (3.3% off)	12
008	8402609	WASHER	8402609 WASHER RONDELLA	-	2	Enquire
009	8601203	SEAL	8601203 SEAL ANELLO TENUTA	$0.88	2
010	11001012	GASKET	11001012 GASKET GUARNIZIONE	$44.36	1
011	1121254	GASKET	1121254 GASKET GUARNIZIONE	$9.33	2
012	11000988	Gasket	11000988 Gasket GUARNIZIONE	$405.18	1
013	8603503	SEAL RING	8603503 SEAL RING ANELLO TENUTA	$4.16	2
014	8606205	O-Ring	8606205 O-Ring ANELLO TENUTA	$4.29	2
015	8601501	SEAL	8601501 SEAL ANELLO TENUTA	$5.82 MSRP: ~~6.00~~ (3% off)	1
016	8401008	WASHER	8401008 WASHER RONDELLA	-	2	Enquire
017	WHT003062	SEAL RING	WHT003062 SEAL RING ANELLO TENUTA	$6.61	1
018	8403007	WASHER	8403007 WASHER RONDELLA	$1.10	2
019	8613702	SEAL	8613702 SEAL ANELLO TENUTA	$57.82 MSRP: ~~60.50~~ (4.4% off)	1
020	8601705	SEAL	8601705 SEAL ANELLO TENUTA	$0.48 MSRP: ~~7.30~~ (93.4% off)	1
021	1831058	GASKET	1831058 GASKET GUARNIZIONE	$23.09	1
022	WHT003018	SEAL RING	WHT003018 SEAL RING ANELLO TENUTA	$87.36	1
023	8400818	WASHER	8400818 WASHER RONDELLA	-	7	Enquire
024	8601106	SEAL	8601106 SEAL ANELLO TENUTA	-	2	Enquire
025	8401425	WASHER	8401425 WASHER RONDELLA	-	1	Enquire
026	8600705	SEAL	8600705 SEAL ANELLO TENUTA	-	4	Enquire
027	7M103089	SEAL RING	7M103089 SEAL RING	$230.47	1
028	WHT003085	SEAL RING	WHT003085 SEAL RING ANELLO TENUTA	$4.37 MSRP: ~~7.06~~ (38.1% off)	12
029	1232219	GASKET	1232219 GASKET GUARNIZIONE	$4.71 MSRP: ~~4.85~~ (2.9% off)	1
030	8609302	SEAL	8609302 SEAL ANELLO TENUTA	-	1	Enquire
031	1826521	GASKET	1826521 GASKET GUARNIZIONE	$124.68	1
032	8402202	WASHER	8402202 WASHER RONDELLA	$4.29 MSRP: ~~4.45~~ (3.6% off)	1
033	1830006	GASKET	1830006 GASKET GUARNIZIONE	$8.41	1
034	7M253039	GASKET	7M253039 GASKET Alternative use : 111532	$39.86	12
035	N91122801	WASHER 18,5X24X1,5	N91122801 WASHER 18,5X24X1,5 RONDELLA	$3.05 MSRP: ~~7.18~~ (57.5% off)	2
036	11004551	GASKET	11004551 GASKET GUARNIZIONE	$35.85	1
037	11003889	GASKET	11003889 GASKET GUARNIZIONE	$32.36	1
038	11005352	ENGINE GASKET KIT	11005352 ENGINE GASKET KIT	$3,625.92	1
