Lamborghini Diablo (1990-1998) - Oil Sump (Valid for June 1992 Version)

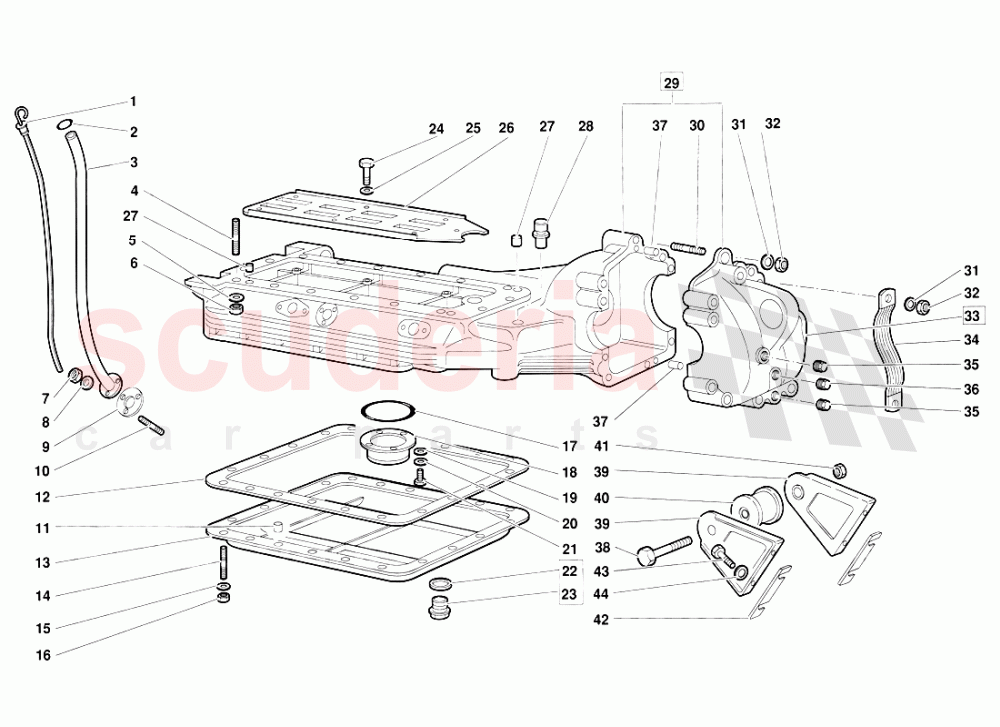

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1831041	OIL LEVEL ROD	1831041 OIL LEVEL ROD (Valid for June 1992 version) ASIA LIVELLO OLIO	$346.68	1
002	WHT003057	SEAL RING IN STOCK	WHT003057 SEAL RING (Valid for June 1992 version) ANELLO TENUTA IN STOCK	$2.23 MSRP: ~~7.29~~ (69.4% off)	1
003	1831138	PIPE	1831138 PIPE (Valid for June 1992 version) TUBO PORTA ASIA	$622.84	1
004	8300897	STUD	8300897 STUD (Valid for June 1992 version) PRIGIONIERO L = 97 MM	$14.92 MSRP: ~~15.50~~ (3.7% off)	4
004	WHT003031	STUD BOLT	WHT003031 STUD BOLT (Valid for June 1992 version) PRIGIONIERO L = 28 MM	$9.61	8
004	8300806	STUD	8300806 STUD (Valid for June 1992 version) PRIGIONIEROL = 70MM	$5.59 MSRP: ~~5.70~~ (1.9% off)	6
005	WHT001514	WASHER IN STOCK	WHT001514 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$24.95 MSRP: ~~64.00~~ (61% off)	18
006	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT (Valid for June 1992 version) DADO IN STOCK	$1.89	18
007	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING (Valid for June 1992 version) DADO IN STOCK	$2.04	3
008	N01152427	WASHER IN STOCK	N01152427 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$0.28	3
009	1830006	GASKET	1830006 GASKET (Valid for June 1992 version) GUARNIZIONE	$8.41	1
010	8300601	STUD BOLT	8300601 STUD BOLT (Valid for June 1992 version) PRIGIONIERO	$8.56	3
011	8850806	DOWEL	8850806 DOWEL (Valid for June 1992 version) GRAND	-	1	Enquire
012	1826521	GASKET	1826521 GASKET (Valid for June 1992 version) GUARNIZIONE	$124.68	1
013	1831852	LOWER COVER	1831852 LOWER COVER (Valid for June 1992 version) COPERCHIO INFEFHORE	$554.37	1
014	8300615	STUD	8300615 STUD (Valid for June 1992 version) PRIGIONIERO	$20.24 MSRP: ~~21.05~~ (3.8% off)	20
015	8410602	WASHER IN STOCK	8410602 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$44.87	20
016	8200605	NUT IN STOCK	8200605 NUT (Valid for June 1992 version) DADO IN STOCK	$3.06	20
017	WHT002222	SEAL RING	WHT002222 SEAL RING	$13.10	1
018	1832017	FLANGE	1832017 FLANGE (Valid for June 1992 version) FLANGIA	$327.55	1
019	N01152427	WASHER IN STOCK	N01152427 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$0.28	4
020	WHT003052	WASHER 4,3 IN STOCK	WHT003052 WASHER 4,3 (Valid for June 1992 version) RONDELLA IN STOCK	$3.77 MSRP: ~~7.38~~ (48.9% off)	4
021	8100604	SCREW	8100604 SCREW (Valid for June 1992 version) VITE	$2.56	4
022	840220	WASHER	840220 WASHER (Valid for June 1992 version) RONDELLA (sostituisce 008602002)	-	1	Enquire
023	8932211	Drain Plug	8932211 Drain Plug (Valid for June 1992 version) TAPPO (sostituisce 008932206)	$25.84	1
024	8100604	SCREW	8100604 SCREW (Valid for June 1992 version) VITE	$2.56	8
025	WHT003052	WASHER 4,3 IN STOCK	WHT003052 WASHER 4,3 (Valid for June 1992 version) RONDELLA IN STOCK	$3.77 MSRP: ~~7.38~~ (48.9% off)	8
026	1827775	PLATE	1827775 PLATE (Valid for June 1992 version) PARATIA ANTISBATTIMENTO	$85.50	1
027	8850806	DOWEL	8850806 DOWEL (Valid for June 1992 version) GRANO	-	2	Enquire
028	B9507141	OIL BREATHER PIPE	B9507141 OIL BREATHER PIPE (Valid for June 1992 version) SFIATO OLIO DIFFERENZIALE	$69.10	1
029	1825337	OIL SUMP	1825337 OIL SUMP (Valid for June 1992 version) COPPA OLIO (Per esigenze di lavorazione questo particolare non e piu fornito singolarmente ma nell'assieme 453400100	-	1	Enquire
029	453400100	OIL SUMP	453400100 OIL SUMP (Valid for June 1992 version) COPPA OLIO CON COP. DIFFERENZ. (Per esigenze di lavorazione questi particolari sono forniti solamente accoppiat)	-	1	Enquire
030	8301002	STUD	8301002 STUD (Valid for June 1992 version) PRIGIONIERO	$33.06	2
030	8301033	STUD	8301033 STUD (Valid for June 1992 version) PRIGIONIERO	$36.55	8
031	WHT000768	WASHER IN STOCK	WHT000768 WASHER IN STOCK	$1.96 MSRP: ~~7.28~~ (73.1% off)	10
032	N10155210	NUT	N10155210 NUT (Valid for June 1992 version) DADO	$1.96 MSRP: ~~7.24~~ (72.9% off)	10
033	1825336	DIFFERENTIAL COVER	1825336 DIFFERENTIAL COVER (Valid for June 1992 version) COPERCHIO DIFFERENZIALE (Per esigenze di lavorazione questo particolare non e piu fornito singolarmente ma nell'assieme 4534001 00)	$674.94	1
034	1604328	GROUND CABLE	1604328 GROUND CABLE (Valid for June 1992 version) CAVO MASSA	-	2	Enquire
035	86301141A	MAGNETIC PLUG	86301141A MAGNETIC PLUG (Valid for June 1992 version) TAPPO MAGNETICO	$37.19	2
036	8931802	MAGNETIC PLUG	8931802 MAGNETIC PLUG (Valid for June 1992 version) TAPPO MAGNETICO	$4.28	1
037	8850806	DOWEL	8850806 DOWEL (Valid for June 1992 version) GRANO	-	2	Enquire
038	8101430	SCREW	8101430 SCREW (Valid for June 1992 version) VITE	$3.54 MSRP: ~~3.65~~ (3% off)	1
039	4126765	BRACKET	4126765 BRACKET (Valid for June 1992 version) STAFFA	$274.21 MSRP: ~~287.00~~ (4.5% off)	2
040	B9501144	support mount IN STOCK	B9501144 support mount IN STOCK	$243.94	1
041	8201416	NUT	8201416 NUT (Valid for June 1992 version) DADO	$1.74	1
042	4126766	SPACER	4126766 SPACER (Valid for June 1992 version) SPESSORE DI REGISTRO	-	1	Enquire
043	8100803	SCREW M8X1,25X25	8100803 SCREW M8X1,25X25 (Valid for June 1992 version) VITE	$0.51 MSRP: ~~7.31~~ (93% off)	4
044	8410801	WASHER	8410801 WASHER (Valid for June 1992 version) RONDELLA	$0.62	4
