Crankcase and Lower Mounting (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998)

View All

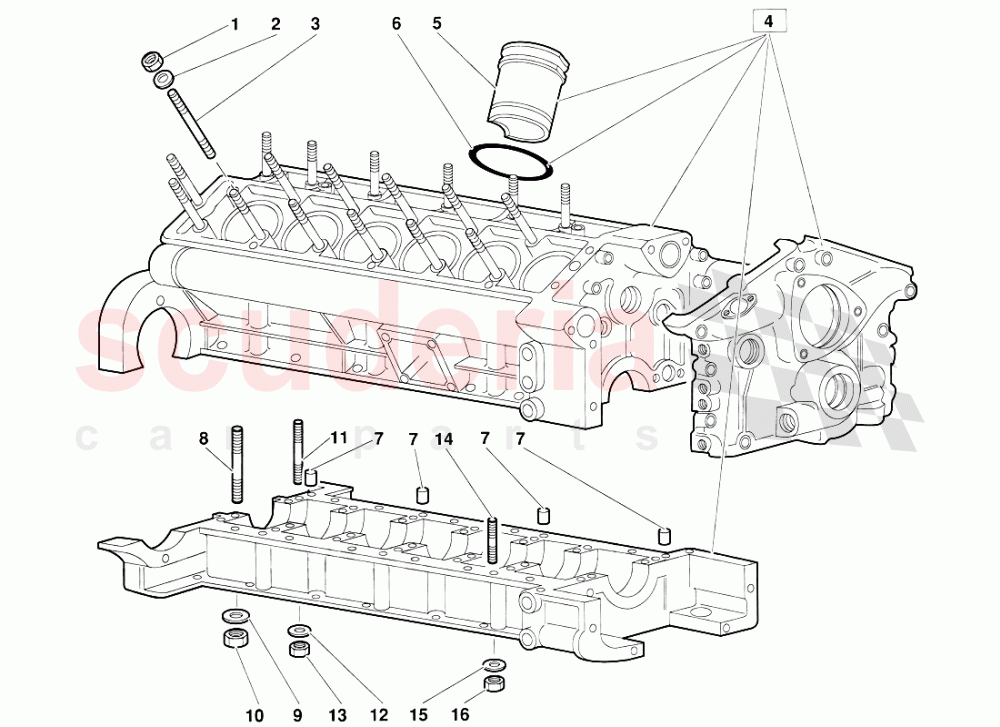

Lamborghini Diablo (1990-1998) - Crankcase and Lower Mounting (Valid for June 1992 Version)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1120924	CAP NUT	1120924 CAP NUT (Valid for June 1992 version) DADO	-	28	Enquire
002	8401230	WASHER	8401230 WASHER (Valid for June 1992 version) RONDELLA	-	28	Enquire
003	1824761	STUD BOLT	1824761 STUD BOLT (Valid for June 1992 version) PRIGIONIERO TESTE	-	28	Enquire
004	403400100	CRANKCASE	403400100 CRANKCASE (Valid for June 1992 version) BASAMENTO COMPLETO Dl CANNE, COPERCHIO DISTRIB. E SOTTOCOPPA (Per esigenze di lavorazione e stato aggiunto a questo assieme il coperchio distribuzione)	-	1	Enquire
005	1829442	CYLINDER	1829442 CYLINDER (Valid for June 1992 version) CILINDRO	-	12	Enquire
006	WHT003085	SEAL RING	WHT003085 SEAL RING (Valid for June 1992 version) ANELLO TENUTA	-	12	Enquire
007	8851105	DOWEL	8851105 DOWEL (Valid for June 1992 version) GRANO	-	4	Enquire
008	8301238	STUD BOLT	8301238 STUD BOLT (Valid for June 1992 version) PRIGIONIEROD= 12 MM	-	14	Enquire
009	8401227	WASHER	8401227 WASHER (Valid for June 1992 version) RONDELLA	-	14	Enquire
010	8201221	NUT	8201221 NUT (Valid for June 1992 version) DADO	-	14	Enquire
011	8300886	STUD	8300886 STUD (Valid for June 1992 version) PRIGIONIEROD = 8MM	-	14	Enquire
012	8400820	WASHER	8400820 WASHER (Valid for June 1992 version) RONDELLA	-	14	Enquire
013	8200805	NUT	8200805 NUT (Valid for June 1992 version) DADO	-	14	Enquire
014	8100871	SCREW	8100871 SCREW (Valid for June 1992 version) VITE L= 95 MM	-	1	Enquire
014	8300808	STUD BOLT	8300808 STUD BOLT use : WHT003027	-	2	Enquire
014	8300884	STUD	8300884 STUD (Valid for June 1992 version) PRIGIONIEROL=95MM	-	1	Enquire
014	WHT003028	THREADED PIN	WHT003028 THREADED PIN (Valid for June 1992 version) PRIGIONIEROL=25MM	-	10	Enquire
015	8410815	WASHER	8410815 WASHER (Valid for June 1992 version) RONDELLA	-	14	Enquire
016	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT (Valid for June 1992 version) DADO	-	14	Enquire
