Cylinder Head, Left of Lamborghini Lamborghini Diablo (1990-1998)

View All

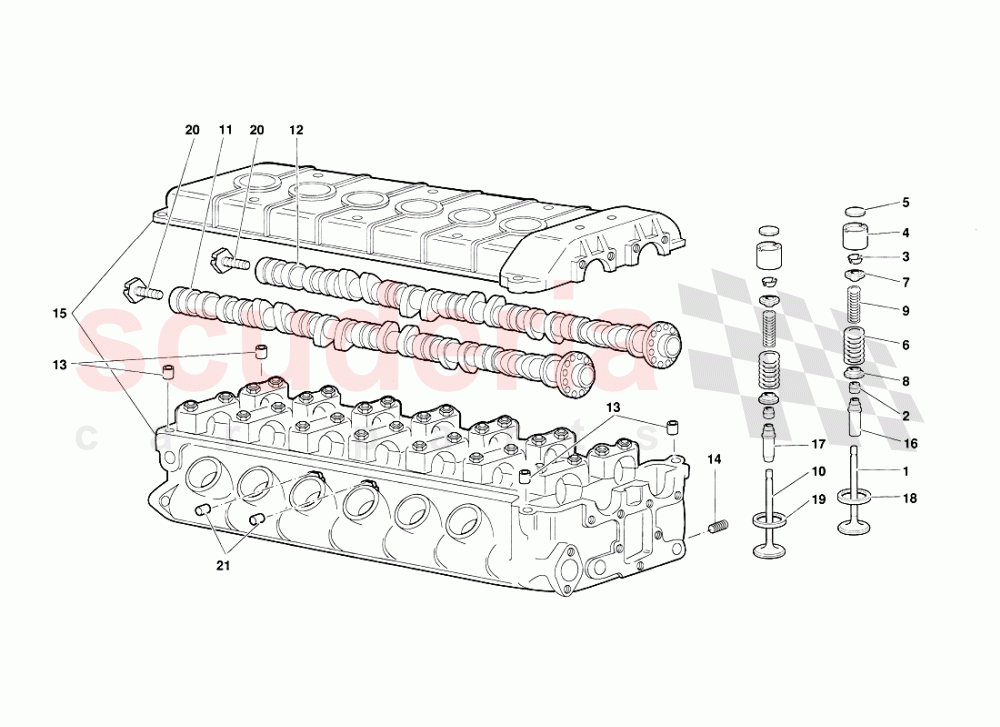

Lamborghini Diablo (1990-1998) - Cylinder Head, Left

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	9008019	CYLINDER HEAD TOOL	9008019 CYLINDER HEAD TOOL CYLINDER HEAD BOLT REMOVAL TOOL	$621.78	1
001	1220819	EXHAUST VALVE	1220819 EXHAUST VALVE VALVOLA SCARICO	$1,364.76	12
002	7M109675	SEAL RING	7M109675 SEAL RING	$15.73	48
003	1220843	TAPPET LOCK CONE	1220843 TAPPET LOCK CONE SEMICONOPUNTERIE	$7.62	48
004	7M109309	VALVE CONTROL TAPPET	7M109309 VALVE CONTROL TAPPET PUNTERIA	$36.70	24
005	1220881	SHIM	1220881 SHIM SPESSORE Dl REGISTRO 3.45 MM	-	24	Enquire
005	1220887	SHIM	1220887 SHIM SPESSORE Dl REGISTRO 3.75 MM	-	24	Enquire
005	1220896	SHIM	1220896 SHIM SPESSORE Dl REGISTRO 4.20 MM	-	24	Enquire
005	7M109320L	3.80 MM ADJUSTMENT SHIM	7M109320L 3.80 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 3.80 MM	$55.72	24
005	1220877	SHIM	1220877 SHIM SPESSORE Dl REGISTRO 3.25 MM	-	24	Enquire
005	1220879	SHIM	1220879 SHIM SPESSORE Dl REGISTRO 3.35 MM	-	24	Enquire
005	1220880	SHIM	1220880 SHIM SPESSORE Dl REGISTRO 3.40 MM	-	24	Enquire
005	1220895	SHIM	1220895 SHIM SPESSORE Dl REGISTRO 4.15 MM	-	24	Enquire
005	7M109320S	4.10 MM ADJUSTMENT SHIM	7M109320S 4.10 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 4.10 MM	$55.72	24
005	7M109320M	3.85 MM ADJUSTMENT SHIM	7M109320M 3.85 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 3.85 MM	$11.22	24
005	1220884	SHIM	1220884 SHIM SPESSORE Dl REGISTRO 3.60 MM	-	24	Enquire
005	7M109320N	3.90 MM ADJUSTMENT SHIM	7M109320N 3.90 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 3.90 MM	$55.72	24
005	1220891	SHIM	1220891 SHIM SPESSORE Dl REGISTRO 3.95 MM	-	24	Enquire
005	1220893	SHIM	1220893 SHIM SPESSORE Dl REGISTRO 4.05 MM	-	24	Enquire
005	1220892	Valve shims	1220892 Valve shims 4.00 MM	-	24	Enquire
005	1220898	SHIM	1220898 SHIM SPESSORE Dl REGISTRO 4.30 MM	-	24	Enquire
005	1220906	SHIM	1220906 SHIM SPESSORE Dl REGISTRO 4.70 MM	-	24	Enquire
005	1220904	SHIM	1220904 SHIM SPESSORE Dl REGISTRO 4.60 MM	-	24	Enquire
005	1220902	SHIM	1220902 SHIM SPESSORE Dl REGISTRO 4.50 MM	-	24	Enquire
005	1220882	SHIM	1220882 SHIM SPESSORE Dl REGISTRO 3.50 MM	-	24	Enquire
005	1220901	SHIM	1220901 SHIM SPESSORE Dl REGISTRO 4.45 MM	-	24	Enquire
005	1220900	SHIM	1220900 SHIM SPESSORE Dl REGISTRO 4.40 MM	-	24	Enquire
005	1220899	SHIM	1220899 SHIM SPESSORE Dl REGISTRO 4.35 MM	-	24	Enquire
005	1220903	SHIM	1220903 SHIM SPESSORE Dl REGISTRO 4.55 MM	-	24	Enquire
005	1220886	SHIM	1220886 SHIM SPESSORE Dl REGISTRO 3.70 MM	-	24	Enquire
005	1220885	SHIM	1220885 SHIM SPESSORE Dl REGISTRO 3.65 MM	-	24	Enquire
005	1220905	SHIM	1220905 SHIM SPESSORE Dl REGISTRO 4.65 MM	-	24	Enquire
005	1220883	SHIM	1220883 SHIM SPESSORE Dl REGISTRO 3.55 MM	-	24	Enquire
005	1220878	SHIM	1220878 SHIM SPESSORE Dl REGISTRO 3.30 MM	-	24	Enquire
005	1220897	SHIM	1220897 SHIM SPESSORE Dl REGISTRO 4.25 MM	-	24	Enquire
006	7M109623A	OUTER SPRING	7M109623A OUTER SPRING MOLLA ESTERNA	$19.15	24
007	7M109641	TAPPET UPPER PLATE	7M109641 TAPPET UPPER PLATE	$19.09	24
008	1220993	TAPPET PLATE	1220993 TAPPET PLATE PIATTELLO PUNTERIA INFERIORE	-	24	Enquire
009	7M109633A	INNER SPRING	7M109633A INNER SPRING MOLLA INTERNA	$6.20	24
010	1229714	INTAKE VALVE	1229714 INTAKE VALVE VALVOLA ASPIRAZIONE	$378.42	12
011	1229370	CAMSHAFT	1229370 CAMSHAFT ASSE A CAMME ASPIRAZIONE	$16,203.43	1
012	1229369	CAMSHAFT	1229369 CAMSHAFT ASSE A CAMME SCARICO	$1,625.32	1
013	8800604	BUSHING	8800604 BUSHING BOCCOLA	-	4	Enquire
014	8840802	HELI-COIL	8840802 HELI-COIL	$3.24	12
015	463400200	HEAD	463400200 HEAD TESTA SINISTRA	$22,704.64	1
016	1229718	VALVE GUIDE	1229718 VALVE GUIDE GUIDA VALVOLA SCARICO	$143.92	12
017	1229717	VALVE GUIDE	1229717 VALVE GUIDE GUIDA VALVOLA ASPIRAZIONE	$143.92	12
018	1220823	VALVE SEAT	1220823 VALVE SEAT SEDE VALVOLA SCARICO	$16.80	12
019	1229713	VALVE SEAT	1229713 VALVE SEAT SEDE VALVOLA ASPIRAZIONE	$79.04	12
020	8931412	PLUG	8931412 PLUG VITE	$94.42	2
021	1122089	DOWEL	1122089 DOWEL GRANO	$16.80 MSRP: ~~17.60~~ (4.5% off)	4
