Accelerator Cables (Valid For June 1992 Version)

Lamborghini Diablo (1990-1998)

Find Your Part

Lamborghini Diablo (1990-1998) - Accelerator Cables (Valid for June 1992 Version)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

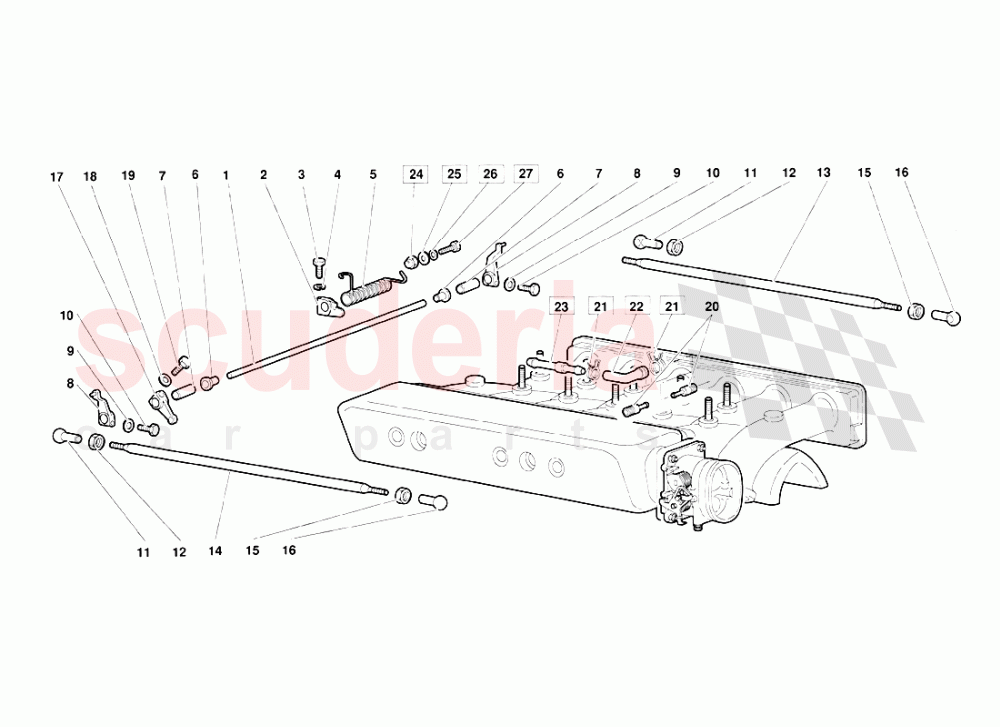

Accelerator Cables (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 1323135
SMALL SHAFT
(Valid for June 1992 version) ALBERINO 		- 1 Enquire
002 1331005
LEVER
(Valid for June 1992 version) LEVA 		- 1 Enquire
003 8100607
SCREW
(Valid for June 1992 version) VITE 		- 1 Enquire
004 8410603
WASHER
(Valid for June 1992 version) RONDELLA 		- 1 Enquire
005 1310961
SPRING
(Valid for June 1992 version) MOLLA 		- 1 Enquire
006 8801204
BUSHING
(Valid for June 1992 version) BOCCOLA 		- 2 Enquire
007 1323136
SPACER
(Valid for June 1992 version) DISTANZIALE 		- 2 Enquire
008 1311580
LEVER
(Valid for June 1992 version) LEVA 		- 2 Enquire
009 8410603
WASHER
(Valid for June 1992 version) RONDELLA 		- 2 Enquire
010 8100618
SCREW
(Valid for June 1992 version) VITE 		- 2 Enquire
011 1300804
COUPLING HEAD
(Valid for June 1992 version) TESTA GIUNTO SFERICO 		- 2 Enquire
012 N10690001
NUT (LEFT HAND THREAD)
(Valid for June 1992 version) DADO 		- 2 Enquire
013 1328014
LEFT TIE ROD
(Valid for June 1992 version) TIRANTE SINISTRO 		- 1 Enquire
014 1328016
RIGHT TIE ROD
(Valid for June 1992 version) TIRANTE DESTRO 		- 1 Enquire
015 8200501
NUT
(Valid for June 1992 version) DADO 		- 2 Enquire
016 1308539
COUPLING HEAD
(Valid for June 1992 version) TESTA GIUNTO SFERICO 		- 2 Enquire
017 1301093
LEVER
(Valid for June 1992 version) LEVA 		- 1 Enquire
018 8410603
WASHER
(Valid for June 1992 version) RONDELLA 		- 1 Enquire
019 8100621
SCREW
(Valid for June 1992 version) VITE 		- 1 Enquire
020 1328721
CONNECTION
(Valid for June 1992 version) RACCORDO 		- 2 Enquire
021 8830122
CLAMP
(Valid for June 1992 version) FASCETTA (dalla 12600) (part, compatibile sulle vetture precedenti) 		- 4 Enquire
022 7L131756
CONNECTOR
(Valid for June 1992 version) RACCORDO A 90 - (dalla 12600) (part, compatibile sulle vetture precedenti) 		- 2 Enquire
023 1329319
ADAPTER
(Valid for June 1992 version) RACCORDO (dalla 12600) (part, compatibile sulle vetture precedenti) 		- 2 Enquire
024 8200605
NUT
(Valid for June 1992 version) DADO (errata corrige) 		- 1 Enquire
025 8400606
WASHER
(Valid for June 1992 version) RONDELLA (errata corrige) 		- 1 Enquire
026 8410602
WASHER
(Valid for June 1992 version) RONDELLA (errata corrige) 		- 1 Enquire
027 8100625
BOLT 		- 1 Enquire
