Crankgears (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998)

View All

Lamborghini Diablo (1990-1998) - Crankgears (Valid for June 1992 Version)

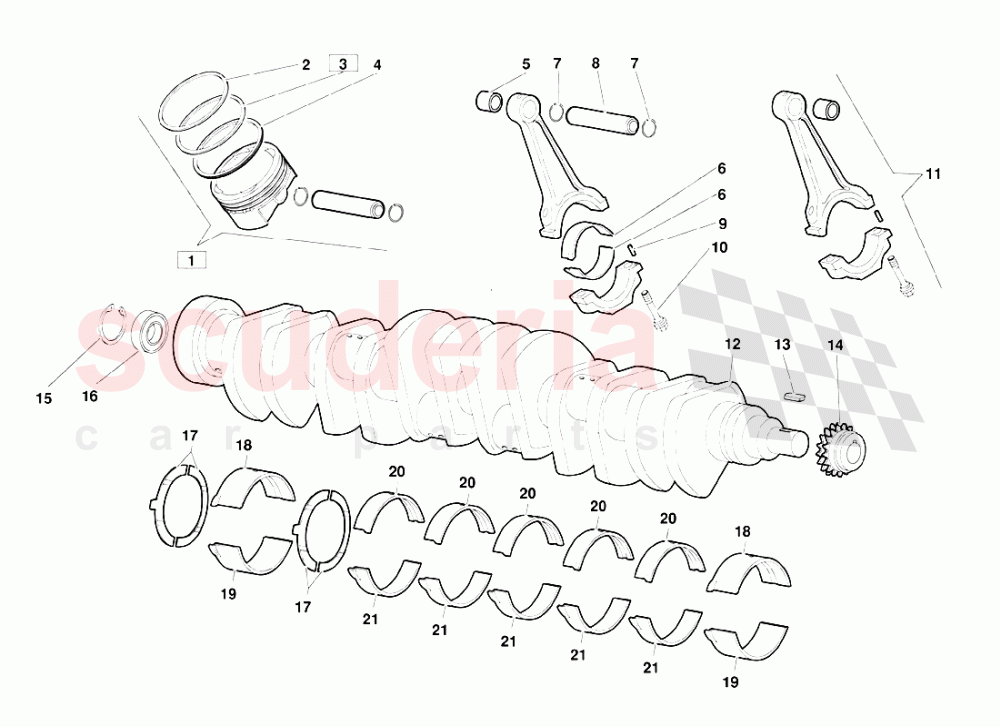

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1433968	PISTON - PISTONE COMPLETO	1433968 PISTON - PISTONE COMPLETO (Valid for June 1992 version) E COMPL. (dalla matricola 12467) (Particolare intercambiabile)	-	12	Enquire
001	1433968	PISTON - PISTONE COMPLETO	1433968 PISTON - PISTONE COMPLETO	-	12	Enquire
002	7M107311	PISTON RING	7M107311 PISTON RING (Valid for June 1992 version) SEGMENTO	-	12	Enquire
003	1429984	PISTON RING	1429984 PISTON RING (Valid for June 1992 version) SEGMENTO (fino matricola 12466) (compatibile solo con pistone 001430953)	-	12	Enquire
003	7M107313	PISTON RING	7M107313 PISTON RING (Valid for June 1992 version) SEGMENTO (dalla matricola 12467) (compatibile solo con pistone 001433968)	-	12	Enquire
004	7M107321	PISTON RING	7M107321 PISTON RING (Valid for June 1992 version) SEGMENTO	-	12	Enquire
005	1430768	BUSHING	1430768 BUSHING (Valid for June 1992 version) BRONZINA	-	12	Enquire
006	7M105701	Brass	7M105701 Brass	-	24	Enquire
007	1430537	RETAINER RING	1430537 RETAINER RING (Valid for June 1992 version) ANELLO RITEGNO	-	24	Enquire
008	1430536	PISTON PIN	1430536 PISTON PIN (Valid for June 1992 version) SPINOTTO	-	12	Enquire
009	8900308	DOWEL	8900308 DOWEL (Valid for June 1992 version) GRANO	-	24	Enquire
010	1422563	CON. ROD BOLT	1422563 CON. ROD BOLT (Valid for June 1992 version) BULLONE PER BIELLA	-	24	Enquire
011	1429577	CON ROD ASSY	1429577 CON ROD ASSY	-	12	Enquire
012	423400300	CRANKSHAFT	423400300 CRANKSHAFT	-	1	Enquire
013	8860506	KEY	8860506 KEY (Valid for June 1992 version) CHIAVETTA	-	1	Enquire
014	1224808	GEAR	1224808 GEAR (Valid for June 1992 version) INGRANAGGIO	-	1	Enquire
015	7M109381	RETAINING RING	7M109381 RETAINING RING (Valid for June 1992 version) ANELLO RITEGNO	-	1	Enquire
016	410109264	BEARING	410109264 BEARING (Valid for June 1992 version) CUSCINETTO	-	1	Enquire
017	7M105532	THRUST WASHER (PRICE EACH)	7M105532 THRUST WASHER (PRICE EACH) use:2x 07M105531A & 2x 07M105532	-	2	Enquire
018	7M105707	HALF BEARING	7M105707 HALF BEARING (Valid for June 1992 version) SEMICUSCINETTO	-	2	Enquire
019	7M105707A	HALF BEARING	7M105707A HALF BEARING (Valid for June 1992 version) SEMICUSCINETTO	-	2	Enquire
020	7M105707B	HALF BEARING	7M105707B HALF BEARING (Valid for June 1992 version) SEMICUSCINETTO	-	5	Enquire
021	7M105707C	HALF BEARING	7M105707C HALF BEARING (Valid for June 1992 version) SEMICUSCINETTO	-	5	Enquire
022	1436737	SET OF BUSHES	1436737 SET OF BUSHES STD	-	1	Enquire
