Accessories for Right Cylinder Head (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998)

View All

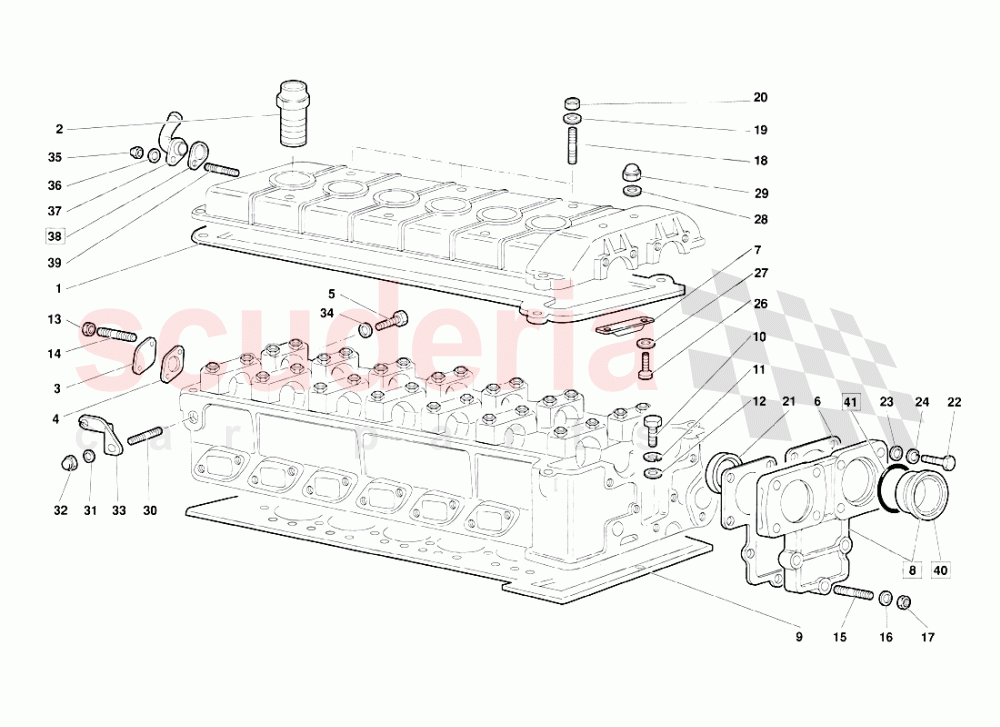

Lamborghini Diablo (1990-1998) - Accessories for Right Cylinder Head (Valid for June 1992 Version)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1120811	CAM COVER GASKET	1120811 CAM COVER GASKET	$180.52	1
002	1120857	UNION (until car 12957)	1120857 UNION (until car 12957) (Valid for June 1992 version) BOCCHETTONE	$152.63	6
003	1121252	FLANGE	1121252 FLANGE (Valid for June 1992 version) FLANGIA	$29.60	1
004	1121254	GASKET	1121254 GASKET (Valid for June 1992 version) GUARNIZIONE	$9.33	1
005	8100839	SCREW	8100839 SCREW (Valid for June 1992 version) VITE	$0.46 MSRP: ~~7.31~~ (93.7% off)	1
006	1125182	GASKET	1125182 GASKET (Valid for June 1992 version) GUARNIZIONE	$31.26	1
007	1131089	BRAKE PAD	1131089 BRAKE PAD (Valid for June 1992 version) GUIDA CATENA	$316.40	1
008	1129204	COVER	1129204 COVER (Valid for June 1992 version) COPERCHIO (fino alla12362)	$626.57	1
008	1132876	COVER	1132876 COVER (Valid for June 1992 version) COPERCHIO E BOCCOLA (dalla 12363) (particolare intercambiabile)	$701.00	1
009	11000987	GASKET	11000987 GASKET	$392.28	1
010	8100807	SCREW	8100807 SCREW (Valid for June 1992 version) VITE	$0.83 MSRP: ~~7.27~~ (88.6% off)	1
011	N0152785	WASHER IN STOCK	N0152785 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$0.40	1
012	N0122094	WASHER IN STOCK	N0122094 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$1.47 MSRP: ~~7.15~~ (79.4% off)	1
013	8200605	NUT IN STOCK	8200605 NUT (Valid for June 1992 version) DADO IN STOCK	$3.06	2
014	8300610	STUD BOLT	8300610 STUD BOLT (Valid for June 1992 version) PRIGIONIERO	$24.62 MSRP: ~~25.65~~ (4% off)	2
015	8300602	STUD	8300602 STUD (Valid for June 1992 version) PRIGIONIERO	$6.70 MSRP: ~~6.95~~ (3.6% off)	14
016	8410602	WASHER IN STOCK	8410602 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$44.87	14
017	8200605	NUT IN STOCK	8200605 NUT (Valid for June 1992 version) DADO IN STOCK	$3.06	14
018	8300613	STUD BOLT	8300613 STUD BOLT (Valid for June 1992 version) PRIGIONIERO	$4.96 MSRP: ~~5.10~~ (2.7% off)	2
019	N01152427	WASHER IN STOCK	N01152427 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$0.28	2
020	8200605	NUT IN STOCK	8200605 NUT (Valid for June 1992 version) DADO IN STOCK	$3.06	2
021	8614211	SEAL	8614211 SEAL (Valid for June 1992 version) ANELLO TENUTA	$21.91 MSRP: ~~22.90~~ (4.3% off)	1
022	8700608	SCREW IN STOCK	8700608 SCREW (Valid for June 1992 version) VITE IN STOCK	$0.55 MSRP: ~~7.36~~ (92.5% off)	4
023	N01152427	WASHER IN STOCK	N01152427 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$0.28	4
024	WHT002963	WASHER IN STOCK	WHT002963 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$0.13 MSRP: ~~7.38~~ (98.2% off)	4
025	8800604	BUSHING	8800604 BUSHING (Valid for June 1992 version) GRAND	-	1	Enquire
026	8700661	SCREW	8700661 SCREW (Valid for June 1992 version) VITE	$12.72	2
027	WHT003041	WASHER IN STOCK	WHT003041 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$0.89 MSRP: ~~7.31~~ (87.8% off)	2
028	8410602	WASHER IN STOCK	8410602 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$44.87	2
029	8200605	NUT IN STOCK	8200605 NUT (Valid for June 1992 version) DADO IN STOCK	$3.06	2
030	8300844	STUD	8300844 STUD (Valid for June 1992 version) PRIGIONIERO	$2.02	2
031	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 (Valid for June 1992 version) RONDELLA IN STOCK	$1.55	1
032	N0111849	NUT IN STOCK	N0111849 NUT (Valid for June 1992 version) DADO IN STOCK	$2.15 MSRP: ~~7.25~~ (70.3% off)	1
033	1130730	BRACKET	1130730 BRACKET (Valid for June 1992 version) FERMAGUAINA	$135.23	1
034	8400802	WASHER	8400802 WASHER (Valid for June 1992 version) RONDELLA	$1.50 MSRP: ~~7.27~~ (79.4% off)	1
035	8200605	NUT IN STOCK	8200605 NUT (Valid for June 1992 version) DADO IN STOCK	$3.06	1
036	8410602	WASHER IN STOCK	8410602 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$44.87	1
037	1132648	PIPE	1132648 PIPE (Valid for June 1992 version) TUBO	-	1	Enquire
038	1128365	GASKET	1128365 GASKET (Valid for June 1992 version) GUARNIZIONE (sostituisce 001129770)	$5.90	1
039	8300613	STUD BOLT	8300613 STUD BOLT (Valid for June 1992 version) PRIGIONIERO	$4.96 MSRP: ~~5.10~~ (2.7% off)	1
040	1132875	BUSHING	1132875 BUSHING (Valid for June 1992 version) BOCCOLA (dalla 12363)	$287.22	1
041	8605001	SEAL IN STOCK	8605001 SEAL (Valid for June 1992 version) ANELLO TENUTA (dalla 12363) IN STOCK	$1.13 MSRP: ~~7.28~~ (84.5% off)	1
