Crankcase of Lamborghini Lamborghini Diablo (1990-1998)

View All

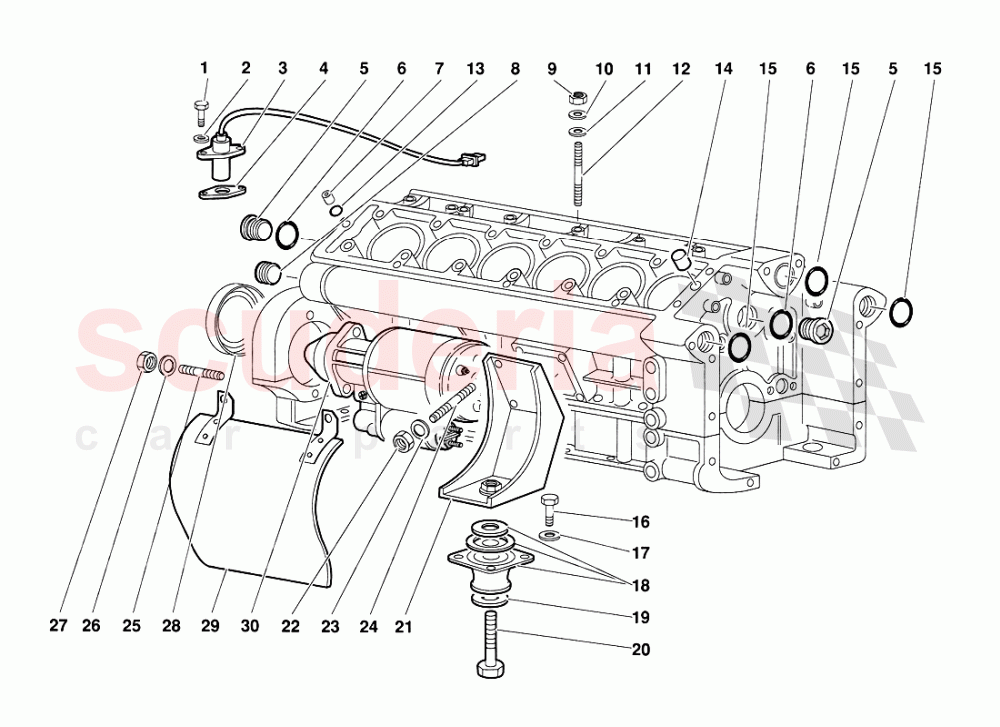

Lamborghini Diablo (1990-1998) - Crankcase

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	1532102	Oil seals	1532102 Oil seals Complete engine oil seal kit	$221.48	1
000	M00CSD522	Lamborghini Diablo 2WD Engine - EXCHANGE	M00CSD522 Lamborghini Diablo 2WD Engine - EXCHANGE (1992)	-	1	Enquire
001	N01020717	SCREW M5X12 IN STOCK	N01020717 SCREW M5X12 VITE IN STOCK	$0.67 MSRP: ~~7.31~~ (90.8% off)	2
002	8410502	WASHER	8410502 WASHER RONDELLA	$0.07 MSRP: ~~7.38~~ (99.1% off)	2
003	1628403	SENSOR - SENSORE FASE VOLANO	1628403 SENSOR - SENSORE FASE VOLANO E FASE VOLANO	-	1	Enquire
004	7M103899	0.2 mm ADJUSTMENT SHIM	7M103899 0.2 mm ADJUSTMENT SHIM DISTANZIALE SP 0,2 MM	$5.51	1
004	1628602	SPACER	1628602 SPACER DISTANZIALE SP 0,4 MM	-	1	Enquire
005	1830023	PLUG	1830023 PLUG TAPPO	-	2	Enquire
006	8603503	SEAL RING IN STOCK	8603503 SEAL RING ANELLOTENUTA IN STOCK	$4.16	2
007	1832161	DOWEL	1832161 DOWEL GRANO	$387.11	2
008	8933503	PLUG	8933503 PLUG TAPPO	-	2	Enquire
009	8200806	NUT	8200806 NUT DADO	$0.36 MSRP: ~~7.33~~ (95.1% off)	3
010	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.40	3
011	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 RONDELLA IN STOCK	$1.55	3
012	8300891	STUD	8300891 STUD PRIGIONIERO	$15.02 MSRP: ~~15.65~~ (4% off)	3
013	WHT003059	SEAL RING IN STOCK	WHT003059 SEAL RING ANELLOTENUTA IN STOCK	$155.91	2
014	8850804	DOWEL	8850804 DOWEL GRANO	$17.70	2
015	8603503	SEAL RING IN STOCK	8603503 SEAL RING ANELLOTENUTA IN STOCK	$4.16	3
016	8101031	SCREW	8101031 SCREW VITE	$0.92 MSRP: ~~7.24~~ (87.3% off)	8
017	8411005	WASHER IN STOCK	8411005 WASHER RONDELLA IN STOCK	$0.07	8
018	1824365	ELASTIC SUPPORT	1824365 ELASTIC SUPPORT SUPPORTO ELASTICO	$286.60	2
019	N91089301	WASHER	N91089301 WASHER RONDELLA	$131.04	1
020	4131471	SCREW	4131471 SCREW VITE	$33.70 MSRP: ~~35.25~~ (4.4% off)	2
021	1831476	LEFT SUPPORT	1831476 LEFT SUPPORT SUPPORTO SINISTRO	$386.49	1
021	1831475	RIGHT SUPPORT	1831475 RIGHT SUPPORT SUPPORTO DESTRO	-	1	Enquire
022	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.89	8
023	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.40	8
024	8300814	STUD BOLT	8300814 STUD BOLT PRIGIONIERO	$6.58 MSRP: ~~6.85~~ (3.9% off)	8
025	8301240	STUD	8301240 STUD PRIGIONIERO	$42.45	2
026	8411303	WASHER IN STOCK	8411303 WASHER RONDELLA IN STOCK	$2.85	2
027	8201211	NUT	8201211 NUT DADO	$8.17	2
028	7M103089	SEAL RING IN STOCK	7M103089 SEAL RING IN STOCK	$230.47	1
029	1632074	SHIELD	1632074 SHIELD PARATIA ANTICALORE	$647.65	1
030	1631754	STARTER MOTOR	1631754 STARTER MOTOR MOTORING AVVIAMENTO	$8,619.71	1
