INTAKE MANIFOLD of Lamborghini Lamborghini Aventador LP770 SVJ Coupe

View All

Lamborghini Aventador LP770 SVJ Coupe - INTAKE MANIFOLD

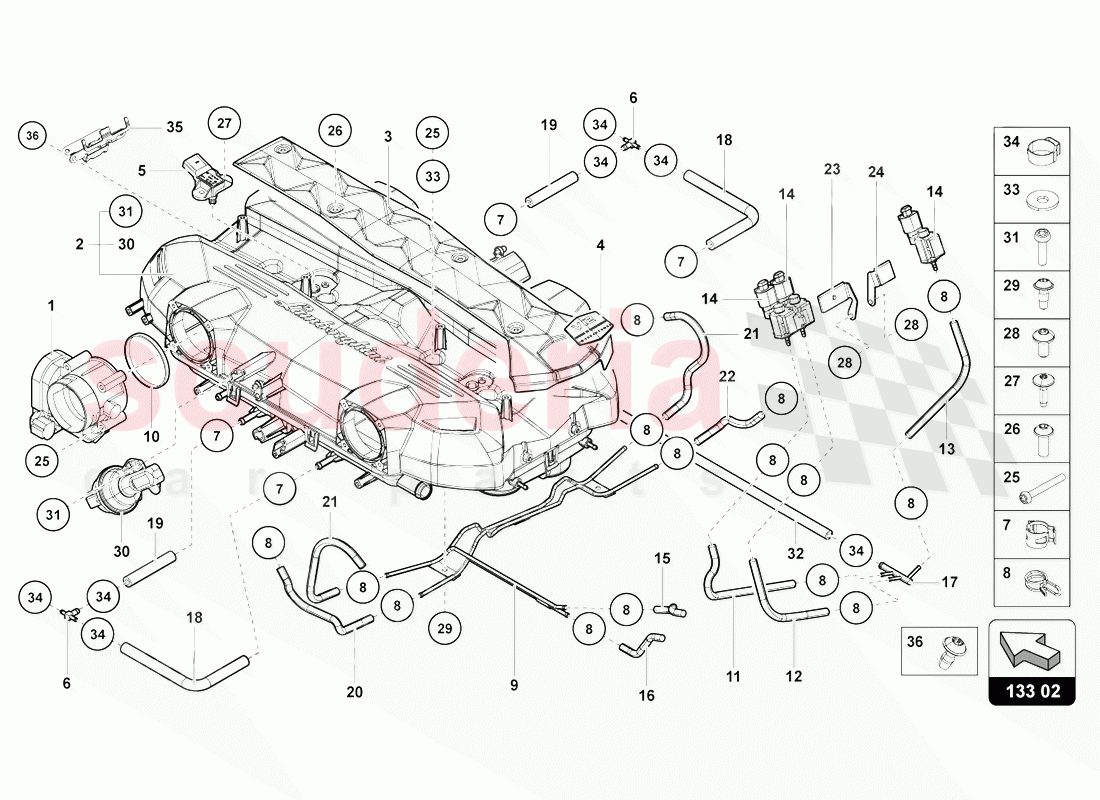

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7C133062C	THROTTLE VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M133433N	INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M103927L	COVER	Enquire	To Order
	7M103927K	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M103115L	EMBLEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6B906051	PRESSURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470133794	T-PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90686701	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400127217	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M133085C	VACUUM PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M129268	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M133727B	VACUUM HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470131209	PRESSURE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470131201	CONNECTING HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37906283C	SOLENOID VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M131846C	INTAKE HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M131847C	INTAKE HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470131585	CONNECTION PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M131850B	VACUUM HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M131208A	VACUUM HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M133605A	PIPE (BLUE)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M133727B	VACUUM HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M133605B	VACUUM HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M906287E	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M906303	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10470705	ROUND HD. SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10721401	OVAL HD. SELF-TAPP FITT. SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91136801	HEXAGON SOCKET HEAD PANEL BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90638102	ROUND HD. SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90925202	HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		THROTTLE VALVE POSITIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		1 SET BOLTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470131175	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01166623	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10196901	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470971280A	CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10683901	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7C133062C	THROTTLE VALVE	7C133062C THROTTLE VALVE	-	4	Enquire
2	7M133433N	INTAKE MANIFOLD	7M133433N INTAKE MANIFOLD	-	-	Enquire
3	7M103927L	COVER	7M103927L COVER STANDARD	-	1	Enquire
3	7M103927K	COVER	7M103927K COVER CARBON FIBER	-	1	Enquire
4	7M103115L	EMBLEM	7M103115L EMBLEM	-	1	Enquire
5	6B906051	PRESSURE SENSOR	6B906051 PRESSURE SENSOR	-	2	Enquire
6	470133794	T-PIECE	470133794 T-PIECE	-	2	Enquire
7	N90686701	SPRING BAND CLAMP	N90686701 SPRING BAND CLAMP 14X12	-	10	Enquire
8	400127217	CLAMP	400127217 CLAMP	-	18	Enquire
9	7M133085C	VACUUM PIPE	7M133085C VACUUM PIPE	-	1	Enquire
10	7M129268	Gasket	7M129268 Gasket	-	4	Enquire
11	7M133727B	VACUUM HOSE	7M133727B VACUUM HOSE	-	1	Enquire
12	470131209	PRESSURE PIPE	470131209 PRESSURE PIPE	-	1	Enquire
13	470131201	CONNECTING HOSE	470131201 CONNECTING HOSE	-	1	Enquire
14	37906283C	SOLENOID VALVE	37906283C SOLENOID VALVE BLACK	-	3	Enquire
15	7M131846C	INTAKE HOSE	7M131846C INTAKE HOSE	-	1	Enquire
16	7M131847C	INTAKE HOSE	7M131847C INTAKE HOSE	-	1	Enquire
17	470131585	CONNECTION PIECE	470131585 CONNECTION PIECE	-	1	Enquire
18	7M131850B	VACUUM HOSE	7M131850B VACUUM HOSE	-	2	Enquire
19	7M131208A	VACUUM HOSE	7M131208A VACUUM HOSE	-	2	Enquire
20	7M133605A	PIPE (BLUE)	7M133605A PIPE (BLUE) BLUE	-	2	Enquire
21	7M133727B	VACUUM HOSE	7M133727B VACUUM HOSE	-	2	Enquire
22	7M133605B	VACUUM HOSE	7M133605B VACUUM HOSE	-	1	Enquire
23	7M906287E	BRACKET	7M906287E BRACKET	-	1	Enquire
24	7M906303	SUPPORT	7M906303 SUPPORT	-	1	Enquire
25	N10470705	ROUND HD. SCREW	N10470705 ROUND HD. SCREW M6X50	-	16	Enquire
26	N10721401	OVAL HD. SELF-TAPP FITT. SCREW	N10721401 OVAL HD. SELF-TAPP FITT. SCREW 6X16	-	4	Enquire
27	N91136801	HEXAGON SOCKET HEAD PANEL BOLT	N91136801 HEXAGON SOCKET HEAD PANEL BOLT 4,2X11	-	4	Enquire
28	N90638102	ROUND HD. SCREW	N90638102 ROUND HD. SCREW M6X12	-	2	Enquire
29	N90925202	HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING	N90925202 HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING 6X16	-	2	Enquire
30	-	THROTTLE VALVE POSITIONER	THROTTLE VALVE POSITIONER CANNOT BE SOLD SEPARATELY	-	-	Enquire
31	-	1 SET BOLTS	1 SET BOLTS CANNOT BE SOLD SEPARATELY	-	-	Enquire
32	470131175	PIPE	470131175 PIPE	-	1	Enquire
33	N01166623	WASHER	N01166623 WASHER 6,4X18X1,6	-	4	Enquire
34	N10196901	CLAMP	N10196901 CLAMP	-	7	Enquire
35	470971280A	CARRIER	470971280A CARRIER	-	1	Enquire
36	N10683901	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	N10683901 OVAL SOCKET HEAD BOLT WITH HEX DRIVE TP6.0X12.0-Q-6X12	-	2	Enquire
