TIMING CHAIN of Lamborghini Lamborghini Aventador LP770 SVJ Coupe

View All

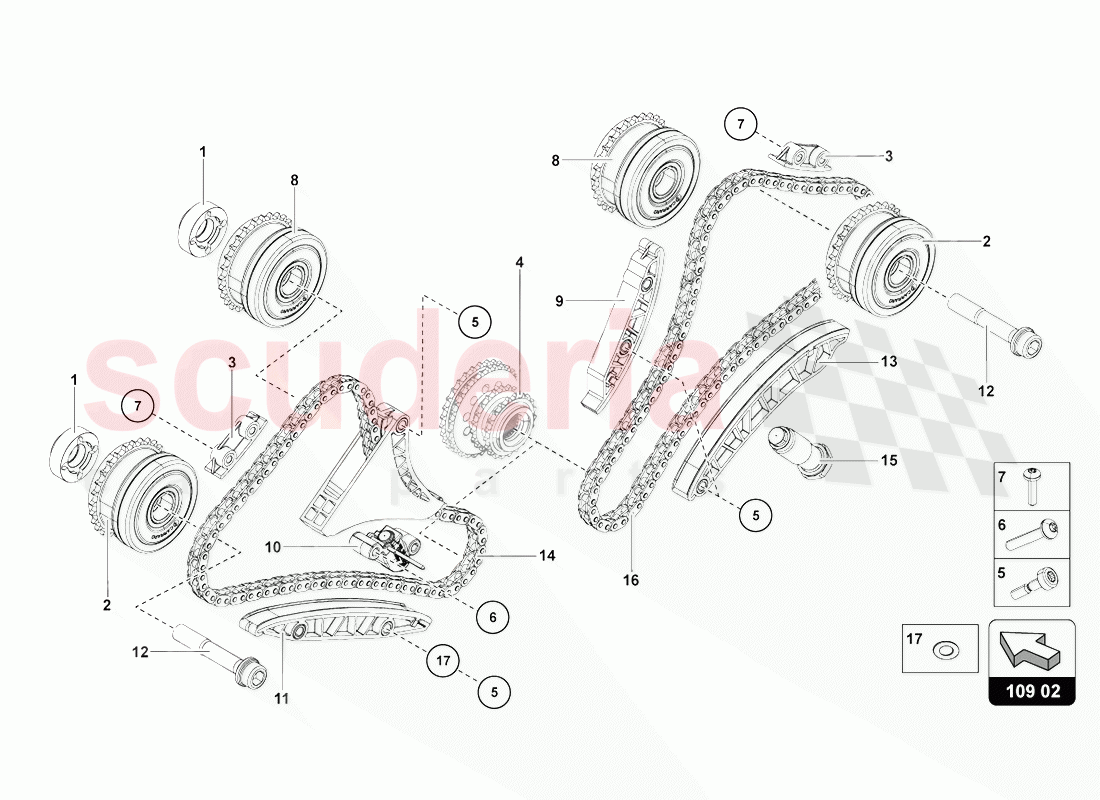

Lamborghini Aventador LP770 SVJ Coupe - TIMING CHAIN

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7M109423B	LENGTH-MEASURING DEVICE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7M109084L	CAMSHAFT ADJUSTER UNIT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7M109513B	SLIDING SHOE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
		GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT005008A	SOCKET HEAD BOLT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10554005	ROUND HD. SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91071701	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7M109083L	CAMSHAFT ADJUSTER UNIT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7M109469B	GUIDE BEARING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	57109217J	CHAIN TENSIONER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7M109538B	SLIDING SHOE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7M109177D	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7M109508B	SLIDE RAIL	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7M109450	Camshaft Timing Chain (upper)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3F109507B	CHAIN TENSIONER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7M109465	Camshaft Timing Chain (upper)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT003048	WASHER	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7M109423B	LENGTH-MEASURING DEVICE IN STOCK	7M109423B LENGTH-MEASURING DEVICE IN STOCK	-	4	Enquire
2	7M109084L	CAMSHAFT ADJUSTER UNIT IN STOCK	7M109084L CAMSHAFT ADJUSTER UNIT IN STOCK	-	2	Enquire
3	7M109513B	SLIDING SHOE IN STOCK	7M109513B SLIDING SHOE IN STOCK	-	2	Enquire
4	-	GEAR	GEAR SEE ILLUSTRATION :- 109-010	-	-	Enquire
5	WHT005008A	SOCKET HEAD BOLT IN STOCK	WHT005008A SOCKET HEAD BOLT M8X35 IN STOCK	-	6	Enquire
6	N10554005	ROUND HD. SCREW IN STOCK	N10554005 ROUND HD. SCREW M6X35 IN STOCK	-	2	Enquire
7	N91071701	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N91071701 HEXAGON SOCKET FLAT HEAD BOLT M6X25 IN STOCK	-	4	Enquire
8	7M109083L	CAMSHAFT ADJUSTER UNIT IN STOCK	7M109083L CAMSHAFT ADJUSTER UNIT IN STOCK	-	2	Enquire
9	7M109469B	GUIDE BEARING IN STOCK	7M109469B GUIDE BEARING IN STOCK	-	1	Enquire
10	57109217J	CHAIN TENSIONER IN STOCK	57109217J CHAIN TENSIONER IN STOCK	-	1	Enquire
11	7M109538B	SLIDING SHOE IN STOCK	7M109538B SLIDING SHOE IN STOCK	-	1	Enquire
12	7M109177D	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	7M109177D SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	-	4	Enquire
13	7M109508B	SLIDE RAIL IN STOCK	7M109508B SLIDE RAIL IN STOCK	-	1	Enquire
14	7M109450	Camshaft Timing Chain (upper)	7M109450 Camshaft Timing Chain (upper) UPPER	-	1	Enquire
15	3F109507B	CHAIN TENSIONER IN STOCK	3F109507B CHAIN TENSIONER IN STOCK	-	1	Enquire
16	7M109465	Camshaft Timing Chain (upper)	7M109465 Camshaft Timing Chain (upper) UPPER	-	1	Enquire
17	WHT003048	WASHER IN STOCK	WHT003048 WASHER 22.0X28.0X1. 5 IN STOCK	-	1	Enquire
