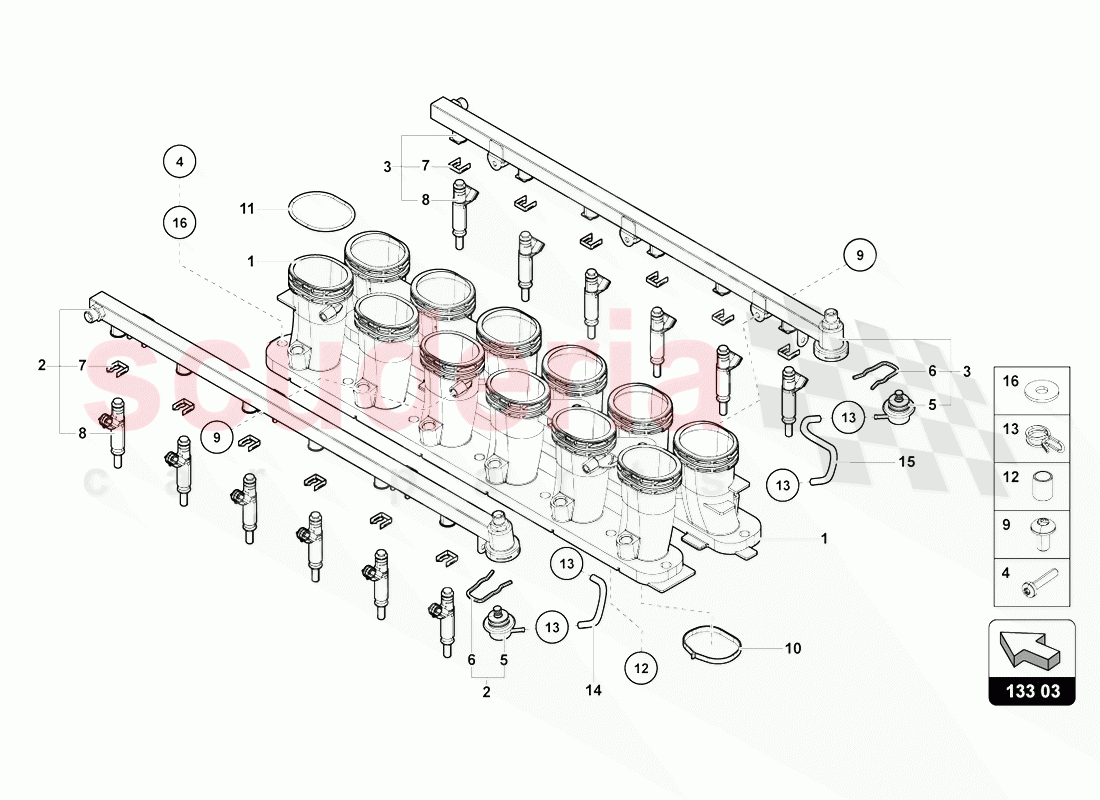

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7M133110A	INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M133681M	FUEL INJECTOR WITH INJECTOR RAILS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M133681L	FUEL INJECTOR WITH INJECTOR RAILS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10413405	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		PRESSURE REGULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		RETAINING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M133047A	RETAINING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M906031C	INJECTION VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90638102	ROUND HD. SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M129718B	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M133155B	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT003019	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400127217	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M133264B	VACUUM HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M133264C	VACUUM HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01166623	WASHER	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7M133110A	INTAKE MANIFOLD	7M133110A INTAKE MANIFOLD	-	-	Enquire
2	7M133681M	FUEL INJECTOR WITH INJECTOR RAILS	7M133681M FUEL INJECTOR WITH INJECTOR RAILS RIGHT	-	-	Enquire
3	7M133681L	FUEL INJECTOR WITH INJECTOR RAILS	7M133681L FUEL INJECTOR WITH INJECTOR RAILS LEFT	-	-	Enquire
4	N10413405	HEXAGON SOCKET FLAT HEAD BOLT	N10413405 HEXAGON SOCKET FLAT HEAD BOLT M6X25	-	14	Enquire
5	-	PRESSURE REGULATOR	PRESSURE REGULATOR CANNOT BE SOLD SEPARATELY, INCLUDED IN REF. 2-3	-	-	Enquire
6	-	RETAINING CLIP	RETAINING CLIP CANNOT BE SOLD SEPARATELY, INCLUDED IN REF. 2-3	-	-	Enquire
7	7M133047A	RETAINING CLIP	7M133047A RETAINING CLIP	-	12	Enquire
8	7M906031C	INJECTION VALVE	7M906031C INJECTION VALVE	-	12	Enquire
9	N90638102	ROUND HD. SCREW	N90638102 ROUND HD. SCREW M6X12	-	6	Enquire
10	7M129718B	SEAL	7M129718B SEAL	-	12	Enquire
11	7M133155B	SEAL	7M133155B SEAL	-	12	Enquire
12	WHT003019	BUSH	WHT003019 BUSH 6,25X8X10	-	4	Enquire
13	400127217	CLAMP	400127217 CLAMP	-	4	Enquire
14	7M133264B	VACUUM HOSE	7M133264B VACUUM HOSE	-	1	Enquire
15	7M133264C	VACUUM HOSE	7M133264C VACUUM HOSE	-	1	Enquire
16	N01166623	WASHER	N01166623 WASHER 6,4X18X1,6	-	14	Enquire
