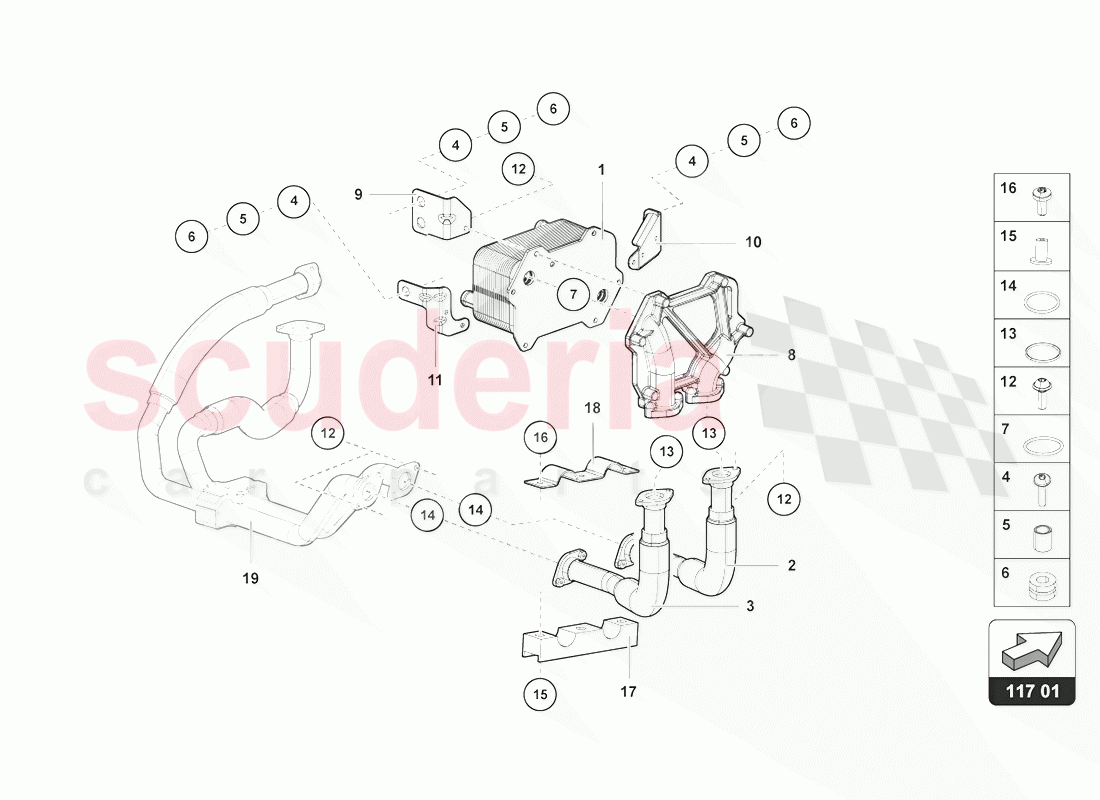

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	420117022A	OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470115663B	OIL HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470115229A	OIL HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90969901	HEX SOCKET HEAD LOCATING BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400121129A	SPACER HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M121585	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT003368A	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470117187A	RETAINER FOR OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470117190	RETAINER FOR OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470117098A	RETAINER FOR OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470117097	RETAINER FOR OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007432	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT004894	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470115621	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10405604	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470115242	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470117150A	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		OIL HOSE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	420117022A	OIL COOLER	420117022A OIL COOLER	-	1	Enquire
2	470115663B	OIL HOSE	470115663B OIL HOSE	-	1	Enquire
3	470115229A	OIL HOSE	470115229A OIL HOSE	-	1	Enquire
4	N90969901	HEX SOCKET HEAD LOCATING BOLT	N90969901 HEX SOCKET HEAD LOCATING BOLT M6X25	-	3	Enquire
5	400121129A	SPACER HOLDER	400121129A SPACER HOLDER	-	5	Enquire
6	7M121585	VIBRATION DAMPER	7M121585 VIBRATION DAMPER	-	2	Enquire
7	WHT003368A	O-RING	WHT003368A O-RING 26.0X2.00-N	-	2	Enquire
8	470117187A	RETAINER FOR OIL COOLER	470117187A RETAINER FOR OIL COOLER	-	1	Enquire
9	470117190	RETAINER FOR OIL COOLER	470117190 RETAINER FOR OIL COOLER	-	1	Enquire
10	470117098A	RETAINER FOR OIL COOLER	470117098A RETAINER FOR OIL COOLER RIGHT	-	1	Enquire
11	470117097	RETAINER FOR OIL COOLER	470117097 RETAINER FOR OIL COOLER LEFT	-	1	Enquire
12	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M6X18	-	14	Enquire
13	WHT007432	O-RING	WHT007432 O-RING 30X2	-	2	Enquire
14	WHT004894	SEAL RING	WHT004894 SEAL RING 31.42X2.62	-	2	Enquire
15	470115621	GROMMET	470115621 GROMMET	-	3	Enquire
16	N10405604	OVAL HEXAGON SOCKET HEAD BOLT	N10405604 OVAL HEXAGON SOCKET HEAD BOLT M6X14	-	3	Enquire
17	470115242	BRACKET	470115242 BRACKET	-	1	Enquire
18	470117150A	BRACKET	470117150A BRACKET	-	1	Enquire
19	-	OIL HOSE	OIL HOSE SEE ILLUSTRATION :- 115-010	-	-	Enquire
