Name: TIMING CHAIN
Rating: 5.0 (1 reviews)

TIMING CHAIN of Lamborghini Lamborghini Aventador LP770 SVJ Coupe

View All

Lamborghini Aventador LP770 SVJ Coupe - TIMING CHAIN

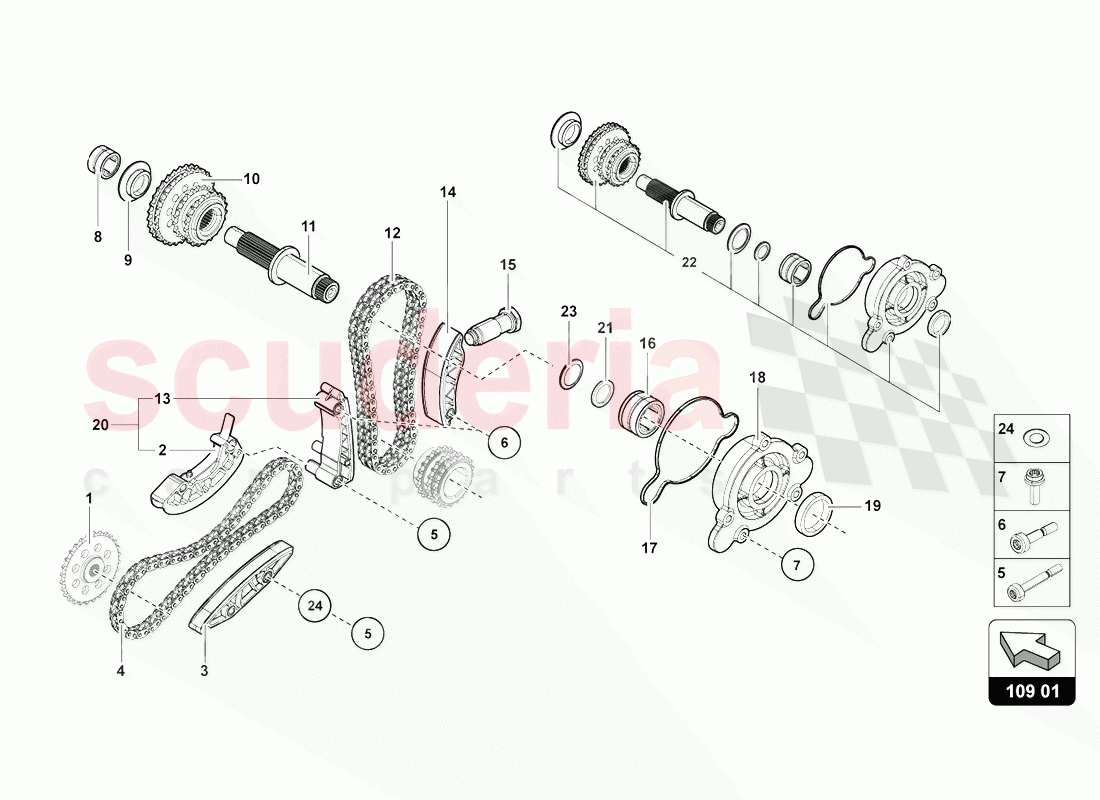

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
		GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		CHAIN TENSIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M115235B	SLIDING SHOE	$1,982.53	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109120B	LOWER TIMING CHAIN	$182.81	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT005010A	COUNTERSUNK BOLT	$53.43	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT005401A	COUNTERSUNK BOLT	$50.40	To Order

Photo	Part No	Description	Price (each)	Stock
	N10689302	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$3.11	To Order

Photo	Part No	Description	Price (each)	Stock
		BEARING SHELL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109350B	LENGTH-MEASURING DEVICE	$337.37	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109567D	GEAR	$533.60	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109225G	AXLE SHAFT	$2,540.33	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109229A	TIMING CHAIN	$1,458.36	To Order

Photo	Part No	Description	Price (each)	Stock
		GLIDE PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109077C	CHAIN TENSIONER	$1,315.86	To Order

Photo	Part No	Description	Price (each)	Stock
	3F109507B	CHAIN TENSIONER	$89.23	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109248	BEARING SHELL	$264.48	To Order

Photo	Part No	Description	Price (each)	Stock
	7M103147	GASKET FOR FLAP	$31.59	To Order

Photo	Part No	Description	Price (each)	Stock
	7M103171F	COVER FOR TIMING CASE	$2,311.83	To Order

Photo	Part No	Description	Price (each)	Stock
	7M103070A	SEAL	$127.46	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109498	CHAIN TENSIONER	$1,397.86	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109133C	BRACKET	$30.13	To Order

Photo	Part No	Description	Price (each)	Stock
		GEAR SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109264A	MOUNTING	$206.16	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT003048	WASHER 22 X 28 X 1.5	$3.67	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	-	GEAR	GEAR NOT AVAILABLE	-	-	Enquire
2	-	CHAIN TENSIONER	CHAIN TENSIONER CANNOT BE SOLD SEPARATELY, INCLUDED IN REF. 20	-	-	Enquire
3	7M115235B	SLIDING SHOE	7M115235B SLIDING SHOE	$1,982.53	1
4	7M109120B	LOWER TIMING CHAIN	7M109120B LOWER TIMING CHAIN	$182.81	1
5	WHT005010A	COUNTERSUNK BOLT	WHT005010A COUNTERSUNK BOLT M8X60	$53.43	3
6	WHT005401A	COUNTERSUNK BOLT	WHT005401A COUNTERSUNK BOLT M8X44	$50.40	2
7	N10689302	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10689302 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X25	$3.11 MSRP: ~~7.17~~ (56.6% off)	5
8	-	BEARING SHELL	BEARING SHELL NOT AVAILABLE	-	-	Enquire
9	7M109350B	LENGTH-MEASURING DEVICE	7M109350B LENGTH-MEASURING DEVICE	$337.37	1
10	7M109567D	GEAR	7M109567D GEAR	$533.60	1
11	7M109225G	AXLE SHAFT	7M109225G AXLE SHAFT	$2,540.33	1
12	7M109229A	TIMING CHAIN	7M109229A TIMING CHAIN LOWER	$1,458.36	1
13	-	GLIDE PIECE	GLIDE PIECE CANNOT BE SOLD SEPARATELY, INCLUDED IN REF. 20	-	-	Enquire
14	7M109077C	CHAIN TENSIONER	7M109077C CHAIN TENSIONER	$1,315.86	1
15	3F109507B	CHAIN TENSIONER	3F109507B CHAIN TENSIONER	$89.23	1
16	7M109248	BEARING SHELL	7M109248 BEARING SHELL	$264.48	1
17	7M103147	GASKET FOR FLAP	7M103147 GASKET FOR FLAP	$31.59	1
18	7M103171F	COVER FOR TIMING CASE	7M103171F COVER FOR TIMING CASE	$2,311.83	1
19	7M103070A	SEAL	7M103070A SEAL	$127.46	1
20	7M109498	CHAIN TENSIONER	7M109498 CHAIN TENSIONER	$1,397.86	1
21	7M109133C	BRACKET	7M109133C BRACKET	$30.13	1
22	-	GEAR SET	GEAR SET VALID FOR MY12	-	-	Enquire
23	7M109264A	MOUNTING	7M109264A MOUNTING	$206.16	1
24	WHT003048	WASHER 22 X 28 X 1.5	WHT003048 WASHER 22 X 28 X 1.5 22.0X28.0X1. 5	$3.67	1
