Name: CYLINDER HEAD WITH STUDS AND CENTERING SLEEVE
Rating: 4.4 (1 reviews)

CYLINDER HEAD WITH STUDS AND CENTERING SLEEVE of Lamborghini Lamborghini Aventador LP770 SVJ Coupe

View All

Lamborghini Aventador LP770 SVJ Coupe - CYLINDER HEAD WITH STUDS AND CENTERING SLEEVE

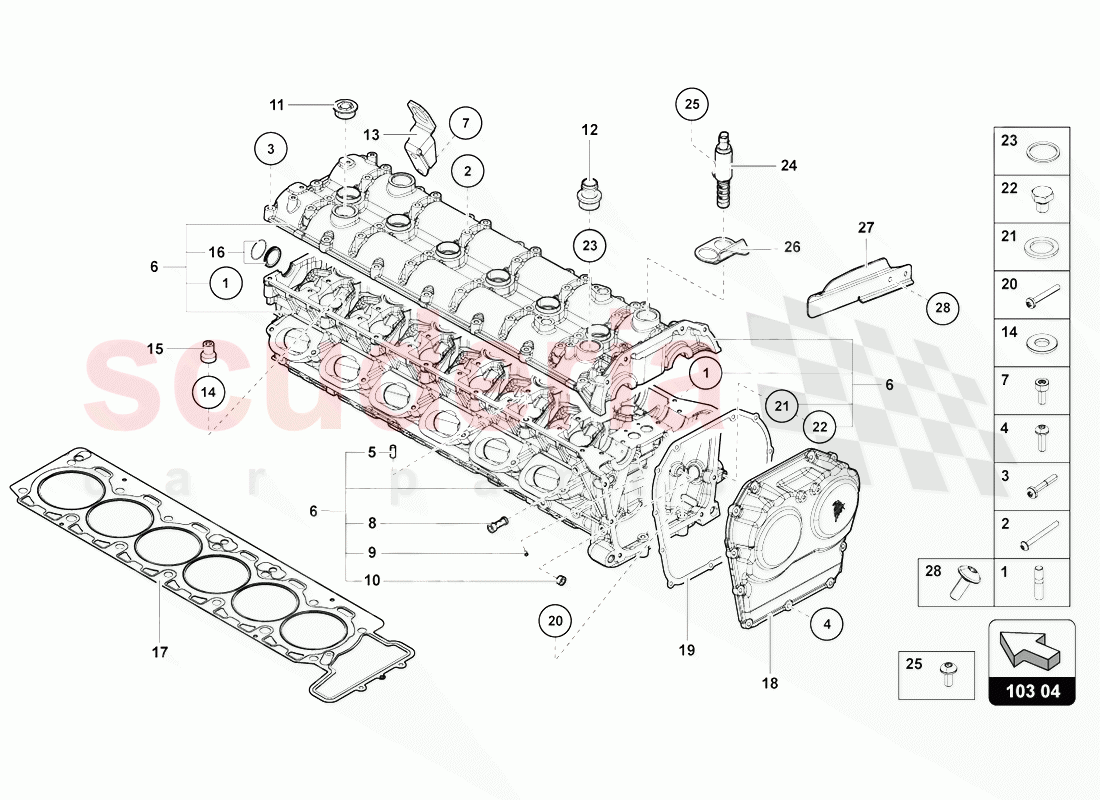

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	WHT003028	THREADED PIN	$22.30	To Order

Photo	Part No	Description	Price (each)	Stock
	N91089601	HEXAGON SOCKET FLAT HEAD BOLT M6 X 60	$2.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91127601	ROUND HEAD SCREW	$0.80	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7M101110	CENTRE SLEEVE	$637.08	To Order

Photo	Part No	Description	Price (each)	Stock
	7M103066L	CYLINDER HEAD	$14,004.98	To Order

Photo	Part No	Description	Price (each)	Stock
	N91137001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$16.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7M109291E	BUNGS	$118.15	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109291	BUNGS	$50.56	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109291D	BUNGS	$98.27	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7M103037A	BUNGS	$69.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7M103037C	CONNECTION PIECE	$70.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7M199080D	HOOKS	$50.95	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT004875A	WASHER	$360.22	To Order

Photo	Part No	Description	Price (each)	Stock
	7M103448D	NUT	$266.81	To Order

Photo	Part No	Description	Price (each)	Stock
	7M103113B	END CAP	$296.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7M103148E	CYLINDER HEAD GASKET	$5,564.52	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109153M	END CAP	$2,392.47	To Order
		END CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109091D	SEAL	$215.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10405702	HEXAGON SOCKET HEAD BOLT	$0.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N0138302	Washer Copper 8 x 1MM	$3.27	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N0102358	HEXAGON BOLT	$154.58	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000674	WASHER	$2.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6E109257AA	CONTROL VALVE	$145.10	To Order

Photo	Part No	Description	Price (each)	Stock
	N91068201	HEXAGON SOCKET FLAT HEAD BOLT	$0.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7M109185	ARM	$34.02	To Order

Photo	Part No	Description	Price (each)	Stock
	7M133927A	HEAT SHIELD	$22.52	To Order

Photo	Part No	Description	Price (each)	Stock
	N90780903	OVAL HEXAGON SOCKET HEAD BOLT	$0.98	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	WHT003028	THREADED PIN	WHT003028 THREADED PIN M8X25	$22.30	18
2	N91089601	HEXAGON SOCKET FLAT HEAD BOLT M6 X 60 IN STOCK	N91089601 HEXAGON SOCKET FLAT HEAD BOLT M6 X 60 M6X60 IN STOCK	$2.30	28
3	N91127601	ROUND HEAD SCREW IN STOCK	N91127601 ROUND HEAD SCREW M6X35X16 IN STOCK	$0.80	15
4	N10124306	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10124306 HEXAGON SOCKET FLAT HEAD BOLT M6X20 IN STOCK	$1.60	11
5	7M101110	CENTRE SLEEVE	7M101110 CENTRE SLEEVE	$637.08	4
6	7M103066L	CYLINDER HEAD	7M103066L CYLINDER HEAD RIGHT	$14,004.98	1
7	N91137001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N91137001 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10X28 IN STOCK	$16.74	2
8	7M109291E	BUNGS	7M109291E BUNGS	$118.15	2
9	7M109291	BUNGS	7M109291 BUNGS	$50.56	2
10	7M109291D	BUNGS IN STOCK	7M109291D BUNGS IN STOCK	$98.27	8
11	7M103037A	BUNGS IN STOCK	7M103037A BUNGS IN STOCK	$69.35	3
12	7M103037C	CONNECTION PIECE IN STOCK	7M103037C CONNECTION PIECE IN STOCK	$70.39	1
13	7M199080D	HOOKS	7M199080D HOOKS	$50.95	1
14	WHT004875A	WASHER	WHT004875A WASHER 11,5X25,0X2,5	$360.22	14
15	7M103448D	NUT	7M103448D NUT M11X1	$266.81	14
16	7M103113B	END CAP IN STOCK	7M103113B END CAP IN STOCK	$296.40	2
17	7M103148E	CYLINDER HEAD GASKET	7M103148E CYLINDER HEAD GASKET RIGHT	$5,564.52	1
18	7M109153M	END CAP	7M109153M END CAP RIGHT	$2,392.47	1
18	-	END CAP	END CAP NOT AVAILABLE-RIGHT	-	-	Enquire
19	7M109091D	SEAL IN STOCK	7M109091D SEAL RIGHT IN STOCK	$215.19	1
20	N10405702	HEXAGON SOCKET HEAD BOLT IN STOCK	N10405702 HEXAGON SOCKET HEAD BOLT M6X45 IN STOCK	$0.92	2
21	N0138302	Washer Copper 8 x 1MM IN STOCK	N0138302 Washer Copper 8 x 1MM 8X12 IN STOCK	$3.27 MSRP: ~~7.33~~ (55.4% off)	2
22	N0102358	HEXAGON BOLT	N0102358 HEXAGON BOLT M8X10	$154.58	2
23	WHT000674	WASHER IN STOCK	WHT000674 WASHER 30X36X1 IN STOCK	$2.69 MSRP: ~~7.04~~ (61.8% off)	1
24	6E109257AA	CONTROL VALVE	6E109257AA CONTROL VALVE	$145.10	2
25	N91068201	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N91068201 HEXAGON SOCKET FLAT HEAD BOLT M4X10 IN STOCK	$0.49 MSRP: ~~7.34~~ (93.3% off)	2
26	7M109185	ARM	7M109185 ARM	$34.02	1
27	7M133927A	HEAT SHIELD	7M133927A HEAT SHIELD	$22.52	1
28	N90780903	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90780903 OVAL HEXAGON SOCKET HEAD BOLT M6X16 IN STOCK	$0.98	2

Cylinder Head With Studs And Centering Sleeve

Lamborghini Aventador LP770 SVJ Coupe

Lamborghini Aventador LP770 SVJ Coupe - CYLINDER HEAD WITH STUDS AND CENTERING SLEEVE
