DOORS 2 of Lamborghini Lamborghini Aventador LP700 Roadster

View All

Lamborghini Aventador LP700 Roadster - DOORS 2

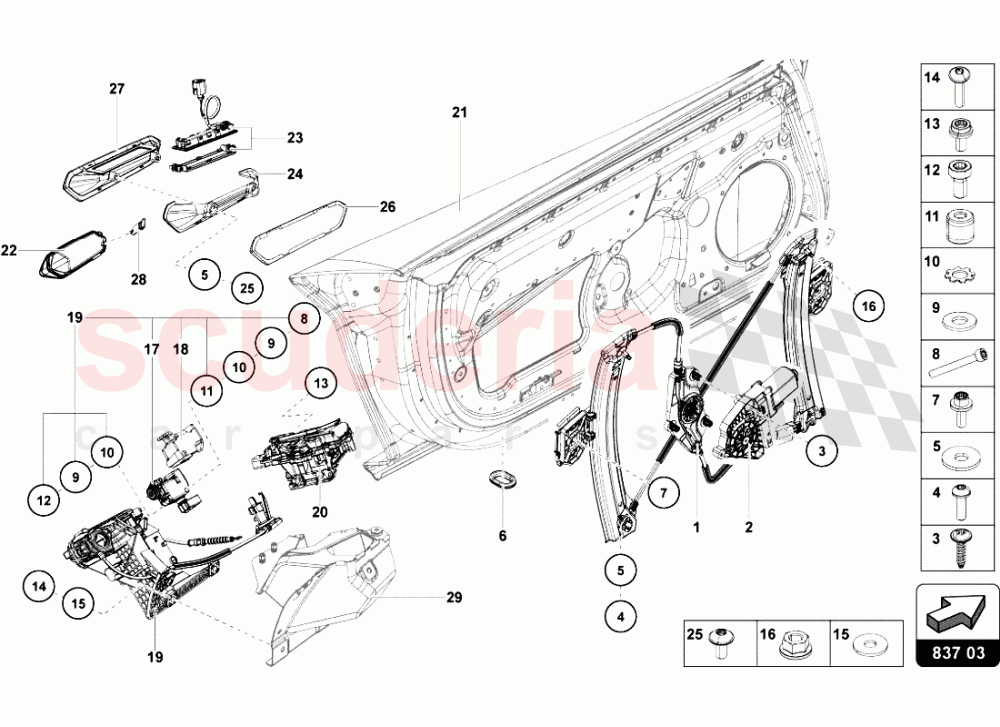

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	470837398G	Window Regulator Without Motor (right)	470837398G Window Regulator Without Motor (right)	-	1	Enquire
001	470837397B	Window Regulator Without Motor (left)	470837397B Window Regulator Without Motor (left)	-	1	Enquire
002	8K0959802B	WINDOW REGULATOR MOTOR	8K0959802B WINDOW REGULATOR MOTOR	-	1	Enquire
002	8K0959801B	WINDOW REGULATOR MOTOR	8K0959801B WINDOW REGULATOR MOTOR	-	1	Enquire
003	8Z0837691C	HEXAGON SOCKET HEAD PANEL BOLT	8Z0837691C HEXAGON SOCKET HEAD PANEL BOLT	-	6	Enquire
004	N10124308	OVAL HEXAGON SOCKET HEAD BOLT	N10124308 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
005	N01166623	WASHER	N01166623 WASHER	-	8	Enquire
006	470813591	COVER	470813591 COVER	-	4	Enquire
007	N91104901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	N91104901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	-	4	Enquire
013	N10664901	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N10664901 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	-	6	Enquire
014	N10632202	ROUND HD. SCREW	N10632202 ROUND HD. SCREW	-	6	Enquire
015	WHT002961	WASHER	WHT002961 WASHER	-	6	Enquire
016	WHT000127	HEXAGON NUT	WHT000127 HEXAGON NUT	-	4	Enquire
019	471837012	DOOR LOCK WITH DOOR CONTACT SWITCH	471837012 DOOR LOCK WITH DOOR CONTACT SWITCH LHD	-	1	Enquire
019	472837011	DOOR LOCK WITH DOOR CONTACT SWITCH	472837011 DOOR LOCK WITH DOOR CONTACT SWITCH RHD	-	1	Enquire
019	472837012	DOOR LOCK WITH DOOR CONTACT SWITCH	472837012 DOOR LOCK WITH DOOR CONTACT SWITCH RHD	-	1	Enquire
019	471837011	DOOR LOCK WITH DOOR CONTACT SWITCH	471837011 DOOR LOCK WITH DOOR CONTACT SWITCH LHD	-	1	Enquire
020	471837016B	DOOR LOCK WITH DOOR CONTACT SWITCH	471837016B DOOR LOCK WITH DOOR CONTACT SWITCH LHD	-	1	Enquire
020	472837015B	DOOR LOCK WITH DOOR CONTACT SWITCH	472837015B DOOR LOCK WITH DOOR CONTACT SWITCH RHD	-	1	Enquire
020	471837015B	DOOR LOCK WITH DOOR CONTACT SWITCH	471837015B DOOR LOCK WITH DOOR CONTACT SWITCH LHD	-	1	Enquire
020	472837016B	DOOR LOCK WITH DOOR CONTACT SWITCH	472837016B DOOR LOCK WITH DOOR CONTACT SWITCH RHD	-	1	Enquire
022	472837599G	REMOVABLE LID	472837599G REMOVABLE LID	-	1	Enquire
022	471837599G	REMOVABLE LID	471837599G REMOVABLE LID	-	1	Enquire
023	470827566A	OPERATING MECHANISM WITH MICRO SWITCH ARRIVING SOON	470827566A OPERATING MECHANISM WITH MICRO SWITCH ARRIVING SOON	-	2	Enquire
024	470831636A	Bracket For Grab Handle (right)	470831636A Bracket For Grab Handle (right)	-	1	Enquire
024	470831635B	BRACKET DOOR HANDLE	470831635B BRACKET DOOR HANDLE	-	1	Enquire
025	N10586401	OVAL HEXAGON SOCKET HEAD BOLT	N10586401 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
026	470837522	Seal (right)	470837522 Seal (right)	-	1	Enquire
026	470837521	Seal (left)	470837521 Seal (left)	-	1	Enquire
027	470837160B	DOOR HANDLE, EXTERIOR	470837160B DOOR HANDLE, EXTERIOR	-	1	Enquire
027	470837159	LH HANDLE	470837159 LH HANDLE	-	1	Enquire
028	470853582	SECURING ELEMENT	470853582 SECURING ELEMENT	-	2	Enquire
