Lamborghini Aventador LP700 Roadster - FRONT BUMPERS 2

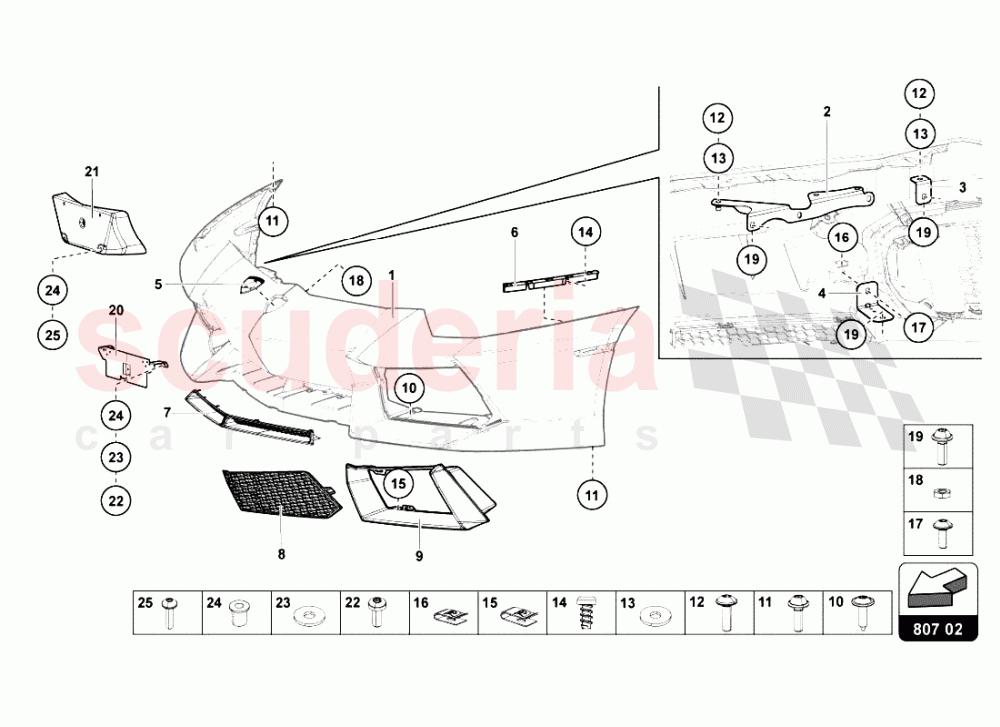

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
003	470807481C	ARM	470807481C ARM	$28.42	2
004	470807129A	ARM	470807129A ARM	$49.40	2
005	4T0853745A	LAMBORGHINI EMBLEM IN STOCK	4T0853745A LAMBORGHINI EMBLEM IN STOCK	$455.38	1
006	470807193E	ARM IN STOCK	470807193E ARM IN STOCK	$307.80	1
006	470807194E	ARM IN STOCK	470807194E ARM IN STOCK	$307.80	1
007	470807639A	Grid IN STOCK	470807639A Grid IN STOCK	$166.00	1
008	470807681	Left Front Grid IN STOCK	470807681 Left Front Grid IN STOCK	$343.62	1
008	470807682	Grille Front RH IN STOCK	470807682 Grille Front RH IN STOCK	$360.96	1
009	470807820A	Rh Frame (external Carbon )	470807820A Rh Frame (external Carbon )	$5,504.02	1
009	470807819	Lh Frame	470807819 Lh Frame	$2,016.13	1
009	470807820	Rh Frame	470807820 Rh Frame	$2,016.13	1
009	470807819A	Lh Frame (external Carbon )	470807819A Lh Frame (external Carbon )	$5,504.02	1
010	N90698605	HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	N90698605 HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	$1.53 MSRP: ~~7.35~~ (79.2% off)	8
011	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$4.38	4
012	N10661002	HEX SOCKET OVAL HEAD COLLARED IN STOCK	N10661002 HEX SOCKET OVAL HEAD COLLARED IN STOCK	$0.76 MSRP: ~~7.27~~ (89.5% off)	6
013	N01167026	WASHER IN STOCK	N01167026 WASHER IN STOCK	$1.08 MSRP: ~~7.21~~ (85% off)	6
014	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$4.38	4
015	N0154487	SPEED NUT IN STOCK	N0154487 SPEED NUT IN STOCK	$0.53	8
016	N90688703	SPEED NUT IN STOCK	N90688703 SPEED NUT IN STOCK	$1.22	2
017	N90780903	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90780903 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$0.98	2
018	N0110027	HEXAGON NUT IN STOCK	N0110027 HEXAGON NUT IN STOCK	$0.22 MSRP: ~~7.37~~ (97% off)	1
019	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$4.38	10
020	470807287D	License Plate Holder	470807287D License Plate Holder	$151.22	1
021	470807287C	License Plate Holder (valid For A Market Chinese)	470807287C License Plate Holder (valid For A Market Chinese)	$510.75	1
022	N10451404	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10451404 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$0.74 MSRP: ~~7.30~~ (89.9% off)	3
023	N01166623	WASHER IN STOCK	N01166623 WASHER IN STOCK	$1.23	3
024	400807995	GROMMET	400807995 GROMMET	$3.51	5
025	N10637302	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10637302 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$0.95 MSRP: ~~7.24~~ (86.9% off)	2
