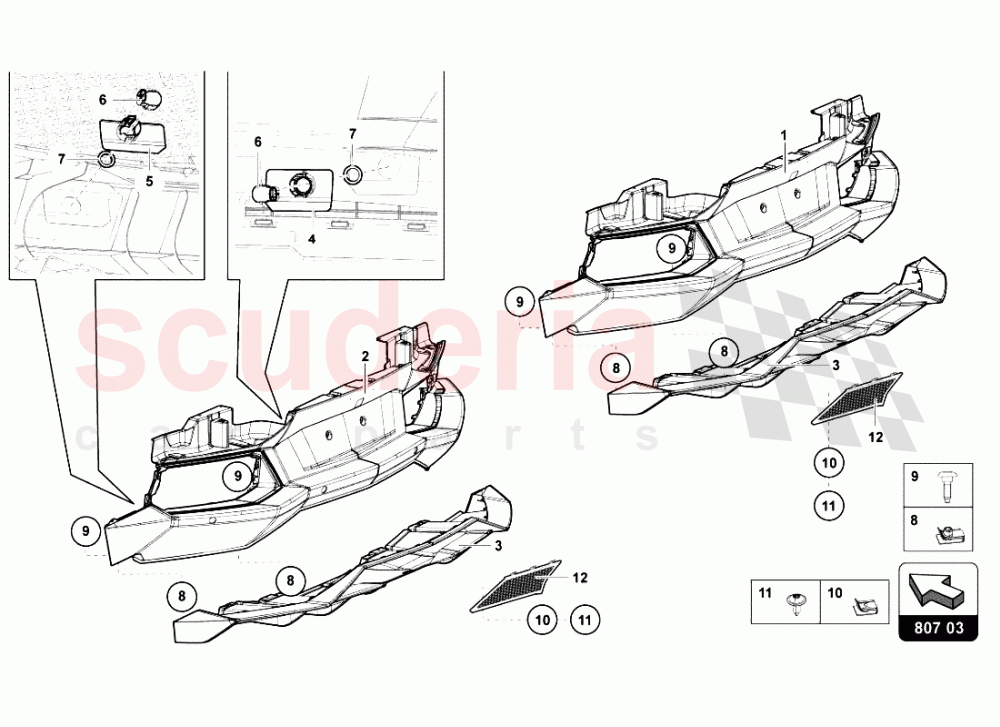

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470807301J	Rear Bumper Assembly (contact Your Area Manager)	470807301J Rear Bumper Assembly (contact Your Area Manager)	$10,309.11	1
002	470807301K	Rear Bumper Assembly (parcking Sensor - Contact Your	470807301K Rear Bumper Assembly (parcking Sensor - Contact Your	$10,913.94	1
003	470807539B	Covering	470807539B Covering	$10,376.33	1
003	470807539C	Covering (external Carbon )	470807539C Covering (external Carbon )	$18,770.12	1
004	470919289A	Lh Bracket Center	470919289A Lh Bracket Center	$175.39	1
004	470919290A	Rh Bracket Center	470919290A Rh Bracket Center	$175.39	1
005	470919329A	Lh Side Bracket	470919329A Lh Side Bracket	$175.39	1
005	470919330A	Rh Side Bracket	470919330A Rh Side Bracket	$175.39	1
006	1S0919275C	SENSOR	1S0919275C SENSOR	$124.06	4
007	1T0919133C	SEAL RING IN STOCK	1T0919133C SEAL RING IN STOCK	$8.75	4
008	N0154487	SPEED NUT IN STOCK	N0154487 SPEED NUT IN STOCK	$0.53	14
009	N90698606	HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	N90698606 HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	$1.07 MSRP: ~~7.35~~ (85.4% off)	14
010	N90170803	SPEED NUT IN STOCK	N90170803 SPEED NUT IN STOCK	$0.95 MSRP: ~~7.34~~ (87.1% off)	6
011	N91136801	HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	N91136801 HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	$0.37	6
012	470807925A	Left Grid	470807925A Left Grid	$442.22	1
012	470807926A	Right Grid	470807926A Right Grid	$442.22	1
