Lamborghini Aventador LP700 Roadster - HARD-TOP

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

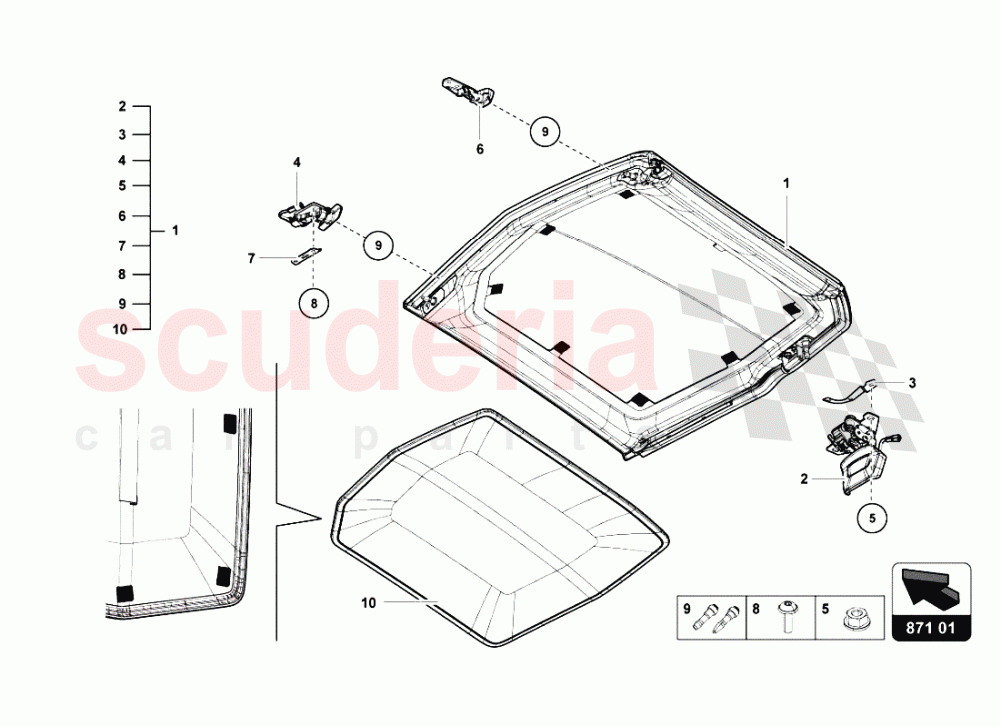

HARD-TOP of Lamborghini Lamborghini Aventador LP700 Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 475817105D
LH Hardtop Matt Black Finish (order With Right) 		- 1 Enquire
001 475817105E
CABRIO ROOF
Matt finish 		- 1 Enquire
001 475817107F
CABRIO ROOF 		- 1 Enquire
001 475817105G
CABRIO ROOF 		- 1 Enquire
001 475817105F
CABRIO ROOF 		- 1 Enquire
001 475817107E
CABRIO ROOF
Matt Finish 		- 1 Enquire
001 475817107D
Rh Hardtop Matt Black Finish (order With Left) 		- 1 Enquire
001 475817105H
Lh Hardtop - Forged Carbon (order With Right) 		- 1 Enquire
001 475817107G
CABRIO ROOF 		- 1 Enquire
001 475817107H
Rh Hardtop - Forged Carbon (order With Left) 		- 1 Enquire
002 475817625D
LOCKING MECHANISM 		- 1 Enquire
002 475817626D
LOCKING MECHANISM 		- 1 Enquire
003 475035433
LENGTH-MEASURING DEVICE 		- 4 Enquire
003 475035434
LENGTH-MEASURING DEVICE 		- 4 Enquire
004 475817719
BRACKET 		- 1 Enquire
004 475817720
BRACKET 		- 1 Enquire
005 N90488005
HEX. NUT WITH WASHER 		- 6 Enquire
006 475817154A
TRANSVERSE ROOF RACK 		- 1 Enquire
006 475817153A
TRANSVERSE ROOF RACK 		- 1 Enquire
007 475817551A
MOUNTING BAR 		- 1 Enquire
008 N10714801
OVAL HEXAGON SOCKET HEAD BOLT 		- 10 Enquire
009 475898587
MOUNTING WITH FIXING PARTS 		- 1 Enquire
010 475868461
ROOF FRAME TRIM 		- 1 Enquire
010 475868462
ROOF FRAME TRIM 		- 1 Enquire
