Windscreen - Headlight Washer System

Lamborghini Aventador LP700 Coupe

Find Your Part

Lamborghini Aventador LP700 Coupe - Windscreen - Headlight Washer System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

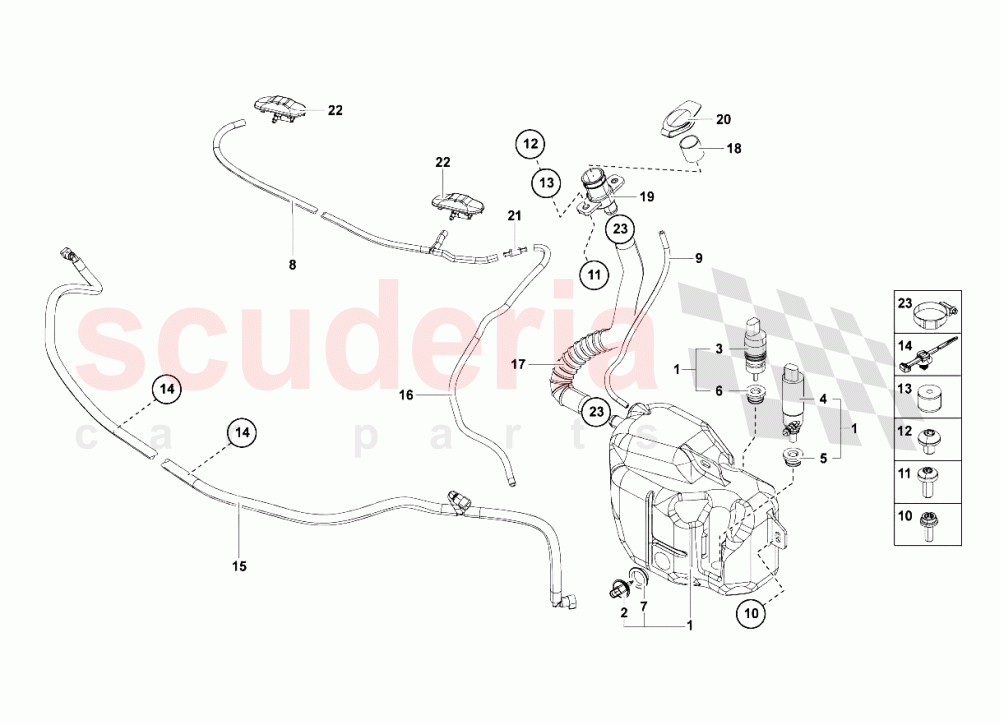

Windscreen - Headlight Washer System of Lamborghini Lamborghini Aventador LP700 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 470955448B
Wash Water Reservoir 		- 1 Enquire
001 471955405C
WIPER ARM 		- 1 Enquire
002 471955406C
RH WIPER ARM 		- 1 Enquire
002 7M0919376
WATER LEVEL SWITCH 		- 1 Enquire
003 1K5955651
WINDSCREEN WASHER SYSTEM PUMP 		- 1 Enquire
004 1J0955681
WINDSCREEN WASHER SYSTEM PUMP 		- 1 Enquire
005 431955465A
SEAL 		- 1 Enquire
006 8A0955465
SEAL RING 		- 1 Enquire
007 7M0919382
SEAL RING 		- 1 Enquire
008 470955972A
Hose Line For Washer Water 		- 1 Enquire
009 470955197
BREATHER LINE 		- 1 Enquire
010 N91026802
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD 		- 2 Enquire
011 N10405604
OVAL HEXAGON SOCKET HEAD BOLT 		- 2 Enquire
012 N10680302
HEXAGON SOCKET FLAT HEAD BOLT 		- 2 Enquire
013 470863309
STOP BUFFER 		- 2 Enquire
014 3D0971838K
CABLE TIES WITH BRACKET 		- 2 Enquire
015 470955970
HOSE LINE FOR WASHER WATER 		- 1 Enquire
017 470955944
PIPE/HOSE LINE 		- 1 Enquire
018 8N0955485
STRAINER 		- 1 Enquire
019 400955459
HOLDER FOR FILLER PIPE 		- 1 Enquire
020 400955277
END CAP 		- 1 Enquire
021 113955975C
VALVE 		- 1 Enquire
022 5M0955985C
Spray Jet Front (Unheated) 		- 2 Enquire
023 400955973
HOSE CLAMP 		- 2 Enquire
