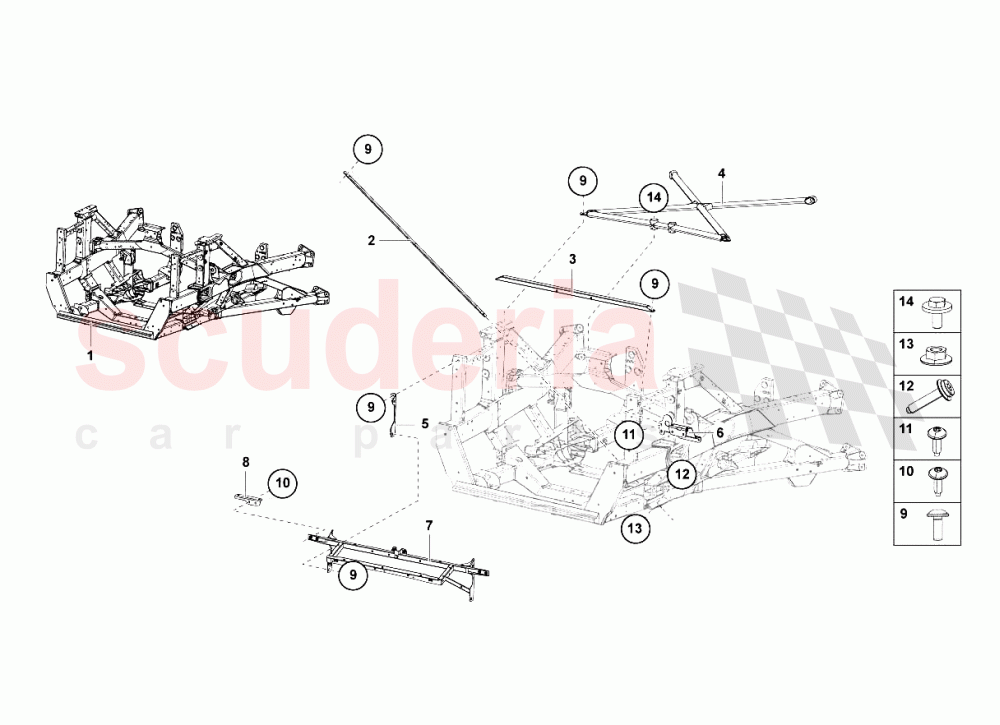

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	470813031B	REAR END ASSEMBLY (CONTACT YOUR AREA MANAGER)	470813031B REAR END ASSEMBLY (CONTACT YOUR AREA MANAGER)	$24,966.32	1
002	470813249B	CROSS MEMBER	470813249B CROSS MEMBER	$346.79	2
003	470814519B	Rear Cross Member	470814519B Rear Cross Member	-	1	Enquire
004	470814587BC	CROSS MEMBER	470814587BC CROSS MEMBER (carbon)	-	1	Enquire
004	470814587B	CROSS MEMBER	470814587B CROSS MEMBER	$3,192.20	1
005	470814658B	ARM	470814658B ARM	$58.46	1
005	470814657B	ARM	470814657B ARM	$58.46	1
006	470814942B	Bracket (rear)	470814942B Bracket (rear)	$111.31	1
007	470813149B	Cross Member	470813149B Cross Member	-	1	Enquire
008	470814185B	Arm (left Rear)	470814185B Arm (left Rear)	$42.61	1
008	470814186B	Arm (right Rear)	470814186B Arm (right Rear)	$42.61	1
009	N91000203	OVAL HEXAGON SOCKET HEAD BOLT	N91000203 OVAL HEXAGON SOCKET HEAD BOLT	$11.56	14
010	N90900401	HEX SOCKET OVAL HEAD COLLARED	N90900401 HEX SOCKET OVAL HEAD COLLARED	$1.25	4
011	N90900401	HEX SOCKET OVAL HEAD COLLARED	N90900401 HEX SOCKET OVAL HEAD COLLARED	$1.25	2
012	WHT001237	HEX SOCKET HEAD COLLARED BOLT	WHT001237 HEX SOCKET HEAD COLLARED BOLT	$1.43 MSRP: ~~7.16~~ (80% off)	2
013	N90798805	HEXAGON COLLAR NUT	N90798805 HEXAGON COLLAR NUT	$2.08 MSRP: ~~7.29~~ (71.5% off)	2
014	N91000203	OVAL HEXAGON SOCKET HEAD BOLT	N91000203 OVAL HEXAGON SOCKET HEAD BOLT	$11.56	2
