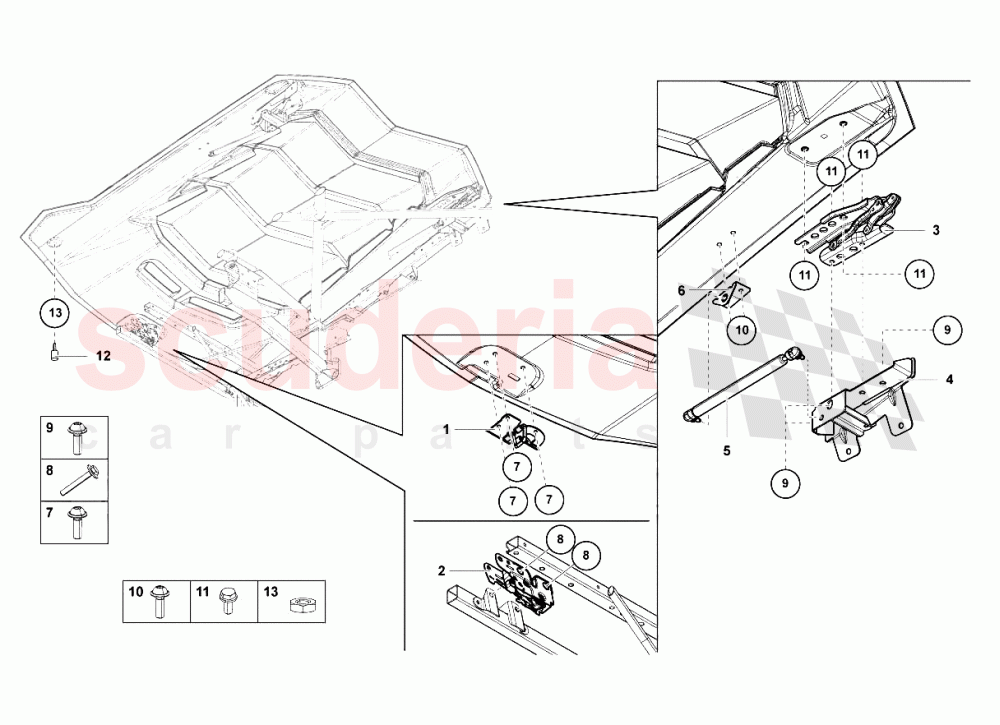

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	400827518B	STRIKER	400827518B STRIKER	$23.19	1
002	1K1823509E	BONNET LOCK-LOWER PART IN STOCK	1K1823509E BONNET LOCK-LOWER PART IN STOCK	$105.53	1
003	470827301	HINGE, LH	470827301 HINGE, LH	-	1	Enquire
003	470827302	Hinge, Rh	470827302 Hinge, Rh	-	1	Enquire
004	470827393B	LH BRACKET	470827393B LH BRACKET	$135.74	1
004	470827394B	RH BRACKET	470827394B RH BRACKET	$184.16	1
005	418827401A	GAS STRUT	418827401A GAS STRUT	$114.97	2
006	470827523	BRACKET FOR TENSION SPRING	470827523 BRACKET FOR TENSION SPRING	$37.80	2
007	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$4.38	3
008	N10553804	HEXAGON HEAD BOLT (COMBI) IN STOCK	N10553804 HEXAGON HEAD BOLT (COMBI) IN STOCK	$1.89 MSRP: ~~7.07~~ (73.3% off)	2
009	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$4.38	6
010	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$4.38	4
011	N10049308	HEXAGON HEAD BOLT (COMBI) IN STOCK	N10049308 HEXAGON HEAD BOLT (COMBI) IN STOCK	$1.74	6
012	400807333	SUPPORT	400807333 SUPPORT	$36.22	2
013	N01111611	HEXAGON NUT	N01111611 HEXAGON NUT	$1.81 MSRP: ~~7.29~~ (75.2% off)	2
