Fender of Lamborghini Lamborghini Aventador LP700 Coupe

View All

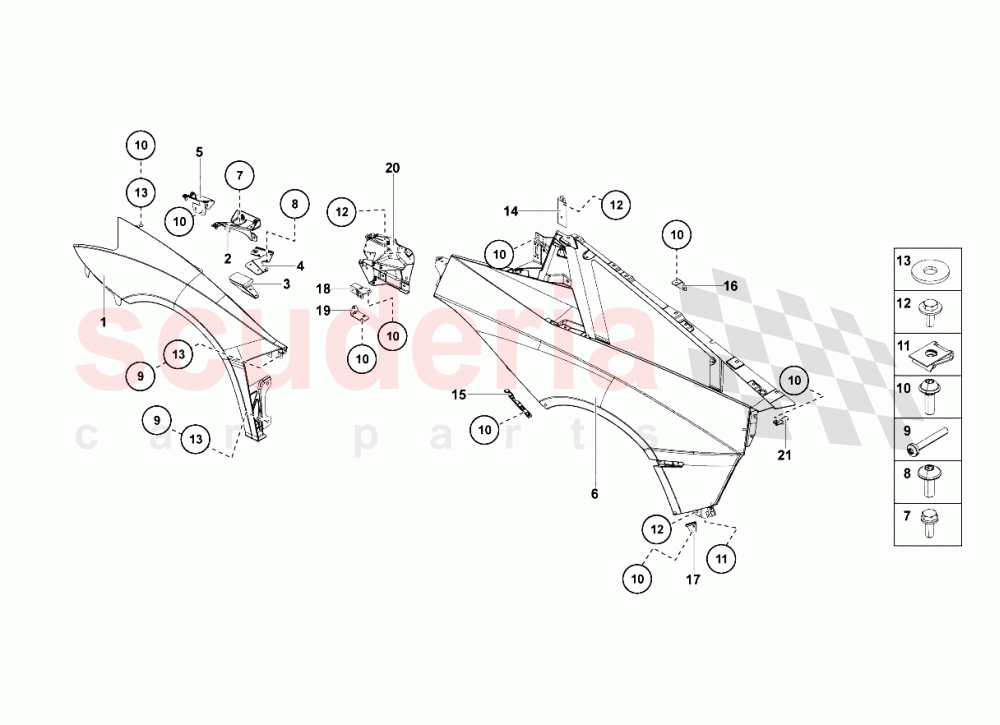

Lamborghini Aventador LP700 Coupe - Fender

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	470821021B	WING	470821021B WING	-	1	Enquire
001	470821022	Right Front Side Fender	470821022 Right Front Side Fender	-	1	Enquire
002	470823664B	BRACKET	470823664B BRACKET	-	1	Enquire
002	470823663A	LEFT SUPPORT	470823663A LEFT SUPPORT	-	1	Enquire
003	470810438A	Rh Bracket	470810438A Rh Bracket	-	1	Enquire
003	470810437A	Lh Bracket	470810437A Lh Bracket	-	1	Enquire
004	470810680	RH BRACKET	470810680 RH BRACKET	-	1	Enquire
004	470810679	Lh Bracket	470810679 Lh Bracket	-	1	Enquire
005	470810863B	CARRIER	470810863B CARRIER	-	1	Enquire
005	470810864B	CARRIER	470810864B CARRIER	-	1	Enquire
006	470854959C	LH Rear Fender	470854959C LH Rear Fender	-	1	Enquire
006	470854960C	RH Rear Fender	470854960C RH Rear Fender	-	1	Enquire
007	N10006706	HEXAGON HEAD BOLT (COMBI)	N10006706 HEXAGON HEAD BOLT (COMBI)	-	8	Enquire
008	N90780903	OVAL HEXAGON SOCKET HEAD BOLT	N90780903 OVAL HEXAGON SOCKET HEAD BOLT	-	10	Enquire
009	N10405702	HEXAGON SOCKET HEAD BOLT	N10405702 HEXAGON SOCKET HEAD BOLT	-	12	Enquire
010	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	22	Enquire
011	N90688703	SPEED NUT	N90688703 SPEED NUT	-	6	Enquire
012	N10009507	HEXAGON HEAD BOLT (COMBI)	N10009507 HEXAGON HEAD BOLT (COMBI)	-	4	Enquire
013	N01166623	WASHER	N01166623 WASHER	-	18	Enquire
014	470853587	Lh Bracket	470853587 Lh Bracket	-	1	Enquire
014	470853588	Rh Bracket	470853588 Rh Bracket	-	1	Enquire
015	470853795	LEFT SUPPORT	470853795 LEFT SUPPORT	-	1	Enquire
015	470853796	RIGHT SUPPORT	470853796 RIGHT SUPPORT	-	1	Enquire
016	470853945	BRACKET	470853945 BRACKET	-	1	Enquire
017	470853231	MUD WING COMPENSATION PLATE	470853231 MUD WING COMPENSATION PLATE	-	1	Enquire
017	470853232	MUD WING COMPENSATION PLATE	470853232 MUD WING COMPENSATION PLATE	-	1	Enquire
018	470857371A	LEFT SUPPORT	470857371A LEFT SUPPORT	-	1	Enquire
018	470857372A	RIGHT SUPPORT	470857372A RIGHT SUPPORT	-	1	Enquire
019	470857156A	Right Support	470857156A Right Support	-	1	Enquire
019	470857155A	Left Support	470857155A Left Support	-	1	Enquire
020	470857290A	MUD WING COMPENSATION PLATE	470857290A MUD WING COMPENSATION PLATE	-	1	Enquire
020	470857289A	MUD WING COMPENSATION PLATE	470857289A MUD WING COMPENSATION PLATE	-	1	Enquire
021	470821141	MUD WING COMPENSATION PLATE	470821141 MUD WING COMPENSATION PLATE	-	1	Enquire
021	470821142	MUD WING COMPENSATION PLATE	470821142 MUD WING COMPENSATION PLATE	-	1	Enquire
