Lamborghini Aventador LP700 Coupe - Doors 1

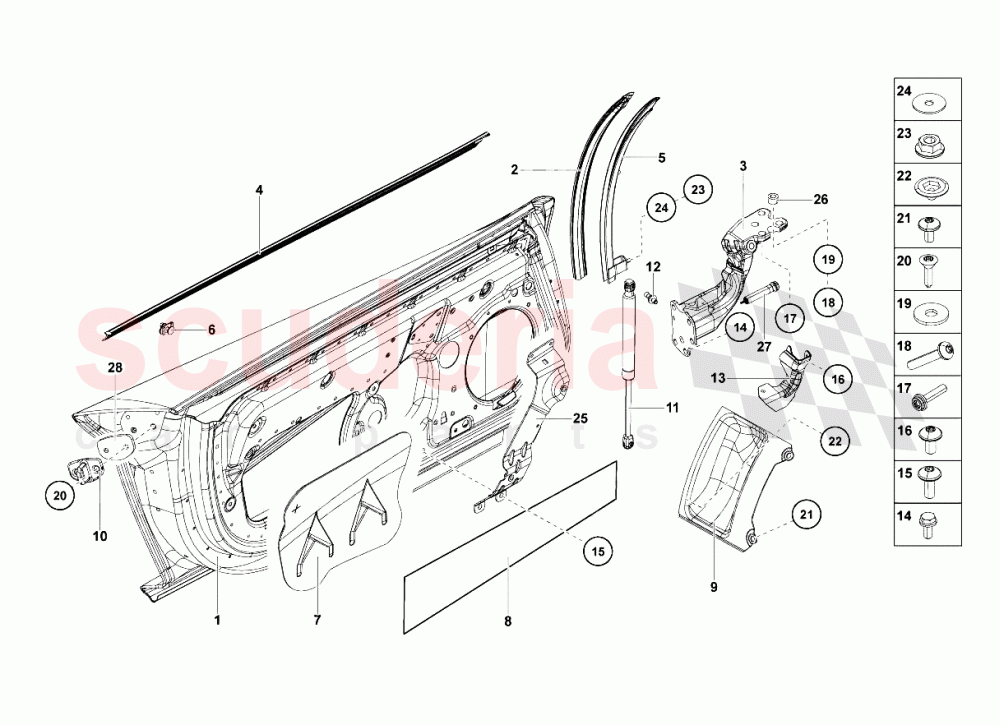

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	470831051D	LH DOOR	470831051D LH DOOR	$9,012.08	1
001	470831052D	RH DOOR	470831052D RH DOOR	$9,012.08	1
002	470837350B	Door Weatherstrip, Outer Rh	470837350B Door Weatherstrip, Outer Rh	$138.47	1
002	470837349D	DOOR SEAL	470837349D DOOR SEAL	$614.25	1
003	470831411C	LH HINGE	470831411C LH HINGE	$1,559.13	1
003	470831412C	RH HINGE	470831412C RH HINGE	$1,686.83	1
004	470837704A	GLASS WEATHERSTRIP, RH	470837704A GLASS WEATHERSTRIP, RH	$116.66	1
004	470837703A	GLASS WEATHERSTRIP, LH	470837703A GLASS WEATHERSTRIP, LH	$116.66	1
005	470837403B	LH GUIDE	470837403B LH GUIDE	$702.95	1
005	470837404B	Rh Guide	470837404B Rh Guide	$702.95	1
006	8L3837199B	CLIP IN STOCK	8L3837199B CLIP IN STOCK	$1.04 MSRP: ~~7.25~~ (85.7% off)	14
007	470837918A	DOOR SEAL	470837918A DOOR SEAL	$46.92	1
007	470837917A	DOOR SEAL	470837917A DOOR SEAL	$79.56	1
008	8J0837805A	SOUND ABSORBER (SELF-ADHESIVE) IN STOCK	8J0837805A SOUND ABSORBER (SELF-ADHESIVE) IN STOCK	$15.41	1
009	470831438B	COVER IN STOCK	470831438B COVER IN STOCK	$121.12	1
009	470831437B	COVER	470831437B COVER	$121.12	1
010	8E0837033	LOCK STRIKER	8E0837033 LOCK STRIKER	$24.20	2

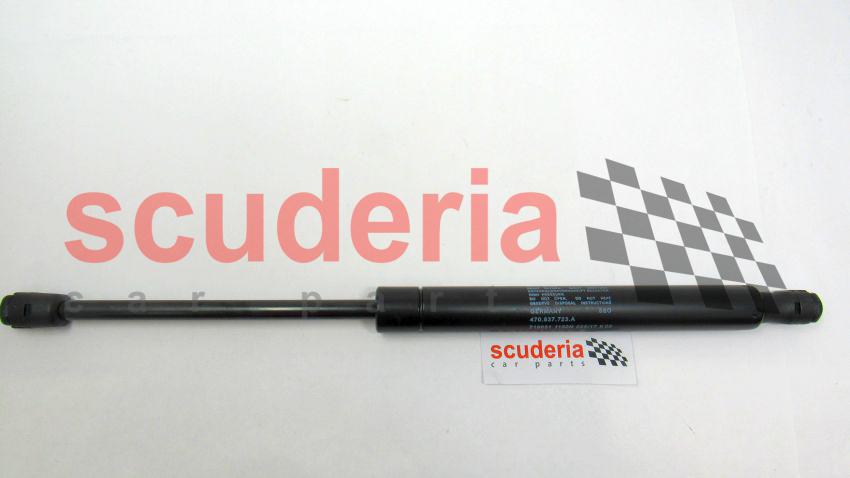

011	470837723A	DOOR GAS STRUT	470837723A DOOR GAS STRUT	$105.67	2
012	470837646A	BALL STUD	470837646A BALL STUD	$10.43	4
013	470831548A	RH COVER	470831548A RH COVER	-	1	Enquire
013	470831547A	Lh Cover	470831547A Lh Cover	-	1	Enquire
014	N10049308	HEXAGON HEAD BOLT (COMBI) IN STOCK	N10049308 HEXAGON HEAD BOLT (COMBI) IN STOCK	$1.74	10
015	N90780903	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90780903 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$0.98	10
016	N10586401	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10586401 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$0.95	8
017	N91174401	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91174401 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$1.47	8
018	N10554005	ROUND HD. SCREW IN STOCK	N10554005 ROUND HD. SCREW IN STOCK	$2.69	4
019	N01152527	WASHER IN STOCK	N01152527 WASHER IN STOCK	$0.40 MSRP: ~~7.33~~ (94.5% off)	4
020	WHT005435	COUNTERSUNK BOLT	WHT005435 COUNTERSUNK BOLT	$4.52	4
021	N91096601	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N91096601 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$0.51 MSRP: ~~7.33~~ (93% off)	4
022	N90745001	HEXAGON COLLAR NUT IN STOCK	N90745001 HEXAGON COLLAR NUT IN STOCK	$0.92 MSRP: ~~7.24~~ (87.3% off)	4
023	N10017307	HEXAGON COLLAR NUT IN STOCK	N10017307 HEXAGON COLLAR NUT IN STOCK	$1.81 MSRP: ~~7.33~~ (75.3% off)	4
024	N91109201	WASHER IN STOCK	N91109201 WASHER IN STOCK	$1.55 MSRP: ~~5.85~~ (73.5% off)	4
025	470831121B	Reinforcement For Door Handle (left)	470831121B Reinforcement For Door Handle (left)	$65.79	1
025	470831122B	Reinforcement For Door Handle (right)	470831122B Reinforcement For Door Handle (right)	$65.79	1
026	470831400A	GROMMET	470831400A GROMMET	$17.74	4
027	4H6831594	Screw	4H6831594 Screw	-	4	Enquire
028	470837779	Intermediate Layer	470837779 Intermediate Layer	$124.33	2
