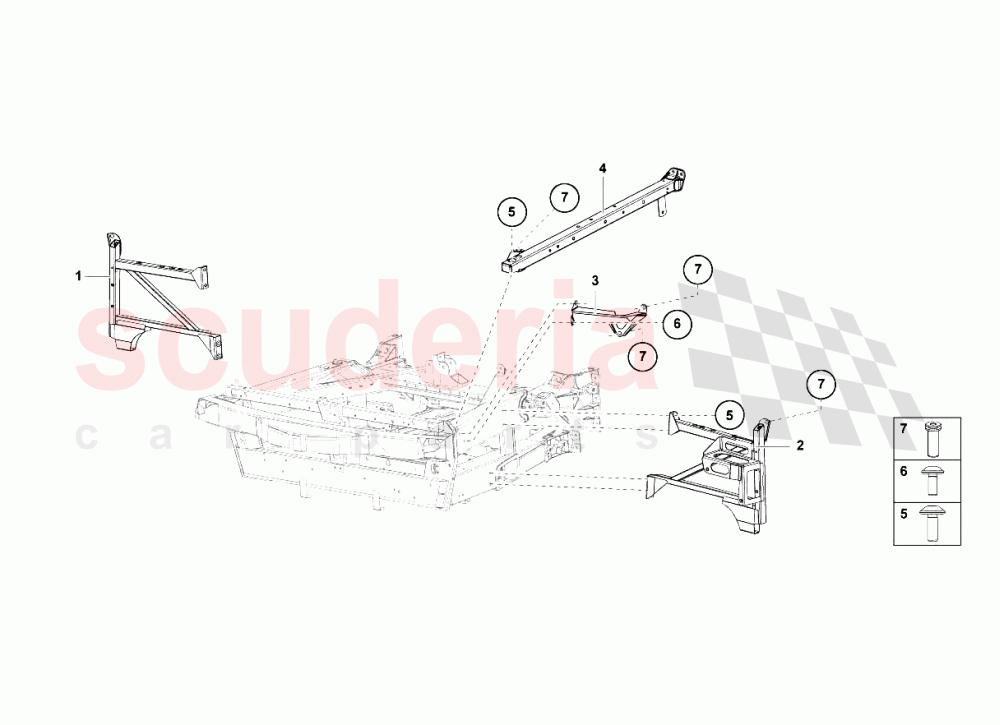

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	470806192D	FRAME PART	470806192D FRAME PART	-	1	Enquire
002	470806191E	FRAME PART	470806191E FRAME PART	-	1	Enquire
003	470806812D	ARM IN STOCK	470806812D ARM IN STOCK	-	1	Enquire
003	470806811B	LH BRACKET (CONTACT YOUR AREA MANAGER)	470806811B LH BRACKET (CONTACT YOUR AREA MANAGER)	-	1	Enquire
004	470805100D	SIDE MEMBER	470805100D SIDE MEMBER	-	1	Enquire
004	470805099D	SIDE MEMBER	470805099D SIDE MEMBER	-	1	Enquire
005	N91000203	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91000203 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	-	10	Enquire
006	N90900401	HEX SOCKET OVAL HEAD COLLARED IN STOCK	N90900401 HEX SOCKET OVAL HEAD COLLARED IN STOCK	-	6	Enquire
007	8H0806221	COMPENSATING PIECE	8H0806221 COMPENSATING PIECE	-	8	Enquire
