Doors 2 of Lamborghini Lamborghini Aventador LP700 Coupe

View All

Lamborghini Aventador LP700 Coupe - Doors 2

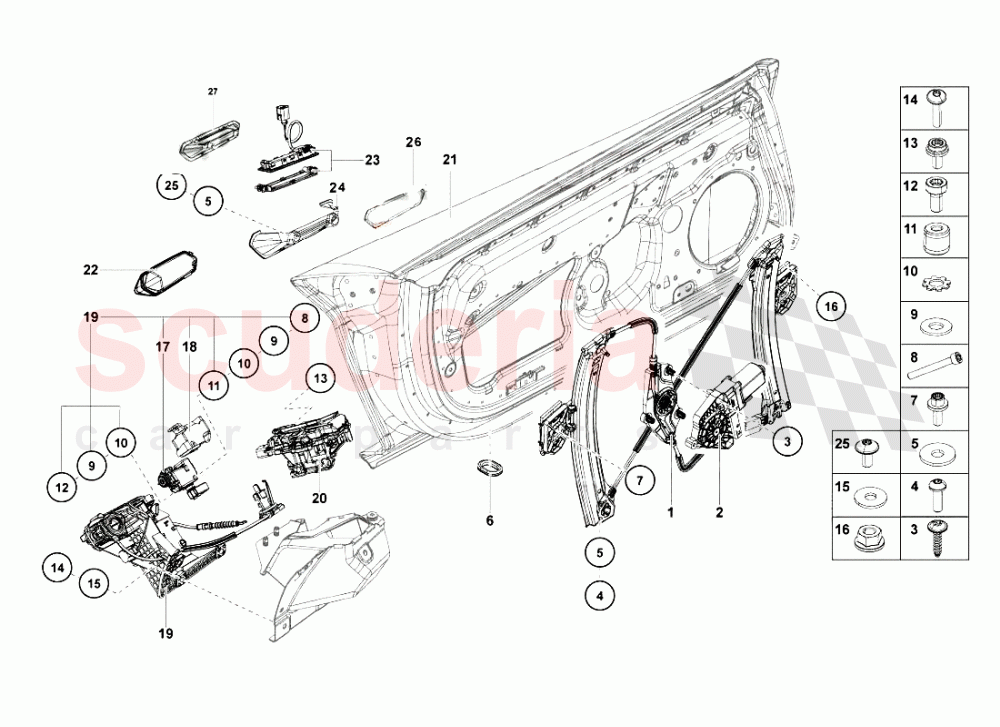

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	470837398G	Window Regulator Without Motor (right)	470837398G Window Regulator Without Motor (right)	-	1	Enquire
001	470837398	Right Door Power Window Assembly	470837398 Right Door Power Window Assembly	-	1	Enquire
001	470837397	Lh Power Window Assembly	470837397 Lh Power Window Assembly	-	1	Enquire
002	8K0959802B	WINDOW REGULATOR MOTOR	8K0959802B WINDOW REGULATOR MOTOR	$247.97	1
002	8K0959801A	Motor	8K0959801A Motor	$80.51	1
003	8Z0837691C	HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	8Z0837691C HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	$1.47 MSRP: ~~7.15~~ (79.4% off)	6
004	N10124308	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10124308 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.96 MSRP: ~~7.26~~ (73% off)	4
005	N01166623	WASHER IN STOCK	N01166623 WASHER IN STOCK	$1.23	8
006	470813591	COVER	470813591 COVER	$12.44	4
007	N91104901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) IN STOCK	N91104901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) IN STOCK	$19.26	4
013	N10664901	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10664901 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$3.05 MSRP: ~~7.27~~ (58% off)	6
014	N10632202	ROUND HD. SCREW IN STOCK	N10632202 ROUND HD. SCREW IN STOCK	$1.81 MSRP: ~~7.13~~ (74.6% off)	6
015	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.42	6
016	WHT000127	HEXAGON NUT	WHT000127 HEXAGON NUT	$17.13	4
019	471837015A	LH LOCK	471837015A LH LOCK	$1,673.40	1
019	471837016A	RH LOCK IN STOCK	471837016A RH LOCK IN STOCK	$1,478.49	1
019	472837011	DOOR LOCK WITH DOOR CONTACT SWITCH	472837011 DOOR LOCK WITH DOOR CONTACT SWITCH RHD	$1,340.06	1
019	472837012	DOOR LOCK WITH DOOR CONTACT SWITCH	472837012 DOOR LOCK WITH DOOR CONTACT SWITCH RHD	$1,888.46	1
020	472837015B	DOOR LOCK WITH DOOR CONTACT SWITCH	472837015B DOOR LOCK WITH DOOR CONTACT SWITCH RHD	$205.66	1
020	472837016B	DOOR LOCK WITH DOOR CONTACT SWITCH	472837016B DOOR LOCK WITH DOOR CONTACT SWITCH RHD	$222.44	1
020	471837015B	DOOR LOCK WITH DOOR CONTACT SWITCH IN STOCK	471837015B DOOR LOCK WITH DOOR CONTACT SWITCH LHD IN STOCK	$602.53	1
020	471837016B	DOOR LOCK WITH DOOR CONTACT SWITCH	471837016B DOOR LOCK WITH DOOR CONTACT SWITCH LHD	$205.66	1
022	472837599G	REMOVABLE LID	472837599G REMOVABLE LID	$50.74	1
022	471837599G	REMOVABLE LID IN STOCK	471837599G REMOVABLE LID IN STOCK	$52.42	1
023	470827566	SWITCH	470827566 SWITCH	$84.42	2
024	470831636	RH INNER HANDLE PLASTIC TRIM	470831636 RH INNER HANDLE PLASTIC TRIM	$17.89	1
024	470831635	Lh Handle	470831635 Lh Handle	$17.89	1
025	N10586401	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10586401 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$0.95	4
027	470837159	LH HANDLE	470837159 LH HANDLE	$44.36	1
027	470837160B	DOOR HANDLE, EXTERIOR	470837160B DOOR HANDLE, EXTERIOR	$79.04	1
