Ferrari GTC4Lusso - TIMING SYSTEM - DRIVE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	316577	VALVE TIMING AND PUMP DRIVE SYSTEM	$2,106.82	To Order

Photo	Part No	Description	Price (each)	Stock
	175286	DRIVE CHAIN	$44.91	To Order

Photo	Part No	Description	Price (each)	Stock
	260614	MOBILE SHOE	$401.13	To Order

Photo	Part No	Description	Price (each)	Stock
	175303	BUSH	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	183929	BUSH	$7.42	To Order

Photo	Part No	Description	Price (each)	Stock
	198034	FIXED SHOE	$68.98	To Order

Photo	Part No	Description	Price (each)	Stock
	86768100	SCREW	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	163759	WASHER	$13.10	To Order

Photo	Part No	Description	Price (each)	Stock
	257626	SHOE	$99.47	To Order

Photo	Part No	Description	Price (each)	Stock
	306094	FIXED SHOE	$68.98	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	254263	CHAIN	$110.47	To Order

Photo	Part No	Description	Price (each)	Stock
	239566	COMPL. UPPER FIXED SHOE	$46.52	To Order

Photo	Part No	Description	Price (each)	Stock
	16043124	SCREW	$0.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	267808	ROLLER BEARING CAGE	$15.25	To Order

Photo	Part No	Description	Price (each)	Stock
	291974	MOUNTING	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	13027024	SCREW M6 X 16MM	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	197880	HYDRAULIC TENSIONER	$144.40	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	252512	BUSH	$93.05	To Order

Photo	Part No	Description	Price (each)	Stock
	317022	GASKET	$3.19	To Order

Photo	Part No	Description	Price (each)	Stock
	264129	DRIVE GEAR	$1,075.06	To Order

Photo	Part No	Description	Price (each)	Stock
	187656	PUMP DRIVE GEAR	$401.13	To Order

Photo	Part No	Description	Price (each)	Stock
	186668	SCREW	$14.28	To Order

Photo	Part No	Description	Price (each)	Stock
	253294	CHAIN	$1,010.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	254327	MOUNTING	$1,761.83	To Order

Photo	Part No	Description	Price (each)	Stock
	260615	FIXED SHOE	$1,556.44	To Order

Photo	Part No	Description	Price (each)	Stock
	175306	SHOULDER	$4.04	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	264130	BUSHING	$107.49	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	$0.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	260228	GEAR WHEEL	$172.45	To Order

Photo	Part No	Description	Price (each)	Stock
	154191	GASKET	$1.35	IN STOCK

View All

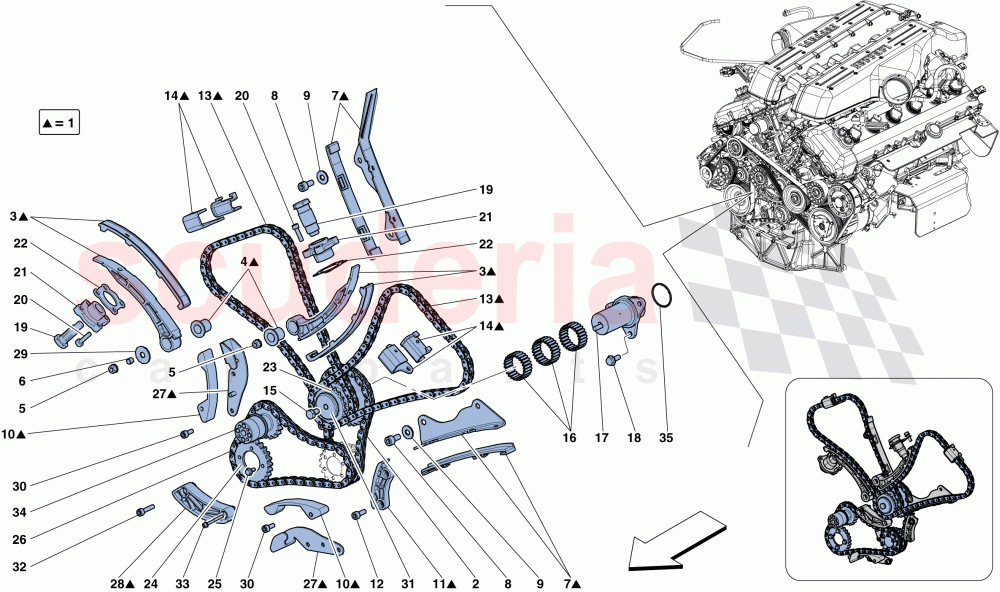

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	316577	VALVE TIMING AND PUMP DRIVE SYSTEM	316577 VALVE TIMING AND PUMP DRIVE SYSTEM	$2,106.82	1
2	175286	DRIVE CHAIN	175286 DRIVE CHAIN	$44.91	1
3	260614	MOBILE SHOE	260614 MOBILE SHOE	$401.13	2
4	175303	BUSH	175303 BUSH	$33.68	2
5	14040711	NUT IN STOCK	14040711 NUT IN STOCK	$0.42	2
6	183929	BUSH	183929 BUSH	$7.42	2
7	198034	FIXED SHOE	198034 FIXED SHOE	$68.98	2
8	86768100	SCREW	86768100 SCREW M8 X 16	$0.47	4
9	163759	WASHER	163759 WASHER	$13.10	4
10	257626	SHOE	257626 SHOE	$99.47	2
11	306094	FIXED SHOE	306094 FIXED SHOE	$68.98	1
12	231619	SCREW IN STOCK	231619 SCREW M6 X 22 IN STOCK	$0.31	2
13	254263	CHAIN	254263 CHAIN	$110.47	2
14	239566	COMPL. UPPER FIXED SHOE	239566 COMPL. UPPER FIXED SHOE	$46.52	2
15	16043124	SCREW IN STOCK	16043124 SCREW M8 X 14 IN STOCK	$0.16	1
16	267808	ROLLER BEARING CAGE	267808 ROLLER BEARING CAGE	$15.25	3
17	291974	MOUNTING	291974 MOUNTING	$208.58	1
18	13027024	SCREW M6 X 16MM IN STOCK	13027024 SCREW M6 X 16MM M6 X 14 IN STOCK	$0.21 MSRP: ~~1.00~~ (79% off)	3
19	197880	HYDRAULIC TENSIONER	197880 HYDRAULIC TENSIONER	$144.40 MSRP: ~~190.38~~ (24.2% off)	2
20	231619	SCREW IN STOCK	231619 SCREW M6 X 18 IN STOCK	$0.31	8
21	252512	BUSH	252512 BUSH	$93.05	2
22	317022	GASKET	317022 GASKET Also comes with engine gasket set	$3.19	2
23	264129	DRIVE GEAR	264129 DRIVE GEAR	$1,075.06	1
24	187656	PUMP DRIVE GEAR	187656 PUMP DRIVE GEAR	$401.13	1
25	186668	SCREW	186668 SCREW M5 X 12	$14.28	4
26	253294	CHAIN IN STOCK	253294 CHAIN IN STOCK	$1,010.88	1
27	254327	MOUNTING	254327 MOUNTING	$1,761.83	2
28	260615	FIXED SHOE	260615 FIXED SHOE	$1,556.44	1
29	175306	SHOULDER	175306 SHOULDER	$4.04	1
30	248334	SCREW	248334 SCREW M6 X 14	$0.68	2
31	264130	BUSHING	264130 BUSHING	$107.49	1
32	231620	SCREW IN STOCK	231620 SCREW M6 X 25 IN STOCK	$0.32 MSRP: ~~0.35~~ (8.6% off)	1
33	231624	SCREW IN STOCK	231624 SCREW M6 X 45 IN STOCK	$0.44	1
34	260228	GEAR WHEEL	260228 GEAR WHEEL	$172.45	1
35	154191	GASKET IN STOCK	154191 GASKET Also comes with engine gasket set IN STOCK	$1.35 MSRP: ~~2.52~~ (46.4% off)	1
