Ferrari GTC4Lusso - CRANKCASE

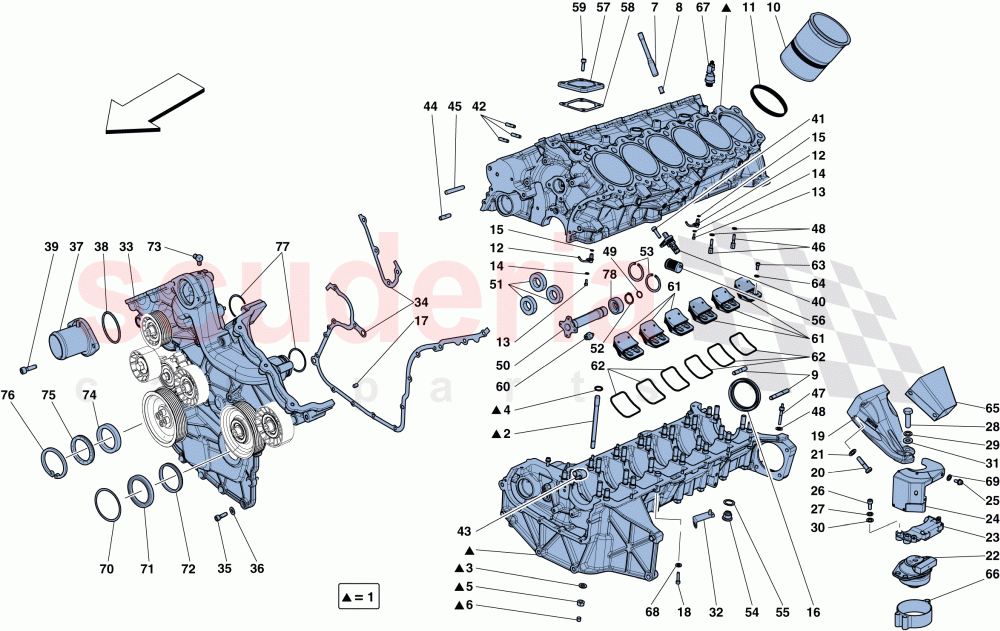

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	313700	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	$11,091.52	To Order

Photo	Part No	Description	Price (each)	Stock
	312153	STUD BOLT	$19.24	To Order
	312412	STUD BOLT	$17.63	To Order

Photo	Part No	Description	Price (each)	Stock
	178348	WASHER D.10.2-20 X 2	$0.76	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	134704	O-RING	$0.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	176421	CENTERING DOWEL	$4.04	To Order

Photo	Part No	Description	Price (each)	Stock
	802590	STUD BOLT CRANKCASE	$13.86	To Order
	802590	STUD BOLT CRANKCASE	$13.86	To Order

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	$2.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13546834	STUD BOLT	$1.57	To Order
	13546934	STUD BOLT	$1.65	IN STOCK
	13547234	STUD BOLT	$14.85	IN STOCK

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	266366	CYLINDER SLEEVE	$292.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	186251	O-RING	$2.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	264087	PISTON COOLING NOZZLE	$28.87	To Order

Photo	Part No	Description	Price (each)	Stock
	14302921	SCREW	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	164877	O-RING	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	200323	REAR MAIN OIL SEALING RING D.80-100X10	$49.73	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	175611	CENTERING DOWEL	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	262743	RH ENGINE STRUT	$641.82	To Order
	262744	LH ENGINE STRUT	$641.82	To Order

Photo	Part No	Description	Price (each)	Stock
	11234734	SCREW	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	11190574	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	259756	COMPL. RH FLEXIBLE ENGINE MOUNTING BUSH	$433.23	ARRIVING SOON
	259757	COMPL. LH FLEXIBLE ENGINE MOUNTING BUSH	$433.23	To Order

Photo	Part No	Description	Price (each)	Stock
	280020	RH BUSH TRAVEL LIMITER BRACKET	$139.58	To Order
	280019	LH BUSH TRAVEL LIMITER BRACKET	$139.58	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	274859	SCREW	$15.85	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14422634	SCREW	$2.46	To Order

Photo	Part No	Description	Price (each)	Stock
	10738021	WASHER	$1.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	$1.93	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127498	WASHER	$0.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	325816	WIRING HARNESS MOUNTING BRACKET	$107.49	To Order

Photo	Part No	Description	Price (each)	Stock
	319865	FRONT CRANKCASE COVER	$1,893.41	To Order

Photo	Part No	Description	Price (each)	Stock
	317647	GASKET BETWEEN CRANKCASE AND FRONT COVER	$49.73	To Order

Photo	Part No	Description	Price (each)	Stock
	14304824	SCREW	$0.28	To Order
	231625	SCREW	$0.66	IN STOCK
	231622	SCREW	$0.36	IN STOCK

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK
	216292	GASKET	$3.84	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	268695	WATER INLET	$85.03	To Order

Photo	Part No	Description	Price (each)	Stock
	134907	GASKET	$1.65	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	857098	ANGULAR SPEED SENSOR	$86.08	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13516824	STUD BOLT	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	234002	CHAIN COOLING NOZZLE	$117.12	To Order

Photo	Part No	Description	Price (each)	Stock
	13543124	STUD BOLT	$6.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13543824	STUD BOLT	$3.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	339948	STUD BOLT	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	219283	STUD BOLT	$15.71	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	186272	O-RING	$0.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	212592	PUMP ARRAY DRIVE SHAFT	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	155996	BEARING	$12.46	To Order

Photo	Part No	Description	Price (each)	Stock
	11067276	SEEGER RING	$0.19	To Order

Photo	Part No	Description	Price (each)	Stock
	11381076	SEEGER RING	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	104280	MAGNETIC THREADED PLUG M22 X 1.5	$6.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10261860	GASKET	$0.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	187162	CENTRAL ENGINE OIL FILTER	$31.90	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	208451	INSPECTION HATCH COVER	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	317312	GASKET	$3.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	257379	STUD BOLT	$10.89	To Order

Photo	Part No	Description	Price (each)	Stock
	255136	COMPL. VALVE HOLDER	$256.72	To Order

Photo	Part No	Description	Price (each)	Stock
	154691	GASKET	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	13026924	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	301195	SHIELD ON ENGINE STRUT	$78.61	To Order

Photo	Part No	Description	Price (each)	Stock
	257168	ENGINE MOUNTING BUSH COLLAR	$41.70	To Order

Photo	Part No	Description	Price (each)	Stock
	304074	OIL PRESSURE SENDER	$254.21	To Order

Photo	Part No	Description	Price (each)	Stock
	11193274	WASHER	$0.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12644424	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	263649	GASKET D.71 44X 3.53	$10.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	274642	SEAL D.49.5 X 65 X 8	$30.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	274641	GASKET CRANKCASE D.49.5 X 62 X 7	$28.87	To Order

Photo	Part No	Description	Price (each)	Stock
	271811	CONNECTOR	$30.47	To Order

Photo	Part No	Description	Price (each)	Stock
	258593	BEARING	$24.65	To Order

Photo	Part No	Description	Price (each)	Stock
	258572	GASKET	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	11061076	SEEGER RING	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	183010	O-RING	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	184384	GASKET	$36.89	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	313700	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	313700 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	$11,091.52	1
2	312153	STUD BOLT	312153 STUD BOLT M12 X 1.75; Inner positioning	$19.24	14
2	312412	STUD BOLT	312412 STUD BOLT M12 X 1.75; Outer positioning	$17.63	14
3	178348	WASHER D.10.2-20 X 2 IN STOCK	178348 WASHER D.10.2-20 X 2 IN STOCK	$0.76	28
4	134704	O-RING IN STOCK	134704 O-RING Also comes with engine gasket set IN STOCK	$0.15 MSRP: ~~1.00~~ (85% off)	28
5	133988	HEX NUT M10 X 1.25 X 8 IN STOCK	133988 HEX NUT M10 X 1.25 X 8 IN STOCK	$0.21 MSRP: ~~0.35~~ (40% off)	28
6	176421	CENTERING DOWEL	176421 CENTERING DOWEL	$4.04	14
7	802590	STUD BOLT CRANKCASE	802590 STUD BOLT CRANKCASE Fastening cylinder heads; Applicable from engine No. 412042	$13.86	28
7	802590	STUD BOLT CRANKCASE	802590 STUD BOLT CRANKCASE Fastening cylinder heads; Applicable up to engine No. 412041	$13.86	28
8	185360	CENTERING DOWEL IN STOCK	185360 CENTERING DOWEL IN STOCK	$2.74	4
9	13546834	STUD BOLT	13546834 STUD BOLT M10 X 1.25 X 20; Shank length 45; Fastening gearbox housing to upper RH zone of crankcase	$1.57	1
9	13546934	STUD BOLT IN STOCK	13546934 STUD BOLT M10 X 1.25 X 20; Shank length 50; Fastening gearbox housing, dowel section IN STOCK	$1.65	1
9	13547234	STUD BOLT IN STOCK	13547234 STUD BOLT M10 X 1.25 X 20; Shank length 65; Fastening gearbox housing IN STOCK	$14.85	1
9	254979	STUD BOLT	254979 STUD BOLT M10 X 1.25 X 20; Shank length 55; Fastening gearbox housing to RH side lower crankcase shell	$2.37	1
9	13546834	STUD BOLT	13546834 STUD BOLT M10 X 1.25 X 20; Shank length 45; Fastening gearbox housing to RH side lower crankcase shell	$1.57	2
10	266366	CYLINDER SLEEVE IN STOCK	266366 CYLINDER SLEEVE D. 94 IN STOCK	$292.59 MSRP: ~~466.10~~ (37.2% off)	12
11	186251	O-RING IN STOCK	186251 O-RING Also comes with engine gasket set IN STOCK	$2.58 MSRP: ~~3.20~~ (19.4% off)	36
12	264087	PISTON COOLING NOZZLE	264087 PISTON COOLING NOZZLE	$28.87	12
13	14302921	SCREW	14302921 SCREW M4 X 10	$0.08	12
14	11181474	WASHER	11181474 WASHER	$0.06	12
15	164877	O-RING	164877 O-RING Also comes with engine gasket set	$0.28	12
16	200323	REAR MAIN OIL SEALING RING D.80-100X10 IN STOCK	200323 REAR MAIN OIL SEALING RING D.80-100X10 Also comes with engine gasket set IN STOCK	$49.73 MSRP: ~~67.13~~ (25.9% off)	1
17	175611	CENTERING DOWEL	175611 CENTERING DOWEL	$1.65	1
18	231620	SCREW IN STOCK	231620 SCREW M6 X 25 IN STOCK	$0.32 MSRP: ~~0.35~~ (8.6% off)	12
19	262743	RH ENGINE STRUT	262743 RH ENGINE STRUT	$641.82	1
19	262744	LH ENGINE STRUT	262744 LH ENGINE STRUT	$641.82	1
20	11234734	SCREW	11234734 SCREW M10 X 1.25 X 45	$0.78	8
21	11190574	WASHER IN STOCK	11190574 WASHER IN STOCK	$0.06	8
22	259756	COMPL. RH FLEXIBLE ENGINE MOUNTING BUSH ARRIVING SOON	259756 COMPL. RH FLEXIBLE ENGINE MOUNTING BUSH ARRIVING SOON	$433.23	1
22	259757	COMPL. LH FLEXIBLE ENGINE MOUNTING BUSH	259757 COMPL. LH FLEXIBLE ENGINE MOUNTING BUSH	$433.23	1
23	280020	RH BUSH TRAVEL LIMITER BRACKET	280020 RH BUSH TRAVEL LIMITER BRACKET	$139.58	1
23	280019	LH BUSH TRAVEL LIMITER BRACKET	280019 LH BUSH TRAVEL LIMITER BRACKET	$139.58	1
24	333758	LH BUSHING HEAT SHIELD	333758 LH BUSHING HEAT SHIELD	$188.53	1
24	336871	RH BUSHING HEAT SHIELD	336871 RH BUSHING HEAT SHIELD	$188.53	1
25	248334	SCREW	248334 SCREW M6 X 14	$0.68	4
26	274859	SCREW	274859 SCREW M10 X 1.25 X 130	$15.85	6
27	127497	WASHER IN STOCK	127497 WASHER IN STOCK	$0.06 MSRP: ~~0.75~~ (92% off)	6
28	14422634	SCREW	14422634 SCREW M12 X 1.75	$2.46	2
29	10738021	WASHER IN STOCK	10738021 WASHER IN STOCK	$1.28	2
30	126648	WASHER D.10.5-21 X 2 IN STOCK	126648 WASHER D.10.5-21 X 2 D. 10.5-21 X 2 IN STOCK	$1.93	6
31	127498	WASHER IN STOCK	127498 WASHER IN STOCK	$0.15 MSRP: ~~0.60~~ (75% off)	2
32	325816	WIRING HARNESS MOUNTING BRACKET	325816 WIRING HARNESS MOUNTING BRACKET	$107.49	1
33	319865	FRONT CRANKCASE COVER	319865 FRONT CRANKCASE COVER	$1,893.41	1
34	317647	GASKET BETWEEN CRANKCASE AND FRONT COVER	317647 GASKET BETWEEN CRANKCASE AND FRONT COVER Also comes with engine gasket set	$49.73	1
35	14304824	SCREW	14304824 SCREW M6 X 55	$0.28	3
35	231625	SCREW IN STOCK	231625 SCREW M6 X 50 IN STOCK	$0.66	8
35	231622	SCREW IN STOCK	231622 SCREW M6 X 35 IN STOCK	$0.36 MSRP: ~~0.50~~ (28% off)	4
35	231619	SCREW IN STOCK	231619 SCREW M6 X 20 IN STOCK	$0.31	10
35	231620	SCREW IN STOCK	231620 SCREW M6 X 30 IN STOCK	$0.32 MSRP: ~~0.35~~ (8.6% off)	1
35	14304824	SCREW	14304824 SCREW M6 X 55	$0.28	1
35	231624	SCREW IN STOCK	231624 SCREW M6 X 45 IN STOCK	$0.44	3
36	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	3
36	216292	GASKET IN STOCK	216292 GASKET Also comes with engine gasket set IN STOCK	$3.84	5
37	268695	WATER INLET	268695 WATER INLET	$85.03	1
38	134907	GASKET IN STOCK	134907 GASKET Also comes with engine gasket set IN STOCK	$1.65 MSRP: ~~4.35~~ (62.1% off)	1
39	231619	SCREW IN STOCK	231619 SCREW M6 X 20 IN STOCK	$0.31	2
40	857098	ANGULAR SPEED SENSOR	857098 ANGULAR SPEED SENSOR	$86.08	1
41	231619	SCREW IN STOCK	231619 SCREW M6 X 20 IN STOCK	$0.31	1
42	13516824	STUD BOLT	13516824 STUD BOLT	$0.47 MSRP: ~~1.25~~ (62.4% off)	3
43	234002	CHAIN COOLING NOZZLE	234002 CHAIN COOLING NOZZLE	$117.12	1
44	13543124	STUD BOLT IN STOCK	13543124 STUD BOLT M8 X 16; Shank length 16 mm IN STOCK	$6.63	1
45	13543824	STUD BOLT IN STOCK	13543824 STUD BOLT M8 X 16; Shank length 40 mm IN STOCK	$3.19	1
46	339948	STUD BOLT	339948 STUD BOLT	$19.24	2
47	219283	STUD BOLT	219283 STUD BOLT	$15.71	1
48	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	3
49	186272	O-RING IN STOCK	186272 O-RING Also comes with engine gasket set IN STOCK	$0.28 MSRP: ~~0.75~~ (62.7% off)	1
50	212592	PUMP ARRAY DRIVE SHAFT	212592 PUMP ARRAY DRIVE SHAFT	$240.67	1
51	155996	BEARING	155996 BEARING	$12.46	3
52	11067276	SEEGER RING	11067276 SEEGER RING	$0.19	1
53	11381076	SEEGER RING	11381076 SEEGER RING	$1.65	2
54	104280	MAGNETIC THREADED PLUG M22 X 1.5 IN STOCK	104280 MAGNETIC THREADED PLUG M22 X 1.5 IN STOCK	$6.03 MSRP: ~~6.90~~ (12.6% off)	1
55	10261860	GASKET IN STOCK	10261860 GASKET Also comes with engine gasket set IN STOCK	$0.45 MSRP: ~~1.00~~ (55% off)	1
56	187162	CENTRAL ENGINE OIL FILTER ARRIVING SOON	187162 CENTRAL ENGINE OIL FILTER ARRIVING SOON	$31.90	3
57	208451	INSPECTION HATCH COVER	208451 INSPECTION HATCH COVER	$33.68	1
58	317312	GASKET IN STOCK	317312 GASKET Also comes with engine gasket set IN STOCK	$3.36	1
59	231619	SCREW IN STOCK	231619 SCREW M6 X 20 IN STOCK	$0.31	4
60	257379	STUD BOLT	257379 STUD BOLT Fastening front cover	$10.89	1
61	255136	COMPL. VALVE HOLDER	255136 COMPL. VALVE HOLDER	$256.72	6
62	154691	GASKET	154691 GASKET Also comes with engine gasket set	$1.65 MSRP: ~~2.40~~ (31.3% off)	6
63	13026924	SCREW	13026924 SCREW M6 X 14	$0.31	12
64	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	12
65	301195	SHIELD ON ENGINE STRUT	301195 SHIELD ON ENGINE STRUT	$78.61	2
66	257168	ENGINE MOUNTING BUSH COLLAR	257168 ENGINE MOUNTING BUSH COLLAR	$41.70	2
67	304074	OIL PRESSURE SENDER	304074 OIL PRESSURE SENDER	$254.21 MSRP: ~~287.64~~ (11.6% off)	1
68	11193274	WASHER IN STOCK	11193274 WASHER IN STOCK	$0.03	1
69	12644424	WASHER IN STOCK	12644424 WASHER IN STOCK	$0.06 MSRP: ~~0.40~~ (85% off)	4
70	263649	GASKET D.71 44X 3.53 IN STOCK	263649 GASKET D.71 44X 3.53 D. 71.44 X 3.53 IN STOCK	$10.96	1
71	274642	SEAL D.49.5 X 65 X 8 IN STOCK	274642 SEAL D.49.5 X 65 X 8 D. 49.5 X 65 X 8 IN STOCK	$30.47 MSRP: ~~42.50~~ (28.3% off)	1
72	274641	GASKET CRANKCASE D.49.5 X 62 X 7	274641 GASKET CRANKCASE D.49.5 X 62 X 7 D. 49.5 X 62 X 7	$28.87 MSRP: ~~39.62~~ (27.1% off)	1
73	271811	CONNECTOR	271811 CONNECTOR	$30.47	1
74	258593	BEARING	258593 BEARING	$24.65	1
75	258572	GASKET	258572 GASKET D. 34.9 X 62 X 7	$24.05 MSRP: ~~32.56~~ (26.1% off)	1
76	11061076	SEEGER RING	11061076 SEEGER RING	$1.65 MSRP: ~~1.75~~ (5.7% off)	1
77	183010	O-RING IN STOCK	183010 O-RING IN STOCK	$1.60 MSRP: ~~2.89~~ (44.6% off)	2
78	184384	GASKET	184384 GASKET	$36.89	1
