Name: CRANKSHAFT - CONNECTING RODS AND PISTONS
Rating: 4.5 (1 reviews)

CRANKSHAFT - CONNECTING RODS AND PISTONS of Ferrari Ferrari GTC4Lusso

View All

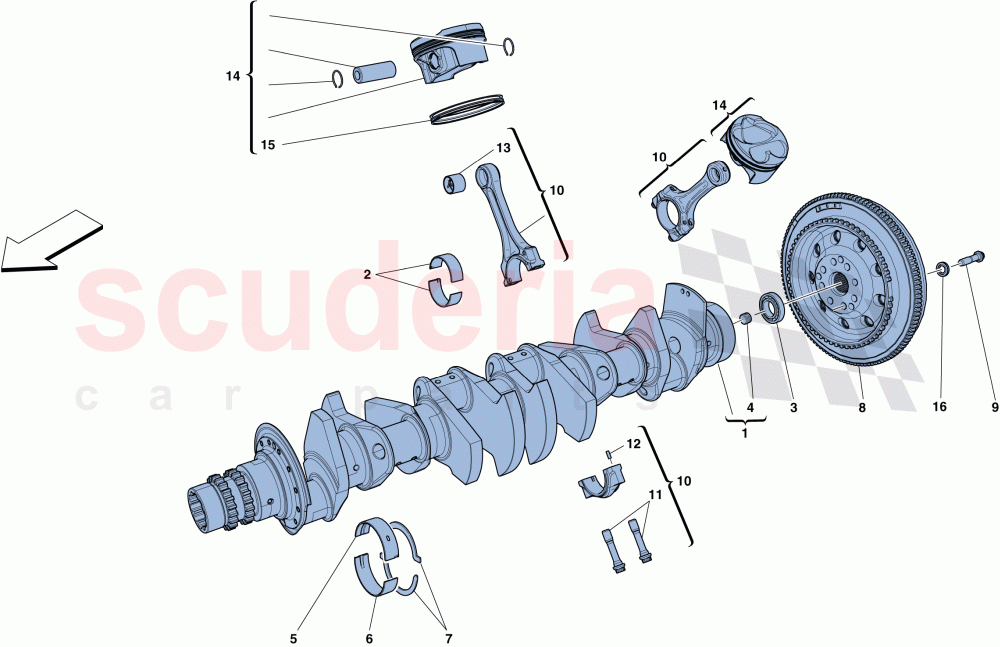

Ferrari GTC4Lusso - CRANKSHAFT - CONNECTING RODS AND PISTONS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	314108	CRANKSHAFT	$3,107.83	To Order

Photo	Part No	Description	Price (each)	Stock
	261720	CONNECTING ROD HALF-BEARING	$18.83	To Order
	261719	CONNECTING ROD HALF-BEARING	$18.83	To Order
	261718	CONNECTING ROD HALF-BEARING	$18.83	To Order

Photo	Part No	Description	Price (each)	Stock
	103877	BEARING	$30.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	176396	THREADED PLUG	$5.35	To Order

Photo	Part No	Description	Price (each)	Stock
	271030	UPPER HALF-BEARING	$35.28	To Order
	271029	UPPER HALF-BEARING	$36.89	To Order
	271028	UPPER HALF-BEARING	$32.08	To Order

Photo	Part No	Description	Price (each)	Stock
	271025	LOWER HALF-BEARING	$35.28	To Order
	271024	LOWER HALF-BEARING	$36.89	To Order
	271023	LOWER HALF-BEARING	$32.08	To Order

Photo	Part No	Description	Price (each)	Stock
	261727	SHIM RING	$10.26	To Order

Photo	Part No	Description	Price (each)	Stock
	281741	ENGINE FLYWHEEL	$2,775.94	To Order

Photo	Part No	Description	Price (each)	Stock
	229907	SCREW	$8.82	To Order

Photo	Part No	Description	Price (each)	Stock
	267273	COMPL. CONNECTING ROD AND CAP	$662.21	To Order

Photo	Part No	Description	Price (each)	Stock
	254806	CONNECTING ROD FASTENER SCREW	$31.70	To Order

Photo	Part No	Description	Price (each)	Stock
	224608	ALIGNMENT PIN	$3.52	To Order

Photo	Part No	Description	Price (each)	Stock
	234871	BUSHING	$17.63	To Order

Photo	Part No	Description	Price (each)	Stock
	341502	LH CYLINDER BANK PISTON COMPLETE WITH RINGS	$545.55	To Order
	341501	RH CYLINDER BANK PISTON COMPLETE WITH RINGS	$545.55	To Order

Photo	Part No	Description	Price (each)	Stock
	282966	GASKET	$4.34	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	314108	CRANKSHAFT	314108 CRANKSHAFT	$3,107.83	1
2	261720	CONNECTING ROD HALF-BEARING	261720 CONNECTING ROD HALF-BEARING Black; Lead free	$18.83	24
2	261719	CONNECTING ROD HALF-BEARING	261719 CONNECTING ROD HALF-BEARING Blue; Lead free	$18.83	24
2	261718	CONNECTING ROD HALF-BEARING	261718 CONNECTING ROD HALF-BEARING Red; Lead free	$18.83	24
3	103877	BEARING IN STOCK	103877 BEARING IN STOCK	$30.39	1
4	176396	THREADED PLUG	176396 THREADED PLUG	$5.35	1
5	271030	UPPER HALF-BEARING	271030 UPPER HALF-BEARING Green; Lead free	$35.28	7
5	271029	UPPER HALF-BEARING	271029 UPPER HALF-BEARING Yellow; Lead free	$36.89	7
5	271028	UPPER HALF-BEARING	271028 UPPER HALF-BEARING Blue; Lead free	$32.08	7
6	271025	LOWER HALF-BEARING	271025 LOWER HALF-BEARING Green; Lead free	$35.28	7
6	271024	LOWER HALF-BEARING	271024 LOWER HALF-BEARING Yellow; Lead free	$36.89	7
6	271023	LOWER HALF-BEARING	271023 LOWER HALF-BEARING Blue; Lead free	$32.08	7
7	261727	SHIM RING	261727 SHIM RING Lead free	$10.26	4
8	281741	ENGINE FLYWHEEL	281741 ENGINE FLYWHEEL	$2,775.94	1
9	229907	SCREW	229907 SCREW M10 X 1.25 X 41.5	$8.82	8
10	267273	COMPL. CONNECTING ROD AND CAP	267273 COMPL. CONNECTING ROD AND CAP	$662.21	12
11	254806	CONNECTING ROD FASTENER SCREW	254806 CONNECTING ROD FASTENER SCREW	$31.70	24
12	224608	ALIGNMENT PIN	224608 ALIGNMENT PIN	$3.52	24
13	234871	BUSHING	234871 BUSHING	$17.63	12
14	341502	LH CYLINDER BANK PISTON COMPLETE WITH RINGS	341502 LH CYLINDER BANK PISTON COMPLETE WITH RINGS	$545.55	6
14	341501	RH CYLINDER BANK PISTON COMPLETE WITH RINGS	341501 RH CYLINDER BANK PISTON COMPLETE WITH RINGS	$545.55	6
16	282966	GASKET IN STOCK	282966 GASKET IN STOCK	$4.34	2

Crankshaft - Connecting Rods And Pistons

Ferrari GTC4Lusso

Ferrari GTC4Lusso - CRANKSHAFT - CONNECTING RODS AND PISTONS
