COOLING - WATER / OIL PUMP of Ferrari Ferrari GTC4Lusso

View All

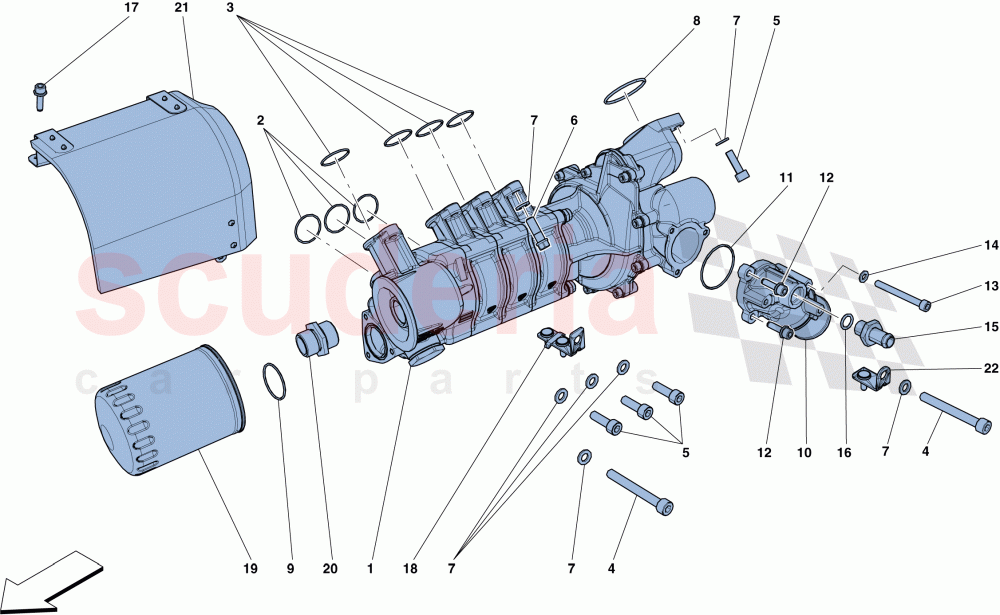

Ferrari GTC4Lusso - COOLING - WATER / OIL PUMP

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

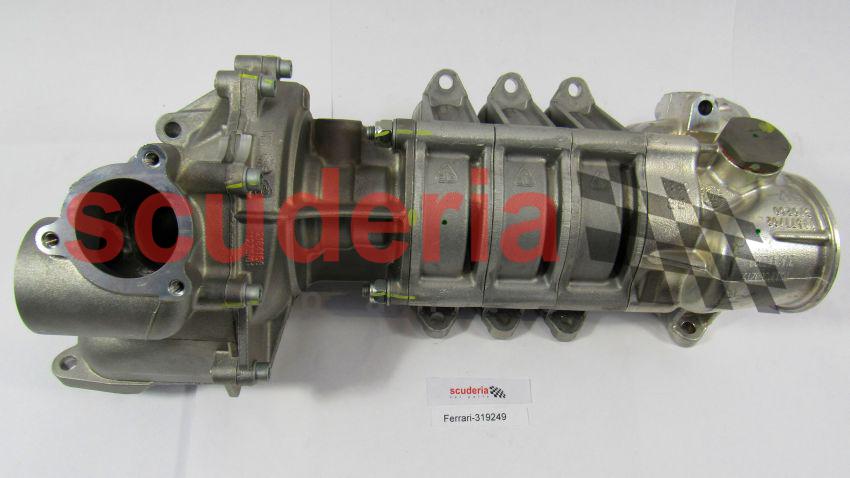

	319249	OIL / WATER PUMPS	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	140071	O-Ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	133938	O-RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14359324	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	185345	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132829	O-RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	862084	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	267393	PUMP WATER INLET COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154191	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14304824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11194374	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	331418	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14457081	O-RING D.2.62	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	333737	WIRING HARNESS MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	915754	OIL FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177604	THREADED CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295119	PROTECTIVE SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	325818	WIRING HARNESS MOUNTING BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	319249	OIL / WATER PUMPS IN STOCK	319249 OIL / WATER PUMPS IN STOCK	-	1	Enquire
2	140071	O-Ring IN STOCK	140071 O-Ring Also comes with engine gasket set IN STOCK	-	3	Enquire
3	133938	O-RING IN STOCK	133938 O-RING Also comes with engine gasket set IN STOCK	-	4	Enquire
4	14359324	SCREW IN STOCK	14359324 SCREW M8 X 65 IN STOCK	-	2	Enquire
5	14306424	SCREW IN STOCK	14306424 SCREW IN STOCK	-	4	Enquire
6	185345	SCREW IN STOCK	185345 SCREW M8 X 1.25 X 25 IN STOCK	-	4	Enquire
7	986899	WASHER	986899 WASHER	-	10	Enquire
8	132829	O-RING IN STOCK	132829 O-RING Also comes with engine gasket set IN STOCK	-	1	Enquire
9	862084	GASKET	862084 GASKET Also comes with engine gasket set	-	1	Enquire
10	267393	PUMP WATER INLET COVER	267393 PUMP WATER INLET COVER	-	1	Enquire
11	154191	GASKET IN STOCK	154191 GASKET Also comes with engine gasket set IN STOCK	-	1	Enquire
12	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20 IN STOCK	-	2	Enquire
13	14304824	SCREW	14304824 SCREW M6 X 55	-	1	Enquire
14	11194374	WASHER IN STOCK	11194374 WASHER IN STOCK	-	1	Enquire
15	331418	CONNECTOR	331418 CONNECTOR	-	1	Enquire
16	14457081	O-RING D.2.62 IN STOCK	14457081 O-RING D.2.62 Also comes with engine gasket set IN STOCK	-	1	Enquire
17	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	3	Enquire
18	333737	WIRING HARNESS MOUNTING BRACKET	333737 WIRING HARNESS MOUNTING BRACKET	-	1	Enquire
19	915754	OIL FILTER	915754 OIL FILTER	-	1	Enquire
20	177604	THREADED CONNECTOR	177604 THREADED CONNECTOR	-	1	Enquire
21	295119	PROTECTIVE SHIELD	295119 PROTECTIVE SHIELD	-	1	Enquire
22	325818	WIRING HARNESS MOUNTING BRACKET	325818 WIRING HARNESS MOUNTING BRACKET	-	1	Enquire
