LEFT HAND CYLINDER HEAD

Find Your Part

Ferrari GTC4Lusso - LEFT HAND CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
300332 LH HEAD $3,669.64 To Order
Photo Part No Description Price (each) Stock
321187 NUT Enquire To Order
Photo Part No Description Price (each) Stock
151117 WASHER $1.20 To Order
Photo Part No Description Price (each) Stock
199760 THREADED PLUG $0.31 To Order
127635 THREADED PLUG $3.32 To Order
282400 THREADED PLUG $3.91 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
243721 SCREW WITH WASHER $0.50 To Order
243720 SCREW $0.60 To Order
Photo Part No Description Price (each) Stock
243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 $0.58 To Order
Photo Part No Description Price (each) Stock
239614 GASKET $6.73 To Order
Photo Part No Description Price (each) Stock
239502 SCREW $0.63 To Order
243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 $0.58 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
13541424 STUD BOLT $0.44 To Order
13541324 STUD BOLT $1.85 To Order
211641 STUD BOLT $1.04 To Order
Photo Part No Description Price (each) Stock
801187 OIL PRESSURE REGULATOR VALVE $240.67 To Order
Photo Part No Description Price (each) Stock
14304124 SCREW $0.16 To Order
Photo Part No Description Price (each) Stock
11181574 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
816000 LH CYLINDER HEAD COVER $1,187.39 To Order
Photo Part No Description Price (each) Stock
229353 SOLENOID VALVE GASKET $19.24 To Order
Photo Part No Description Price (each) Stock
317962 THREADED CONNECTOR $30.47 To Order
Photo Part No Description Price (each) Stock
243802 LH HEAD COVER GASKET $85.03 To Order
Photo Part No Description Price (each) Stock
223982 SPARK PLUG TUBE SEAL $2.54 To Order
Photo Part No Description Price (each) Stock
336695 COMPL. LH HEAD HEAT SHIELD $444.36 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
224573 TIMING SENSOR $39.30 ARRIVING SOON
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
293278 SCREW $14.68 To Order
214412 STUD BOLT $13.14 To Order
Photo Part No Description Price (each) Stock
986899 WASHER $6.26 To Order
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
219946 BRACKET $4.47 To Order
Photo Part No Description Price (each) Stock
328523 DAMPER PLATE FOR TIMING SENSOR $8.49 To Order
Photo Part No Description Price (each) Stock
849672 TIMING SENSOR SEAL $4.91 To Order
View All

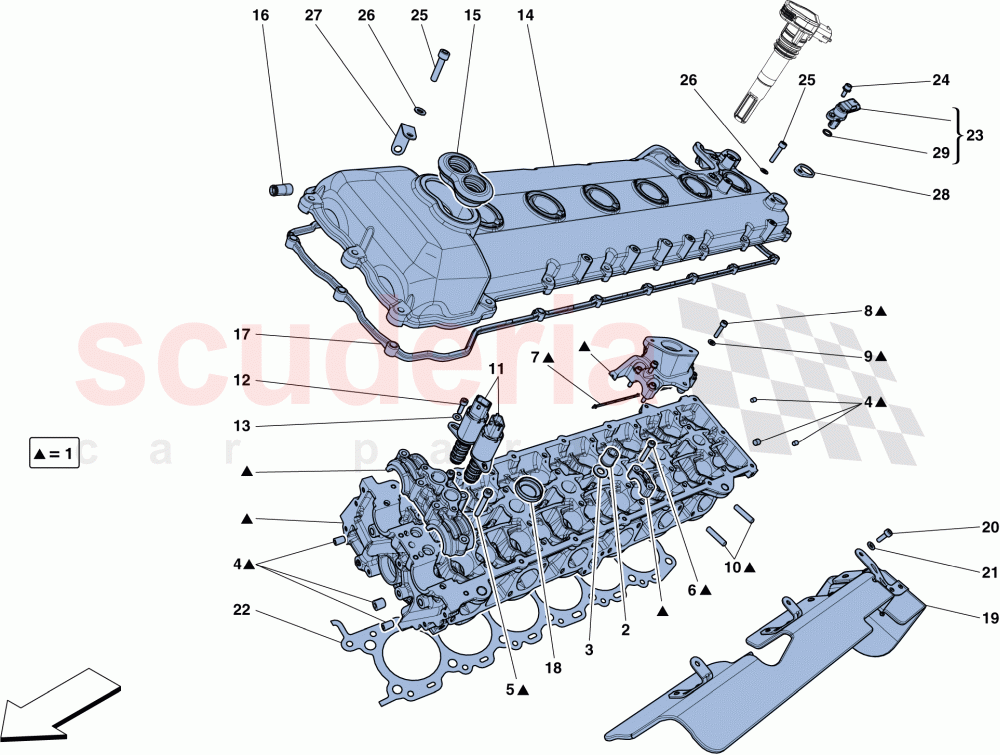

LEFT HAND CYLINDER HEAD of Ferrari Ferrari GTC4Lusso Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 300332
LH HEAD 		$3,669.64 1
2 321187
NUT 		- 28 Enquire
3 151117
WASHER 		$1.20 28
4 199760
THREADED PLUG
D. 6 X 1 		$0.31 6
4 127635
THREADED PLUG
M18 X 11 X 1.5; For rear water orifice cover 		$3.32 (20.4% off) 1
4 282400
THREADED PLUG
M12 X 11 		$3.91 2
4 282755
THREADED PLUG
D. 10 X 1.25 		$2.14 5
4 127635
THREADED PLUG
M18 X 11 X 1.5; Inspection hole cover 		$3.32 (20.4% off) 12
5 243721
SCREW WITH WASHER
M6 X 45 		$0.50 4
5 243720
SCREW
M6 X 40 		$0.60 2
6 243719
ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35
M6 X 35 		$0.58 12
7 239614
GASKET
Also comes with engine gasket set 		$6.73 1
8 239502
SCREW
M6 X 25 		$0.63 1
8 243719
ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35
M6 X 35 		$0.58 1
9 11197774
WASHER 		$0.06 (80% off) 1
10 13541424
STUD BOLT
M6 X 12; Shank length 28 mm 		$0.44 (37.1% off) 2
10 13541324
STUD BOLT
M6 X 12; Shank length 25 mm 		$1.85 10
10 211641
STUD BOLT
M8 X 16; Shank length 24 mm 		$1.04 12
11 801187
OIL PRESSURE REGULATOR VALVE 		$240.67 2
12 14304124
SCREW
M5 X 16 		$0.16 (78.7% off) 2
13 11181574
WASHER 		$0.02 2
14 816000
LH CYLINDER HEAD COVER 		$1,187.39 1
15 229353
SOLENOID VALVE GASKET
Also comes with engine gasket set 		$19.24 (34.3% off) 1
16 317962
THREADED CONNECTOR 		$30.47 1
17 243802
LH HEAD COVER GASKET
Also comes with engine gasket set 		$85.03 (23.8% off) 1
18 223982
SPARK PLUG TUBE SEAL
Also comes with engine gasket set 		$2.54 (36% off) 6
19 336695
COMPL. LH HEAD HEAT SHIELD 		$444.36 1
20 248334
SCREW
M6 X 14 		$0.68 3
21 11197774
WASHER 		$0.06 (80% off) 3
23 224573
TIMING SENSOR
ARRIVING SOON 		$39.30 (29.1% off) 2
24 248334
SCREW
M6 X 14 		$0.68 2
25 293278
SCREW 		$14.68 2
25 214412
STUD BOLT
M6 X 25 		$13.14 23
26 986899
WASHER 		$6.26 2
26 11197774
WASHER 		$0.06 (80% off) 19
27 219946
BRACKET 		$4.47 (31.2% off) 1
28 328523
DAMPER PLATE FOR TIMING SENSOR 		$8.49 2
29 849672
TIMING SENSOR SEAL 		$4.91 2
