INJECTION - IGNITION SYSTEM of Ferrari Ferrari GTC4Lusso

View All

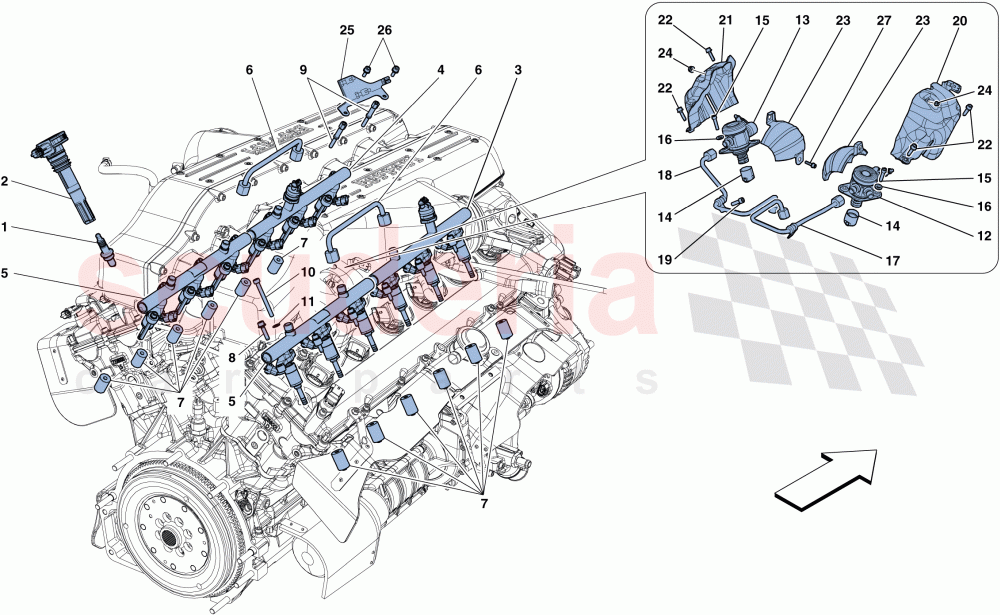

Ferrari GTC4Lusso - INJECTION - IGNITION SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	297423	SPARK PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317312	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311300	COMPL. FRONT RH FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311301	COMPL. FRONT LH FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311302	COMPL. REAR FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247918	FUEL PIPE CONNECTING FRONT AND REAR RAILS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255724	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260965	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14303834	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259334	RH FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259335	LH FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270601	HIG PRESSURE PUMP BUCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305428	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	327854	RH FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254516	LH FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284458	RH SOUNDPROOFING COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284459	LH SOUNDPROOFING COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284460	PUMP COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284961	MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	297423	SPARK PLUG	297423 SPARK PLUG NGK	-	12	Enquire
2	317312	GASKET	317312 GASKET	-	12	Enquire
3	311300	COMPL. FRONT RH FUEL PIPE	311300 COMPL. FRONT RH FUEL PIPE Also order pipe ref. 6	-	1	Enquire
4	311301	COMPL. FRONT LH FUEL PIPE	311301 COMPL. FRONT LH FUEL PIPE Also order pipe ref. 6	-	1	Enquire
5	311302	COMPL. REAR FUEL PIPE	311302 COMPL. REAR FUEL PIPE Also order pipe ref. 6 and pipe ref. 17 for RH cylinder bank or ref. 18 for LH cylinder bank	-	2	Enquire
6	247918	FUEL PIPE CONNECTING FRONT AND REAR RAILS	247918 FUEL PIPE CONNECTING FRONT AND REAR RAILS	-	2	Enquire
7	255724	SHIM	255724 SHIM	-	12	Enquire
8	231620	SCREW	231620 SCREW M6 X 25	-	10	Enquire
9	260965	STUD BOLT	260965 STUD BOLT M6 X 23	-	2	Enquire
10	14303834	SCREW	14303834 SCREW M6 X 60	-	12	Enquire
11	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	12	Enquire
12	259334	RH FUEL PUMP	259334 RH FUEL PUMP	-	1	Enquire
13	259335	LH FUEL PUMP	259335 LH FUEL PUMP	-	1	Enquire
14	270601	HIG PRESSURE PUMP BUCKET	270601 HIG PRESSURE PUMP BUCKET	-	2	Enquire
15	14305428	SCREW	14305428 SCREW	-	4	Enquire
16	12639724	WASHER	12639724 WASHER	-	4	Enquire
17	327854	RH FUEL PIPE	327854 RH FUEL PIPE	-	1	Enquire
18	254516	LH FUEL PIPE	254516 LH FUEL PIPE	-	1	Enquire
19	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	2	Enquire
20	284458	RH SOUNDPROOFING COVER	284458 RH SOUNDPROOFING COVER	-	1	Enquire
21	284459	LH SOUNDPROOFING COVER	284459 LH SOUNDPROOFING COVER	-	1	Enquire
22	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	4	Enquire
23	284460	PUMP COVER	284460 PUMP COVER	-	2	Enquire
24	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
25	284961	MOUNTING BRACKET	284961 MOUNTING BRACKET	-	1	Enquire
26	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20	-	2	Enquire
27	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16	-	2	Enquire
