Power Steering Pump And Reservoir

Ferrari GTC4Lusso

Find Your Part

Ferrari GTC4Lusso - POWER STEERING PUMP AND RESERVOIR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
292342 COMPL. POWER STEERING FLUID RESERVOIR $83.42 To Order
Photo Part No Description Price (each) Stock
267954 BRACKET $57.75 To Order
Photo Part No Description Price (each) Stock
13046224 NUT $0.37 IN STOCK
Photo Part No Description Price (each) Stock
276797 PIPE FROM RESERVOIR TO POWER STEERING PUMP $73.80 To Order
Photo Part No Description Price (each) Stock
13126370 COLLAR $1.33 IN STOCK
Photo Part No Description Price (each) Stock
10902424 SCREW $0.15 IN STOCK
Photo Part No Description Price (each) Stock
296419 PIPE FROM COIL TO POWER STEERING FLUID RESERVOIR $62.56 To Order
Photo Part No Description Price (each) Stock
13127070 COLLAR $2.14 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
178772 SPACER STUD $10.10 To Order
Photo Part No Description Price (each) Stock
277567 POWER STEERING PUMP $2,461.42 To Order
Photo Part No Description Price (each) Stock
250874 PULLEY ON POWER STEERING PUMP $117.12 To Order
Photo Part No Description Price (each) Stock
13028324 SCREW $4.34 To Order
Photo Part No Description Price (each) Stock
11193874 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
275397 BRACKET $36.89 To Order
Photo Part No Description Price (each) Stock
172995 BRACKET WITH SHEATH $3.19 IN STOCK
Photo Part No Description Price (each) Stock
324751 BELT GUARD $80.21 To Order
Photo Part No Description Price (each) Stock
231627 SCREW $0.65 IN STOCK
Photo Part No Description Price (each) Stock
125826 RUBBER PIPE $11.38 To Order
Photo Part No Description Price (each) Stock
222606 BREATHER PIPE UNION $18.83 To Order
Photo Part No Description Price (each) Stock
277606 OIL BREATHER PIPE $12.03 To Order
Photo Part No Description Price (each) Stock
13126170 CLAMP $1.38 IN STOCK
View All

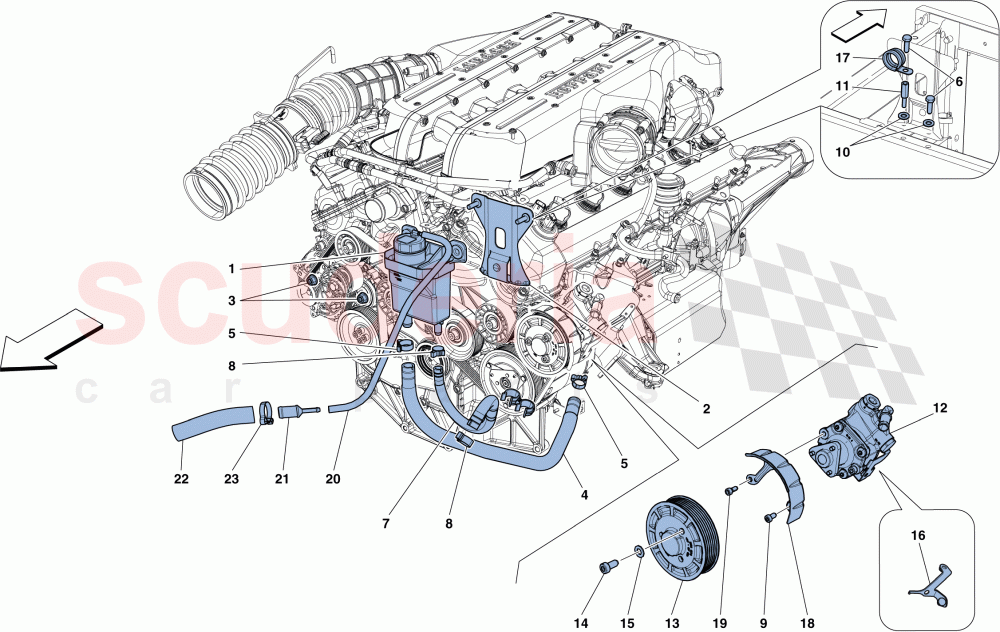

POWER STEERING PUMP AND RESERVOIR of Ferrari Ferrari GTC4Lusso Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 292342
COMPL. POWER STEERING FLUID RESERVOIR 		$83.42 (27.6% off) 1
2 267954
BRACKET 		$57.75 1
3 13046224
NUT
IN STOCK 		$0.37 2
4 276797
PIPE FROM RESERVOIR TO POWER STEERING PUMP 		$73.80 1
5 13126370
COLLAR
IN STOCK 		$1.33 2
6 10902424
SCREW
M6 X 20; Fastening bracket to chassis
IN STOCK 		$0.15 (78.6% off) 2
7 296419
PIPE FROM COIL TO POWER STEERING FLUID RESERVOIR 		$62.56 1
8 13127070
COLLAR
IN STOCK 		$2.14 2
9 248334
SCREW
M6 X 14 		$0.68 1
10 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
11 178772
SPACER STUD
Not for GD 		$10.10 1
12 277567
POWER STEERING PUMP 		$2,461.42 1
13 250874
PULLEY ON POWER STEERING PUMP 		$117.12 1
14 13028324
SCREW
M8 X 16 		$4.34 3
15 11193874
WASHER
IN STOCK 		$0.06 3
16 275397
BRACKET
On rear power steering pump body 		$36.89 1
17 172995
BRACKET WITH SHEATH
IN STOCK 		$3.19 1
18 324751
BELT GUARD 		$80.21 1
19 231627
SCREW
M8 X 16
IN STOCK 		$0.65 (7.1% off) 1
20 125826
RUBBER PIPE
D. 3.5-8 X 320 		$11.38 1
21 222606
BREATHER PIPE UNION 		$18.83 1
22 277606
OIL BREATHER PIPE
L= 1685 		$12.03 1
23 13126170
CLAMP
IN STOCK 		$1.38 1
