FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari F12 TDF

View All

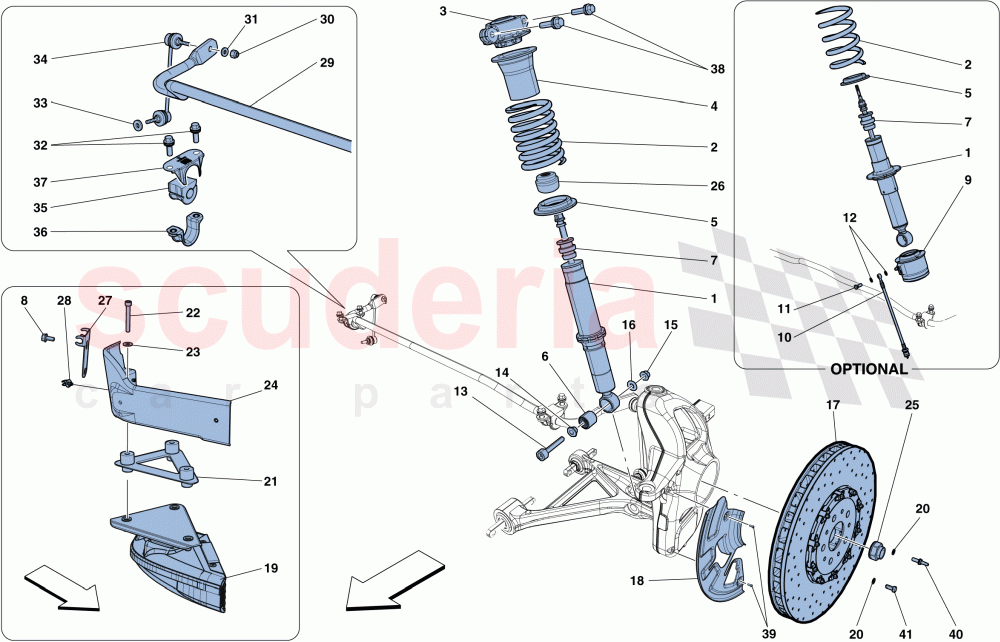

Ferrari F12 TDF - FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	319798	FRONT SHOCK ABSORBER	Enquire	To Order
	319797	FRONT SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320645	FRONT SUSPENSION SPRING	Enquire	To Order
	313931	FRONT SUSPENSION SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250394	STOP CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212517	UPPER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188996	LOWER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157630	BALL JOINT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	288828	ENDSTOP BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300214	ACTUATOR	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	277168	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	261587	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259638	GASKET 8.7 - 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237297	SCREW M12 X 1.25 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237821	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255271	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646921	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321910	FRONT BRAKE DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297323	FRONT RH DISC SHIELD	Enquire	To Order
	297322	FRONT LH DISC SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303202	RH FRONT BRAKE AIR DUCT	Enquire	To Order
	303201	LH FRONT BRAKE AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228132	SPRING WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320715	BRACKET FASTENING DUCT TO RH LOWER ARM	Enquire	To Order
	320714	BRACKET FASTENING DUCT TO LH LOWER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320723	COMPL. RH AIR DEFLECTOR	Enquire	To Order
	320722	COMPL. LH AIR DEFLECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203780	Hub Nut Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288829	STOP CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291864	ABS CABLE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	261214	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277262	STABILISER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10791014	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264117	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247952	RH SPHERICAL TIE-ROD	Enquire	To Order
	247950	LH SPHERICAL TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	236241	BUSH FOR BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245822	BUSHING RETAINER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286144	BUSHING MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248790	SCREW M12 X 1.25 X 50	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104370	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228131	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	319798	FRONT SHOCK ABSORBER	319798 FRONT SHOCK ABSORBER Version with lifter	-	2	Enquire
1	319797	FRONT SHOCK ABSORBER	319797 FRONT SHOCK ABSORBER	-	2	Enquire
2	320645	FRONT SUSPENSION SPRING	320645 FRONT SUSPENSION SPRING Version with lifter	-	2	Enquire
2	313931	FRONT SUSPENSION SPRING	313931 FRONT SUSPENSION SPRING	-	2	Enquire
3	250394	STOP CAP	250394 STOP CAP	-	2	Enquire
4	212517	UPPER SPACER	212517 UPPER SPACER	-	2	Enquire
5	188996	LOWER SPACER	188996 LOWER SPACER	-	2	Enquire
6	157630	BALL JOINT ARRIVING SOON	157630 BALL JOINT ARRIVING SOON	-	2	Enquire
7	288828	ENDSTOP BUSH	288828 ENDSTOP BUSH	-	2	Enquire
8	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM M6 X 14	-	2	Enquire
9	300214	ACTUATOR ARRIVING SOON	300214 ACTUATOR Version with lifter ARRIVING SOON	-	1	Enquire
10	277168	HOSE	277168 HOSE Version with lifter	-	2	Enquire
11	261587	HOSE	261587 HOSE Version with lifter	-	2	Enquire
12	259638	GASKET 8.7 - 14	259638 GASKET 8.7 - 14 Version with lifter	-	4	Enquire
13	237297	SCREW M12 X 1.25 X 8	237297 SCREW M12 X 1.25 X 8 M12 X 1.25 X 80	-	2	Enquire
14	237821	BUSH	237821 BUSH	-	2	Enquire
15	255271	NUT	255271 NUT	-	2	Enquire
16	12646921	WASHER	12646921 WASHER	-	2	Enquire
17	321910	FRONT BRAKE DISC	321910 FRONT BRAKE DISC	-	2	Enquire
18	297323	FRONT RH DISC SHIELD	297323 FRONT RH DISC SHIELD	-	1	Enquire
18	297322	FRONT LH DISC SHIELD	297322 FRONT LH DISC SHIELD	-	1	Enquire
19	303202	RH FRONT BRAKE AIR DUCT	303202 RH FRONT BRAKE AIR DUCT	-	1	Enquire
19	303201	LH FRONT BRAKE AIR DUCT	303201 LH FRONT BRAKE AIR DUCT	-	1	Enquire
20	228132	SPRING WASHER	228132 SPRING WASHER	-	4	Enquire
21	320715	BRACKET FASTENING DUCT TO RH LOWER ARM	320715 BRACKET FASTENING DUCT TO RH LOWER ARM	-	1	Enquire
21	320714	BRACKET FASTENING DUCT TO LH LOWER ARM	320714 BRACKET FASTENING DUCT TO LH LOWER ARM	-	1	Enquire
22	231624	SCREW	231624 SCREW M6 X 45	-	6	Enquire
23	11193274	WASHER	11193274 WASHER	-	6	Enquire
24	320723	COMPL. RH AIR DEFLECTOR	320723 COMPL. RH AIR DEFLECTOR	-	1	Enquire
24	320722	COMPL. LH AIR DEFLECTOR	320722 COMPL. LH AIR DEFLECTOR	-	1	Enquire
25	203780	Hub Nut Hex	203780 Hub Nut Hex	-	2	Enquire
26	288829	STOP CAP	288829 STOP CAP	-	1	Enquire
27	291864	ABS CABLE MOUNTING BRACKET	291864 ABS CABLE MOUNTING BRACKET	-	1	Enquire
28	261214	CLIP	261214 CLIP	-	2	Enquire
29	277262	STABILISER BAR	277262 STABILISER BAR	-	1	Enquire
30	10791014	NUT	10791014 NUT	-	2	Enquire
31	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	2	Enquire
32	264117	SCREW	264117 SCREW M10 X 1.25 X 30	-	4	Enquire
33	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	2	Enquire
34	247952	RH SPHERICAL TIE-ROD	247952 RH SPHERICAL TIE-ROD	-	1	Enquire
34	247950	LH SPHERICAL TIE-ROD	247950 LH SPHERICAL TIE-ROD	-	1	Enquire
35	236241	BUSH FOR BAR	236241 BUSH FOR BAR	-	2	Enquire
36	245822	BUSHING RETAINER PLATE	245822 BUSHING RETAINER PLATE	-	2	Enquire
37	286144	BUSHING MOUNT	286144 BUSHING MOUNT	-	2	Enquire
38	248790	SCREW M12 X 1.25 X 50	248790 SCREW M12 X 1.25 X 50	-	4	Enquire
39	250657	SCREW M6 X 14	250657 SCREW M6 X 14 M6 X 14	-	4	Enquire
40	104370	SCREW	104370 SCREW	-	2	Enquire
41	228131	SCREW	228131 SCREW M8 X 20	-	2	Enquire
