FRONT SUSPENSION - ARMS of Ferrari Ferrari F12 TDF

View All

Ferrari F12 TDF - FRONT SUSPENSION - ARMS

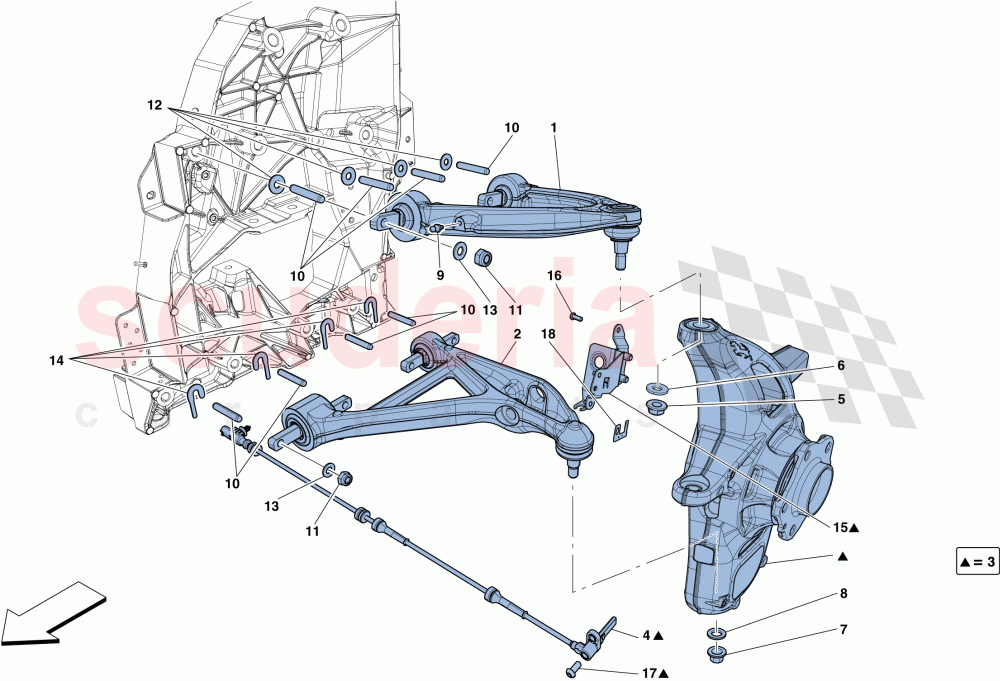

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	248760	RH Front Upper Arm	Enquire	To Order
	248758	LH Front Upper Arm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264524	Lower RH Front Arm	Enquire	IN STOCK
	264523	Lower LH Front Arm	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	314464	COMPL. RH FRONT HUB CARRIER	Enquire	To Order
	314463	COMPL. LH FRONT HUB CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259615	ABS SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149807	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12646921	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	203795	NUT M14 x 1.5	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	241689	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	343376	BALL JOINT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	264528	THREADED ROD 10 X 1.25	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	12574521	Nyloc Nut	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12646821	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	238692	ADJUSTMENT SHIM	Enquire	IN STOCK
	238884	ADJUSTMENT SHIM	Enquire	IN STOCK
	238883	ADJUSTMENT SHIM	Enquire	IN STOCK

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	314494	COMPL. FRONT RH JOINT BRACKET	Enquire	To Order
	314493	COMPL. FRONT LH JOINT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	229324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162606	CLIP	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	248760	RH Front Upper Arm	248760 RH Front Upper Arm	-	1	Enquire
1	248758	LH Front Upper Arm	248758 LH Front Upper Arm	-	1	Enquire
2	264524	Lower RH Front Arm IN STOCK	264524 Lower RH Front Arm IN STOCK	-	1	Enquire
2	264523	Lower LH Front Arm IN STOCK	264523 Lower LH Front Arm IN STOCK	-	1	Enquire
3	314464	COMPL. RH FRONT HUB CARRIER	314464 COMPL. RH FRONT HUB CARRIER	-	1	Enquire
3	314463	COMPL. LH FRONT HUB CARRIER	314463 COMPL. LH FRONT HUB CARRIER	-	1	Enquire
4	259615	ABS SENSOR	259615 ABS SENSOR	-	2	Enquire
5	149807	NUT IN STOCK	149807 NUT IN STOCK	-	2	Enquire
6	12646921	WASHER IN STOCK	12646921 WASHER IN STOCK	-	2	Enquire
7	203795	NUT M14 x 1.5 IN STOCK	203795 NUT M14 x 1.5 IN STOCK	-	2	Enquire
8	241689	WASHER IN STOCK	241689 WASHER IN STOCK	-	2	Enquire
9	343376	BALL JOINT IN STOCK	343376 BALL JOINT IN STOCK	-	2	Enquire
10	264528	THREADED ROD 10 X 1.25 ARRIVING SOON	264528 THREADED ROD 10 X 1.25 ARRIVING SOON	-	16	Enquire
11	12574521	Nyloc Nut IN STOCK	12574521 Nyloc Nut IN STOCK	-	16	Enquire
12	12646821	WASHER IN STOCK	12646821 WASHER IN STOCK	-	4	Enquire
13	126648	WASHER D.10.5-21 X 2 IN STOCK	126648 WASHER D.10.5-21 X 2 IN STOCK	-	16	Enquire
14	238692	ADJUSTMENT SHIM IN STOCK	238692 ADJUSTMENT SHIM Th. 0.5 mm IN STOCK	-	8	Enquire
14	238884	ADJUSTMENT SHIM IN STOCK	238884 ADJUSTMENT SHIM Th. 3.5 mm IN STOCK	-	8	Enquire
14	238883	ADJUSTMENT SHIM IN STOCK	238883 ADJUSTMENT SHIM Th. 3 mm IN STOCK	-	8	Enquire
14	238882	ADJUSTMENT SHIM IN STOCK	238882 ADJUSTMENT SHIM Th. 2.5 mm IN STOCK	-	8	Enquire
14	238694	ADJUSTMENT SHIM IN STOCK	238694 ADJUSTMENT SHIM Th. 2 mm IN STOCK	-	8	Enquire
14	238881	CAMBER SPACER 1.5MM IN STOCK	238881 CAMBER SPACER 1.5MM Th. 1.5 mm IN STOCK	-	8	Enquire
14	238693	ADJUSTMENT SHIM IN STOCK	238693 ADJUSTMENT SHIM Th. 1 mm IN STOCK	-	8	Enquire
14	238885	CAMBER SPACER 4MM IN STOCK	238885 CAMBER SPACER 4MM Th. 4 mm IN STOCK	-	8	Enquire
15	314494	COMPL. FRONT RH JOINT BRACKET	314494 COMPL. FRONT RH JOINT BRACKET	-	1	Enquire
15	314493	COMPL. FRONT LH JOINT BRACKET	314493 COMPL. FRONT LH JOINT BRACKET	-	1	Enquire
16	250657	SCREW M6 X 14 IN STOCK	250657 SCREW M6 X 14 M6 X 14 IN STOCK	-	4	Enquire
17	229324	SCREW	229324 SCREW	-	2	Enquire
18	162606	CLIP IN STOCK	162606 CLIP IN STOCK	-	2	Enquire
