Ferrari F12 TDF - BRAKE SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
315049 HYDRAULIC UNIT $4,430.28 To Order
Photo Part No Description Price (each) Stock
324542 ECU MOUNTING BRACKET $100.33 To Order
314732 ECU MOUNTING BRACKET $81.69 To Order
Photo Part No Description Price (each) Stock
13604015 SPACER $0.83 To Order
Photo Part No Description Price (each) Stock
14054511 NUT $1.30 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
12647724 WASHER $0.15 To Order
Photo Part No Description Price (each) Stock
324553 PIPE FROM ECU TO LH FRONT WHEEL $99.47 To Order
314452 PIPE FROM UNIT TO LH FRONT WHEEL $52.94 To Order
Photo Part No Description Price (each) Stock
324551 PIPE FROM MASTER CYLINDER TO UNIT PRIMARY INLET $59.35 To Order
314450 PIPE FROM MASTER CYLINDER TO UNIT PRIMARY INLET $62.56 To Order
Photo Part No Description Price (each) Stock
324552 PIPE FROM MASTER CYLINDER TO UNIT SECONDARY INLET $56.14 To Order
314451 PIPE FROM MASTER CYLINDER TO UNIT SECONDARY INLET $60.96 To Order
Photo Part No Description Price (each) Stock
324556 PIPE FROM ECU TO RH FRONT WHEEL SECTION $57.75 To Order
314453 PIPE FROM UNIT TO RH FRONT WHEEL DISCONNECTER $104.28 To Order
Photo Part No Description Price (each) Stock
324554 PIPE FROM ECU TO RH REAR WHEEL SECTION $59.35 To Order
314455 PIPE FROM UNIT TO LH REAR WHEEL DISCONNECTER $111.79 To Order
Photo Part No Description Price (each) Stock
287846 PIPE FROM DISCONNECTOR TO RH FRONT WHEEL $57.33 To Order
275449 PIPE FROM DISCONNECTOR TO RH FRONT WHEEL $44.91 To Order
Photo Part No Description Price (each) Stock
324555 PIPE FROM ECU TO LH REAR WHEEL SECTION $123.54 To Order
314454 PIPE FROM ECU TO LH REAR WHEEL SECTION $55.89 To Order
Photo Part No Description Price (each) Stock
284624 PIPE FROM SECTION TO LH REAR WHEEL $75.95 To Order
Photo Part No Description Price (each) Stock
284627 PIPE FROM SECTION TO LH REAR WHEEL $74.52 To Order
Photo Part No Description Price (each) Stock
249782 CLIP $1.15 To Order
241118 CLIP $1.46 To Order
234286 CLIP $1.56 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
116374 CLIP $2.51 To Order
Photo Part No Description Price (each) Stock
262737 RUBBER RETAINER $6.56 To Order
Photo Part No Description Price (each) Stock
317783 YAW SENSOR $559.21 To Order
Photo Part No Description Price (each) Stock
16286124 SCREW $0.37 To Order
Photo Part No Description Price (each) Stock
296332 BRAKE PIPE MOUNTING BRACKET $54.54 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
291251 CLIP $0.78 To Order
Photo Part No Description Price (each) Stock
291250 CLIP $0.78 To Order
View All

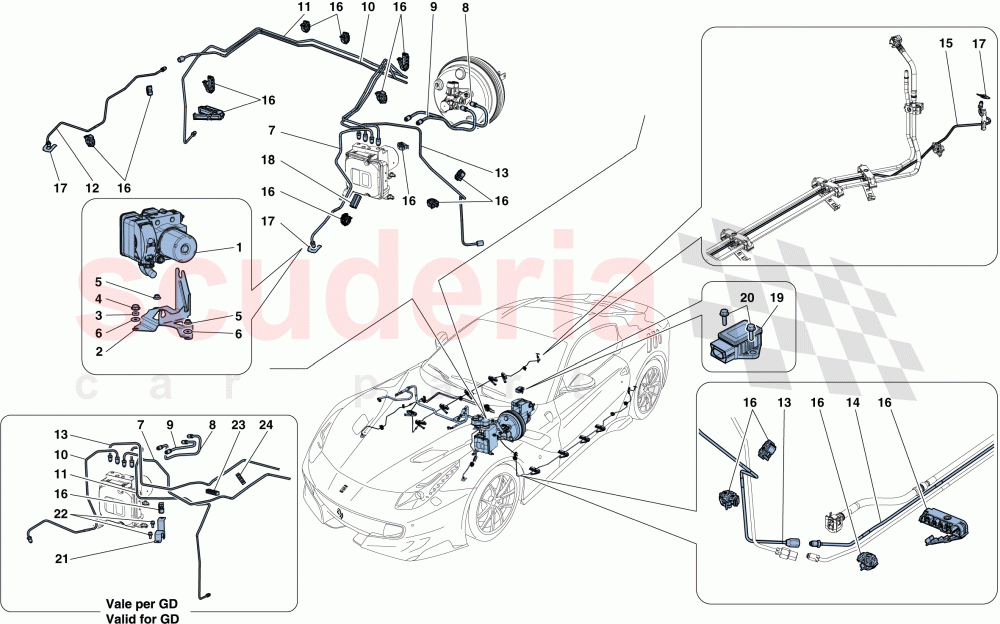

BRAKE SYSTEM of Ferrari Ferrari F12 TDF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 315049
HYDRAULIC UNIT 		$4,430.28 1
2 324542
ECU MOUNTING BRACKET
Applicable for GD 		$100.33 1
2 314732
ECU MOUNTING BRACKET
Not for GD 		$81.69 1
3 13604015
SPACER 		$0.83 1
4 14054511
NUT 		$1.30 1
5 14059290
FLANGED NUT M6 		$1.51 2
6 12647724
WASHER 		$0.15 2
7 324553
PIPE FROM ECU TO LH FRONT WHEEL
Applicable for GD 		$99.47 1
7 314452
PIPE FROM UNIT TO LH FRONT WHEEL
Not for GD 		$52.94 1
8 324551
PIPE FROM MASTER CYLINDER TO UNIT PRIMARY INLET
Applicable for GD 		$59.35 1
8 314450
PIPE FROM MASTER CYLINDER TO UNIT PRIMARY INLET
Not for GD 		$62.56 1
9 324552
PIPE FROM MASTER CYLINDER TO UNIT SECONDARY INLET
Applicable for GD 		$56.14 1
9 314451
PIPE FROM MASTER CYLINDER TO UNIT SECONDARY INLET
Not for GD 		$60.96 1
10 324556
PIPE FROM ECU TO RH FRONT WHEEL SECTION
Applicable for GD 		$57.75 1
10 314453
PIPE FROM UNIT TO RH FRONT WHEEL DISCONNECTER
Not for GD 		$104.28 1
11 324554
PIPE FROM ECU TO RH REAR WHEEL SECTION
Applicable for GD 		$59.35 1
11 314455
PIPE FROM UNIT TO LH REAR WHEEL DISCONNECTER
Not for GD 		$111.79 1
12 287846
PIPE FROM DISCONNECTOR TO RH FRONT WHEEL
Applicable for GD 		$57.33 1
12 275449
PIPE FROM DISCONNECTOR TO RH FRONT WHEEL
Not for GD 		$44.91 1
13 324555
PIPE FROM ECU TO LH REAR WHEEL SECTION
Applicable for GD 		$123.54 1
13 314454
PIPE FROM ECU TO LH REAR WHEEL SECTION
Not for GD 		$55.89 1
14 284624
PIPE FROM SECTION TO LH REAR WHEEL 		$75.95 1
15 284627
PIPE FROM SECTION TO LH REAR WHEEL 		$74.52 1
16 249782
CLIP
Not for GD 		$1.15 2
16 241118
CLIP
5 compartments 		$1.46 10
16 234286
CLIP
4 compartments 		$1.56 2
16 284622
CLIP
3 compartments 		$1.85 2
16 234285
CLIP
2 compartments 		$0.70 9
16 234284
CLIP
1 compartment 		$0.63 2
17 116374
CLIP 		$2.51 (28.3% off) 4
18 262737
RUBBER RETAINER 		$6.56 1
19 317783
YAW SENSOR 		$559.21 1
20 16286124
SCREW
M6 X 20 		$0.37 2
21 296332
BRAKE PIPE MOUNTING BRACKET
Applicable for GD 		$54.54 1
22 248334
SCREW
M6 X 14; Applicable for GD 		$0.68 2
23 291251
CLIP
Applicable for GD 		$0.78 1
24 291250
CLIP
Applicable for GD 		$0.78 1
