Ferrari F12 TDF - FUEL TANK, FUEL SYSTEM PUMPS AND PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
273540 COMPL. INCLINATION SENSOR $2,075.85 To Order
Photo Part No Description Price (each) Stock
282784 FUEL PUMP FILTER $693.20 IN STOCK
Photo Part No Description Price (each) Stock
282785 FUEL PUMP FILTER $1,100.35 IN STOCK
Photo Part No Description Price (each) Stock
239413 O-RING $5.22 IN STOCK
Photo Part No Description Price (each) Stock
275998 FASTENER RING $73.80 To Order
Photo Part No Description Price (each) Stock
272086 FUEL PUMP $1,872.27 IN STOCK
Photo Part No Description Price (each) Stock
272087 LH FUEL PUMP $1,608.80 IN STOCK
Photo Part No Description Price (each) Stock
290771 LOWER CONNECTOR PIPE $420.60 To Order
Photo Part No Description Price (each) Stock
295010 FUEL DELIVERY PIPE, FRONT SECTION $93.05 To Order
295009 FUEL DELIVERY PIPE, FRONT SECTION $93.05 To Order
Photo Part No Description Price (each) Stock
321348 LOW PRESSURE FUEL PIPE $946.70 To Order
318669 LOW PRESSURE FUEL PIPE $561.59 To Order
Photo Part No Description Price (each) Stock
14622387 CAP $2.95 IN STOCK
Photo Part No Description Price (each) Stock
235682 PIPE CLIP $0.68 To Order
Photo Part No Description Price (each) Stock
320600 CLIP $2.27 To Order
Photo Part No Description Price (each) Stock
177553 CLAMP $0.44 To Order
Photo Part No Description Price (each) Stock
281180 REAR FUEL DELIVERY PIPE $304.86 To Order
Photo Part No Description Price (each) Stock
277364 FUEL DELIVERY PIPE, CENTRE SECTION $32.08 To Order
Photo Part No Description Price (each) Stock
276001 FASTENER RING $257.76 To Order
Photo Part No Description Price (each) Stock
275314 O-RING $7.05 IN STOCK
Photo Part No Description Price (each) Stock
237407 ANTI SPIT-BACK VALVE $33.68 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 IN STOCK
Photo Part No Description Price (each) Stock
281598 COLLAR $2.95 To Order
Photo Part No Description Price (each) Stock
178772 SPACER STUD $10.10 To Order
Photo Part No Description Price (each) Stock
277360 HEAT SHIELD $78.61 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.57 IN STOCK
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.57 IN STOCK
Photo Part No Description Price (each) Stock
286193 FUEL PIPE FASTENER BRACKET $21.74 To Order
Photo Part No Description Price (each) Stock
238688 CONNECTOR $54.54 To Order
Photo Part No Description Price (each) Stock
290800 CONNECTOR PIPE MOUNTING BRACKET $67.38 To Order
Photo Part No Description Price (each) Stock
263230 CLIP $1.38 To Order
Photo Part No Description Price (each) Stock
286534 PIPE MOUNTING BRACKET $5.49 To Order
Photo Part No Description Price (each) Stock
259508 CLIP $0.65 IN STOCK
Photo Part No Description Price (each) Stock
290424 BRACKET WITH SHEATH $11.70 To Order
10441290 BRACKET WITH SHEATH $0.57 IN STOCK
Photo Part No Description Price (each) Stock
81911600 SCREW $0.47 To Order
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
67190200 BRACKET WITH SHEATH $2.54 To Order
Photo Part No Description Price (each) Stock
288623 COMPL. TANK $8,491.52 To Order
Photo Part No Description Price (each) Stock
277365 FUEL TANK ANTI-VIBRATION PAD KIT $1,331.80 To Order
Photo Part No Description Price (each) Stock
10815787 CLAMP $0.15 IN STOCK
Photo Part No Description Price (each) Stock
179318 SPACER $2.27 To Order
Photo Part No Description Price (each) Stock
10519424 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
296614 BRACKET WITH SHEATH $27.26 To Order
View All

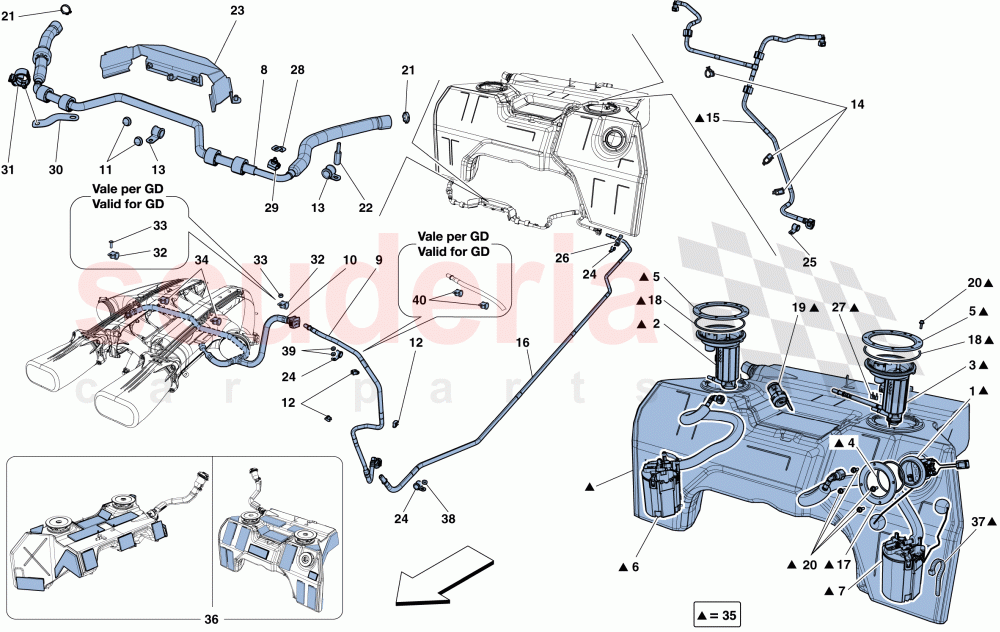

FUEL TANK, FUEL SYSTEM PUMPS AND PIPES of Ferrari Ferrari F12 TDF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 273540
COMPL. INCLINATION SENSOR 		$2,075.85 (39.8% off) 1
2 282784
FUEL PUMP FILTER
IN STOCK 		$693.20 1
3 282785
FUEL PUMP FILTER
IN STOCK 		$1,100.35 1
4 239413
O-RING
IN STOCK 		$5.22 (63.3% off) 1
5 275998
FASTENER RING 		$73.80 2
6 272086
FUEL PUMP
IN STOCK 		$1,872.27 1
7 272087
LH FUEL PUMP
IN STOCK 		$1,608.80 1
8 290771
LOWER CONNECTOR PIPE 		$420.60 1
9 295010
FUEL DELIVERY PIPE, FRONT SECTION
Applicable for GD 		$93.05 1
9 295009
FUEL DELIVERY PIPE, FRONT SECTION
Not for GD 		$93.05 1
10 321348
LOW PRESSURE FUEL PIPE
Applicable for GD 		$946.70 1
10 318669
LOW PRESSURE FUEL PIPE
Not for GD 		$561.59 1
11 14622387
CAP
IN STOCK 		$2.95 2
12 235682
PIPE CLIP
x2 for GD 		$0.68 3
13 320600
CLIP 		$2.27 2
14 177553
CLAMP 		$0.44 (64.8% off) 3
15 281180
REAR FUEL DELIVERY PIPE 		$304.86 1
16 277364
FUEL DELIVERY PIPE, CENTRE SECTION 		$32.08 1
17 276001
FASTENER RING 		$257.76 1
18 275314
O-RING
IN STOCK 		$7.05 (7.8% off) 2
19 237407
ANTI SPIT-BACK VALVE 		$33.68 1
20 85833900
SCREW
M5 X 16
IN STOCK 		$0.36 20
21 281598
COLLAR 		$2.95 2
22 178772
SPACER STUD 		$10.10 1
23 277360
HEAT SHIELD 		$78.61 1
24 10441290
BRACKET WITH SHEATH
D. 10
IN STOCK 		$0.57 (66.1% off) 3
25 10441290
BRACKET WITH SHEATH
IN STOCK 		$0.57 (66.1% off) 1
26 286193
FUEL PIPE FASTENER BRACKET 		$21.74 1
27 238688
CONNECTOR 		$54.54 2
28 290800
CONNECTOR PIPE MOUNTING BRACKET 		$67.38 1
29 263230
CLIP 		$1.38 1
30 286534
PIPE MOUNTING BRACKET 		$5.49 1
31 259508
CLIP
IN STOCK 		$0.65 1
32 290424
BRACKET WITH SHEATH
Applicable for GD 		$11.70 1
32 10441290
BRACKET WITH SHEATH
Not for GD
IN STOCK 		$0.57 (66.1% off) 1
33 81911600
SCREW
M6 X 1 X 18; Applicable for GD 		$0.47 1
33 14059290
FLANGED NUT M6
Not for GD
IN STOCK 		$1.43 1
34 67190200
BRACKET WITH SHEATH 		$2.54 2
35 288623
COMPL. TANK 		$8,491.52 1
36 277365
FUEL TANK ANTI-VIBRATION PAD KIT 		$1,331.80 1
37 10815787
CLAMP
IN STOCK 		$0.15 1
38 179318
SPACER 		$2.27 1
39 10519424
WASHER
IN STOCK 		$0.02 (92% off) 2
40 296614
BRACKET WITH SHEATH
Applicable for GD 		$27.26 2
